Installing and Replacing Desktop Board Components
49
Connecting Chassis Fan and Power Supply
Cables
Chassis Fan Cables
Connect chassis fan cables to the 3-pin and 4-pin chassis fan headers on the Desktop
Board. Figure 25 shows the location of the
chassis fan headers.

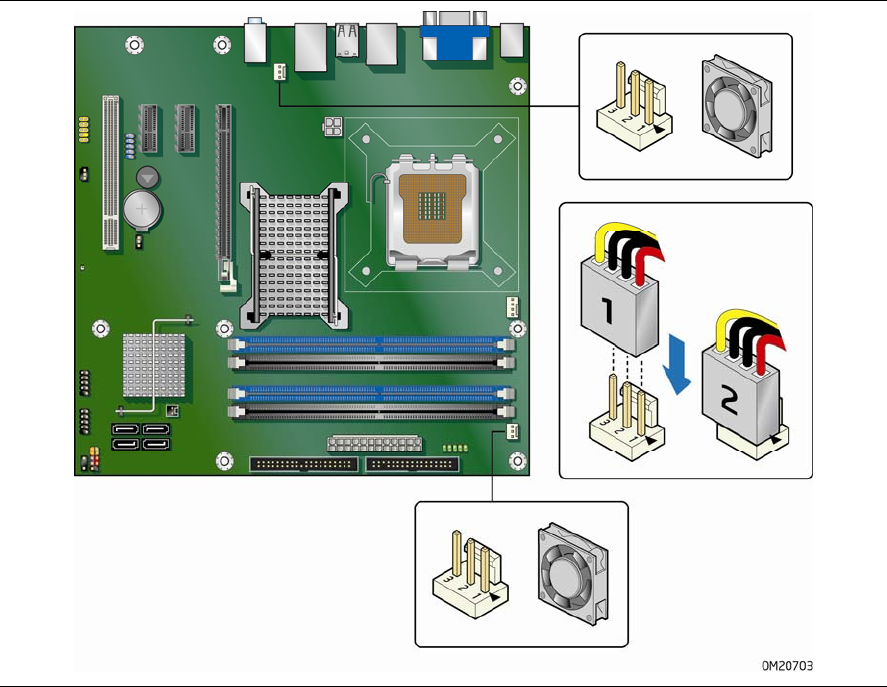

Figure 25. Location of the Chassis Fan Headers
