Intel Desktop Board DH61BE Technical Product Specification
54
2.4 Intel
®
Management Engine BIOS Extension
(Intel
®
MEBX) Reset Header
The Intel
®
MEBX reset header (see Figure 14) allows you to reset the Intel AMT
configuration to the factory defaults. Momentarily shorting pins 1 and 2 with a jumper
(not supplied) will accomplish the following:
• Return all Intel ME parameters to their default values.
• Delete any user entered information, including PID/PPS and user entered Hash
Certificates. USB key and remote configuration data will be removed if the
parameters are not default parameters.
• Reset the Intel MEBX password to the default value (admin).

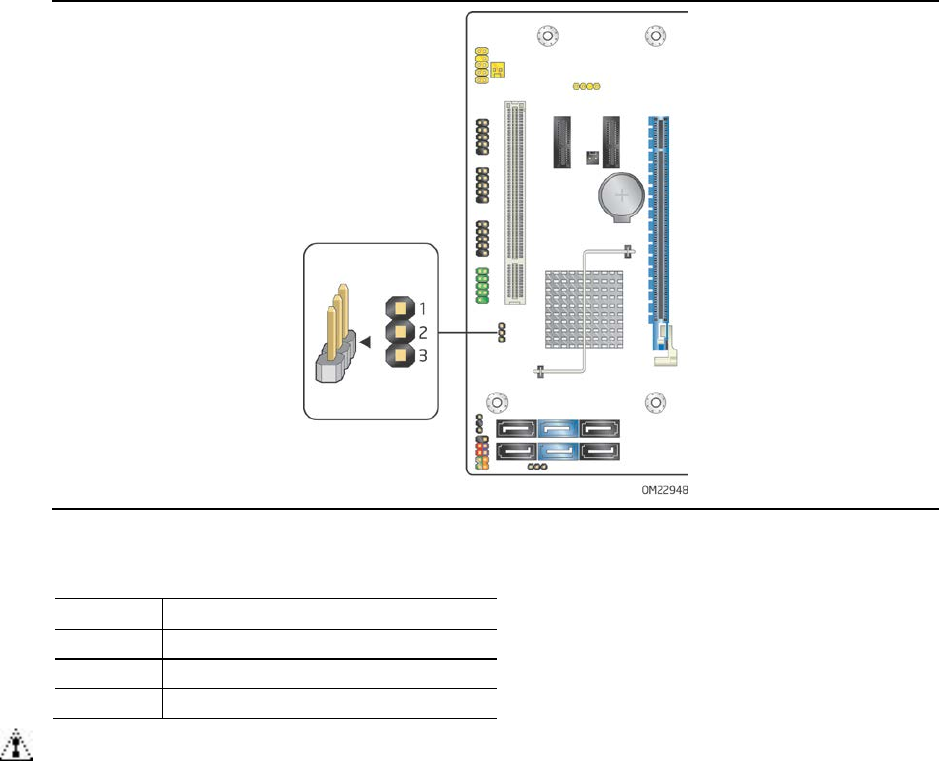

Figure 14. Intel MEBX Reset Header
Table 28. Intel MEBX Reset Header Signals
Pin Function
1 PCH.AK24 (PCH_RTCRST_PULLUP)
2 Ground
3 No connection
CAUTION
Always turn off the power and unplug the power cord from the computer before
installing an MEBX jumper. The jumper must be removed before reapplying power.
The system must be allowed to reach end of the POST before reset is complete.
Otherwise, the board could be damaged.
