05UF&6)T,-(:,&H,),%#*;()&V%,W";%,>&69:#)$,%X&

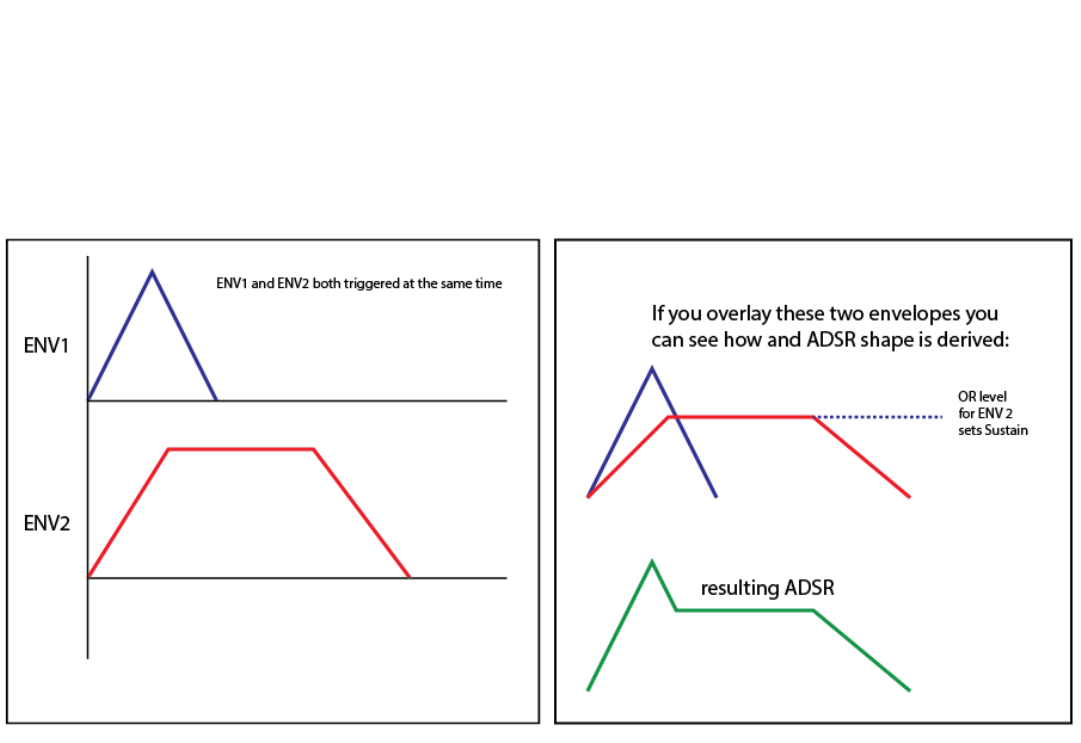

By using the OR output of the expander and triggering two function generators with the same gate signal an ADSR
Envelope can be achieved. To do this use either OR output 1+2 or 3+4 on the expander. Send the same gate signal to the
two function generators used. For example if using OR 1+2 Output send the gate signal to FG 1 and 2. Set FG 1 to AD
mode and set FG 2 to ASR mode. When you layer them via the OR output you will get a ADSR envelope and you can use
the OR level to control the Sustain level. Attack will be the OR of FG 1 and 2 Attack, Decay will FG 1 Decay and release will
be FG 2 Decay.
& &
