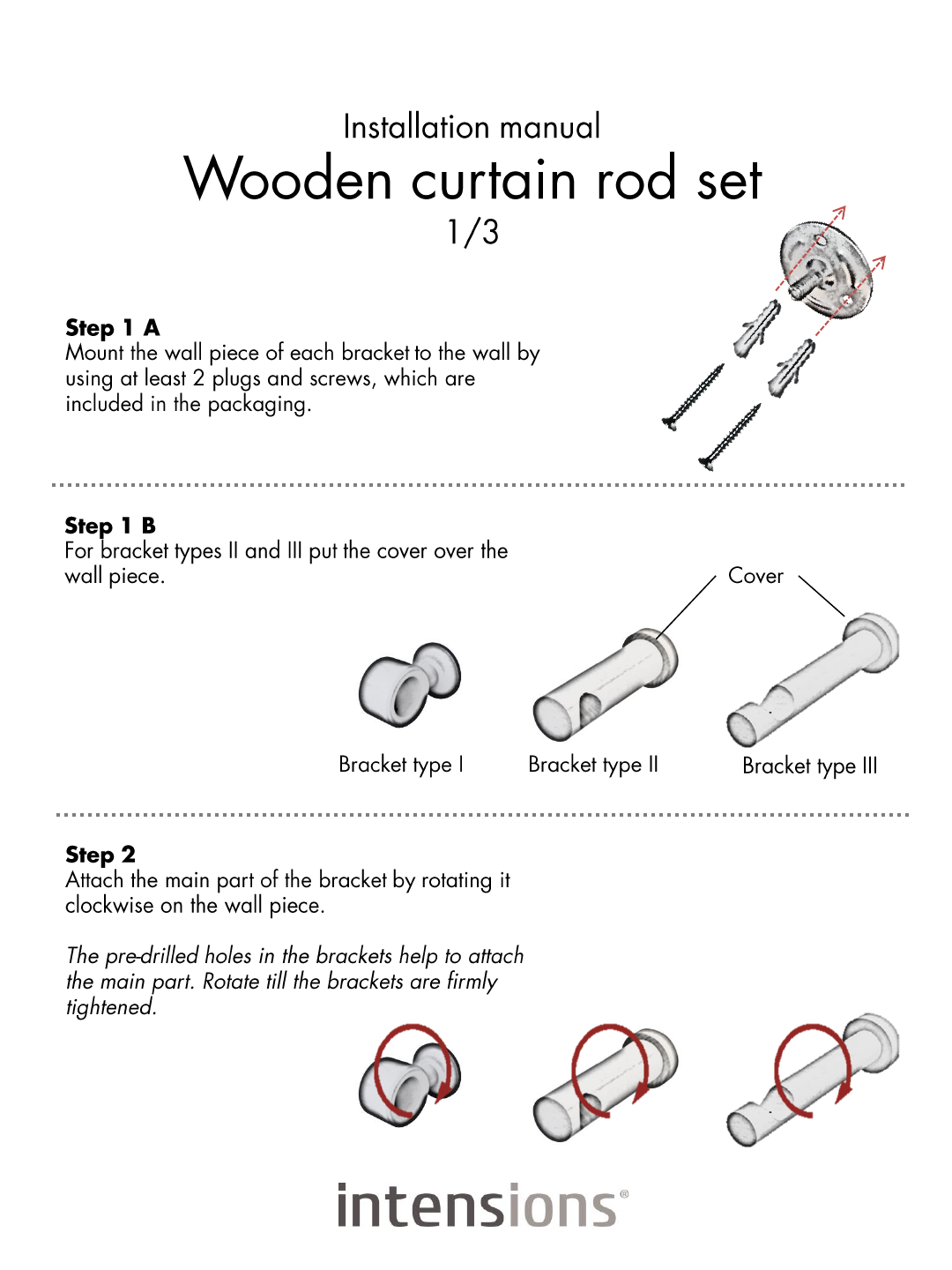

Installation manual Wooden curtain rod set 1/3 Step 1 A % Mount the wall piece of each bracket o the wall by . using ot least 2 plugs and screws, which are 5/1/ included in the packaging. / Step 1 B For bracket types 1l and IIl put the cover over the wall piece. Bracket type | Bracket type Il Step 2 Attach the main part of the bracket by rotating it clockwise on the wall piece. The predefined holes in the brackets help fo attach the main part. Rotate Hll the brackets are firmly frightened.
Installation manual Wooden curtain rod set 2/3 Step 3 Attach the rad(including the curtain) ond fixate the brackets by attached the screws from the not visible side of the bracket. Screws are included in the packaging.
Installation manual Wooden curtain rod set 3/3 Step 4 A The first type of finials are just put on the end sides of the rod and just should be pushed o but to be fixed. Step 4 B The second type of finials are attached to the end sides of the rod by using a sided screw. Put 1 side of the screw in the per-drilled hole in the finial and the other side in the per-drilled hole in the pole. Now rotate the finial clockwise 1o the rod. If you struggle to get the screw into the wood, make a start by using a tang.
