ET1700 Series

7-Day Electronic Time Switch

The ET1700 Series 7-Day Electronic Time Switches feature

independent 7-day programming to provide exibility for applications

where load switching differs each day of the week. These time switches

provide dependable and uncomplicated performance, plus

to-the-minute programming for accurate load control and reduced

energy costs. Up to 28 setpoints or events can be preset to

automatically repeat. The program can be disabled at any time by

placing the time switch in the Manual operating mode. Control buttons

provide manual control of each circuit independently regardless of the

operating mode. All models contain industrial-grade AAA alkaline

batteries to provide time keeping and automatic carryover for a minimum

of three years. The batteries are easily replaceable and do not require

removing the time switch mechanism or eld wiring. Each time switch is

housed in a lockable enclosure to protect against vandalism and

unauthorized tampering.

Features

• Program can be repeated on a weekly basis

• Multi-volt operation from 120-277 VAC, 50/60 Hz

• To-the-minute programming for accurate load control and reduced

energy costs

• Up to 28 setpoints

• Automatic Daylight Saving Time (DST) ON/OFF adjustment

(factory enabled)

• Non-volatile EEPROM memory protects programming indenitely

• Temporary override or permanent manual override available via control

buttons

• 2-circuit models are eld (jumper) congurable for:

2 independent outputs, DPST output,

or 1 channel ON pulse/OFF pulse output

Ratings

Enclosure Options: Standard: Type 1 Gray Painted Steel

R-Option: Type 3R Gray Painted Steel

PD82 Option:Type 3R Gray High-Impact

UV Resistant Polycarbonate Plastic with

Clear Cover

Knockouts: Combination ½” & ¾” knockouts

Bottom: 2, Left: 1, Right: 1, Back: 1

Frequency: 120, 208, 240, 277 VAC 50/60 Hz

Operating Temperature: -40°F to 155°F (-40°C to 68°C)

ET1705, ET1725 Models

N.O. Contact Ratings: Resistive: 30 Amps @ 120/240 VAC

Resistive: 20 Amps @ 28 VDC

Inductive: 30 Amps @ 120/240 VAC

Tungsten: 5 Amps @ 120/240 VAC

Ballast: 20 Amps @ 120-277 VAC

Motor: 1 HP @ 120 VAC

Motor: 2 HP @ 240 VAC

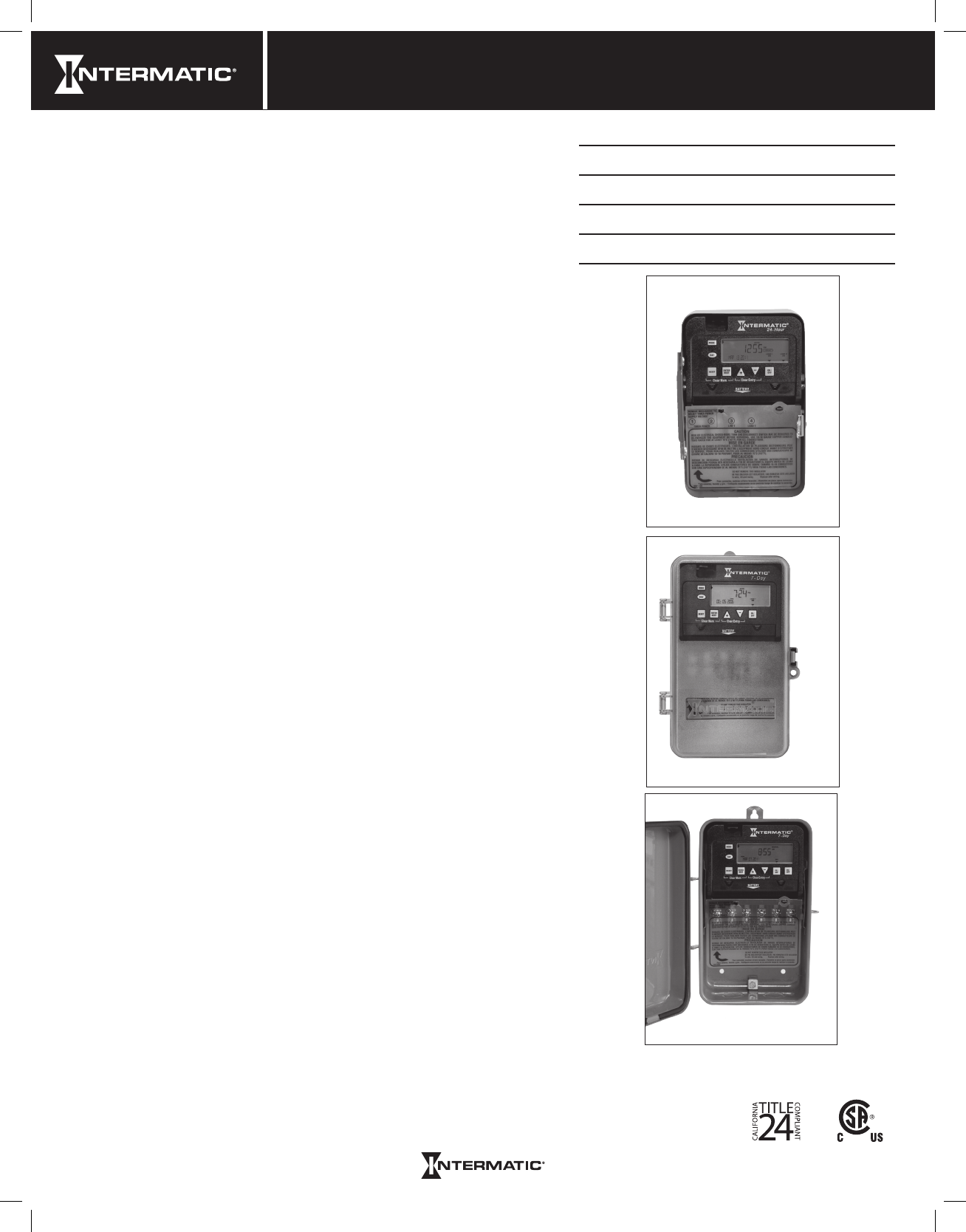

Electronic Time Switches

ET7115CPD82

ET1725CR

ET1705C
