Instruction Manual

20 memories time switches

Summary of content (20 pages)

PAGE 1

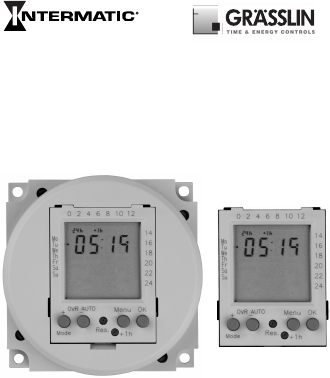

Instruction Manual 20 memories time switches
PAGE 2
PAGE 3
1 page Safety precautions ..................................................................... 2 Program structure ...................................................................... 3 OK reset Symbols, keys ............................................................................. 5 Menu Prog Setting the timer ........................................................................ 6 Setting 24h or am/pm clock, time and weekday .....................7 Prog.
PAGE 4
2 Safety precautions · The connection and installation of electrical devices may only be carried out by a qualified electrician. · Interventions in and changes to the device result in the voiding of the warranty claim. · Observe your national regulations and the respective safety provisions. · Switch-off commands have priority over switch-on commands.
PAGE 5
3 Press Reset Button First installation setting Review/adjust Menu Set time: Format 24h or am/pm 24h blinking, using +/- to select, then OK Set time: Hour Hour blinking, using +/- to select, then OK Set time: Minute Minute blinking, using +/- to select, then OK Set time: Day Monday blinking, using +/- to select, then OK Set Program: P01 / P02 / P03 or P-Using +/- to select, then OK to set ON/OFF times or press Menu to terminate programming Menu Note: P01-03 are pre-set OK P01-03, P-Set switching times
PAGE 6
4 Set switching ON time: Hour Hour blinking, using +/- to select, then OK Set switching ON time: Minute Minutes blinking, using +/- to select, then OK Set switching ON time: Days Mo-Su blinking, using +/- to select, then OK Set switching OFF time: Hour Hour blinking, using +/- to select, then OK Set switching OFF time: Minute Minutes blinking, using +/- to select, then OK/Menu A maximum of 20 memory locations can be occupied 10 switching ON times 10 switching OFF times Menu RUN
PAGE 7
OK 5 reset : Overview of daily switching program : Setting of 24h or am/pm : Summer/winter clock changes : Weekday display : Switching status display ON/OFF 14 16 Mo Tu We Th Fr Sa Su 18 20 22 24 + OVR AUTO - Menu OK Res. +1h +/Res. Menu OK : Adjustment keys: By pressing the key longer than 2 sec.
PAGE 8
Menu 6 Prog Setting of this programmable timer is depending of the user preference to use pre-set programs or defining own programming. Using Pre-set programs (first time installation) OVR-AUTO Menu OK + Mode Res. +1h Using Reset key you can adjust the following values: 24h or am/pm: see pg 6 Time (hour and minutes): see pg 6 Week day: see pg 7 Pre-set programs P01 to P03: see pg 7 User defined programming by Menu mode +OVR- AUTO Menu OK Mode Res.
PAGE 9
7 Sequence to follow after selecting programming by pre-set programs or Menu mode. Set display format 24h or am/pm 14 Mo Tu We Th Fr Sa Su 16 1 1 2 18 OVR-AUTO Menu OK 20 + 22 Mode Res. +1h 24 Select 24h or am/pm (+/- ) and con firm with OK. Set hour 14 Mo Tu We Th Fr Sa Su 16 1 1 2 18 20 22 24 OVR-AUTO Menu OK + Mode Res. +1h Select hour (+/- ) and confirm with OK.
PAGE 10
8 Set minutes 14 Mo Tu We Th Fr Sa Su 16 1 1 2 18 OVR-AUTO Menu OK + 20 22 Mode Res. +1h 24 Select minutes (+/- ) and confirm with OK. Set week day 14 Mo Tu We Th Fr Sa Su 16 1 1 2 18 20 22 24 OVR-AUTO Menu OK + Mode Res. +1h Select week day (+/- ) and confirm with OK.
PAGE 11
Prog. 9 P01: Mo - Su, 1 x ON/OFF ON 0 6 22 24 P01: Mo - Su, 2 x ON/OFF ON 0 7 12 14 24 20 P01: Mo - Su, 3 x ON/OFF ON 0 7 12 14 1 8 20 22 24 Programs P01-03 The switching on and off times for programs P01 to P03 are preset (pre). The user can change these programs. Individual program, P-Under the menu option P-- you have the option of creating a user-defined program. This program can be changed at any time. There are up to 20 memory locations available for 10 OFF and 10 ON commands.
PAGE 12
P0x 10 prog Sequence to follow after setting time in the Reset mode. 1 1 14 Mo Tu We Th Fr Sa Su 16 18 20 22 OVR-AUTO Menu OK + Mode Res. +1h Select pre-set program (+/- ). 24 1a 1b 14 Mo Tu We Th Fr Sa Su 16 18 20 22 24 OVR-AUTO Menu OK + Mode Res.
PAGE 13
P-- 11 prog Sequence to follow after setting time and week day while running Menu mode or adding programs to the pre-set P01 to P03. Select program ON 14 Mo Tu We Th Fr Sa Su 1 16 18 OVR-AUTO Menu OK + 20 22 Mode Res. +1h 24 and confirm with OK. Set hour ON 14 Mo Tu We Th Fr Sa Su 16 1 1 2 18 OVR-AUTO Menu OK + 20 22 Mode Res. +1h 24 Select hour (+/- ) and confirm with OK. Set minutes ON 14 Mo Tu We Th Fr Sa Su 16 1 1 2 18 20 22 24 OVR-AUTO Menu OK + Mode Res.
PAGE 14
P-- 12 prog Set week day ON 14 Mo Tu We Th Fr Sa Su 16 1 1 2 18 OVR-AUTO Menu OK 20 + 22 Mode 24 Res. +1h Select week day (+/- ) and confirm with OK.
PAGE 15
P-- 13 prog Set hour OFF 14 Mo Tu We Th Fr Sa Su 16 1 1 2 18 OVR-AUTO Menu OK + 20 22 Res. Mode +1h 24 Select hour (+/- ) and confirm with OK. Set minutes OFF 14 Mo Tu We Th Fr Sa Su 16 1 1 2 18 OVR-AUTO Menu OK + 20 22 Mode 24 Res. +1h Select minutes (+/- ) and confirm with OK. Set week day OFF 14 Mo Tu We Th Fr Sa Su 16 1c 1a 1b 18 20 22 24 OVR-AUTO Menu OK + Mode Res.
PAGE 16
P-- 14 prog Shift Should the OFF command be the following day of ON command then select ''+ ''key then select Menu or OK. Example: Mo-Fr 20:00 p.m. - 03:00 a.m. ON 03:00 a.m. - 20:00 p.m. OFF ON OFF 0 3 Mo-Fr 20:00 p.m. - 03:00 a.m. ON Tu-Sa 03:00 a.m. - 20:00 p.m.
PAGE 17
del 15 1 2 OVR-AUTO Menu OK + Mode Res. +1h Select Menu , then select OK key until getting onto the ON time of the program you want to delete. 1 1 14 Mo Tu We Th Fr Sa Su 16 18 20 22 24 OVR-AUTO Menu OK + Mode Res. +1h Select ''--'' with (+/- ) key and con firm with OK. 2 14 Mo Tu We Th Fr Sa Su OVR-AUTO Menu OK 16 + 18 Mode 20 22 24 Res. +1h Note: Switching programmes are deleted in ON-OFF pairs.
PAGE 18
+1h 16 OVR-AUTO Menu OK + 14 Mo Tu We Th Fr Sa Su Mode Res. +1h 16 18 20 22 24 The +1h key is for the change to daylight savings time. · By pressing the +1h key 1 hour is added to the current time. · +1h is shown on the display. · By pressing +1h again 1 hour is subtracted from the current time.
PAGE 19
17 Mode 14 OVR-AUTO Menu OK + 16 Mo Tu We Th Fr Sa Su 18 20 22 24 OVR AUTO 7 OVR AUTO Mode Res. +1h The ''+ ''key serves to change over between automatic, AUTO to override (OVR) ON and override (OVR) OFF (CH1).
PAGE 20
18 WARRANTY If within one (1) year from the date of purchase, this product fails due to a defect in material or workmanship, Intermatic Incorporated will repair or replace it, at its sole option, free of charge. This warranty is extended to the original household purchaser only and is not transferable.
