Appendix A — Specifications and Default Settings
96 CV61 Vehicle Mount Computer (Windows XP) User Guide
USB Port
5 GND Signal/power ground
6DSRData set ready (input)
7 RTS Request to send (output)
8 CTS Clear to send (input)
9 +5 VDC or RI Bar code scanner power (500 mA max) or
Ring indicator (input)
Shell CGND Chassis ground
Pin Signal Description

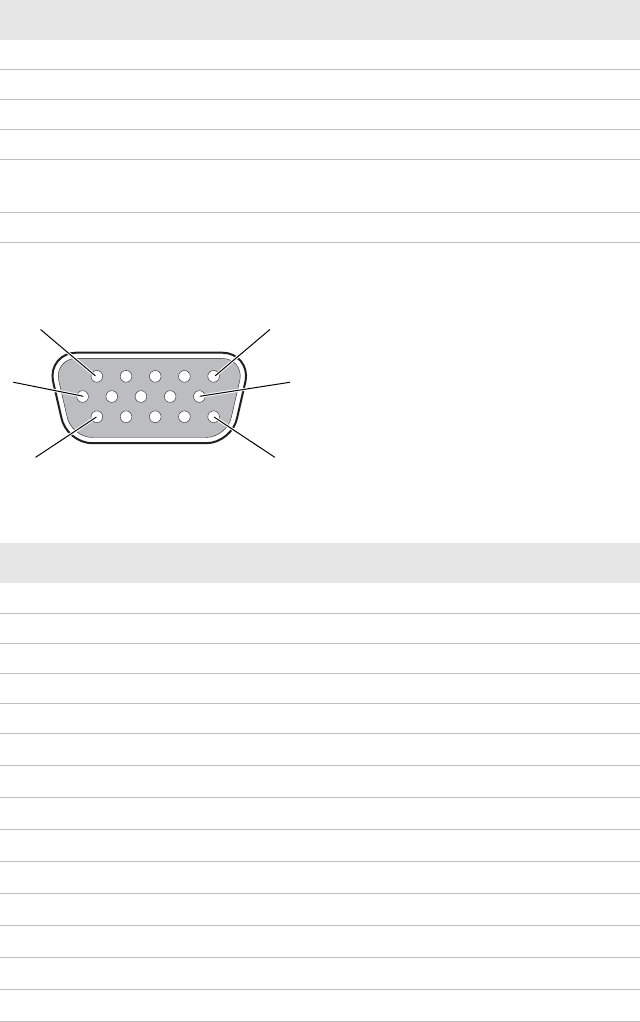

USB Port
Pin Signal Description
1-
2-
3-
4-
5-
6 USB1_D-
USB client data signal
7 USB1_D+
USB client data signal
8 USB1_VBUS
USB host 1 (5 V output power)
9GND
Common ground
10 GND11USB2_VBUS
USB host 2 (5 V output power)
11 GND
Common ground
12 USB2_D-
USB client data signal
13 USB2_D+
USB client data signal
14 GND
Common ground
1
11
10
5
15
6
