Quick Install Guide IQeye Alliance™ Series Pendant Mount Kit 1
This Quick Install Guide covers both the Alliance-pro and Alliance-mx dome camera Pendant Mounts. 1 Service If the unit needs repair service or parts, the customer should contact IQinVision for authorization to return, as well as shipping instructions. IQinVision 33122 Valle Road San Juan Capistrano, CA 92675-4853 Phone: +1-949-369-8100 or 1-877-850-0805 (toll-free in U.S.) Fax: +1-949-369-8105 2 Unpacking IQA-PND (Figure 2.1) Your IQeye Alliance-pro Pendant Mount Kit should include the following: 1.

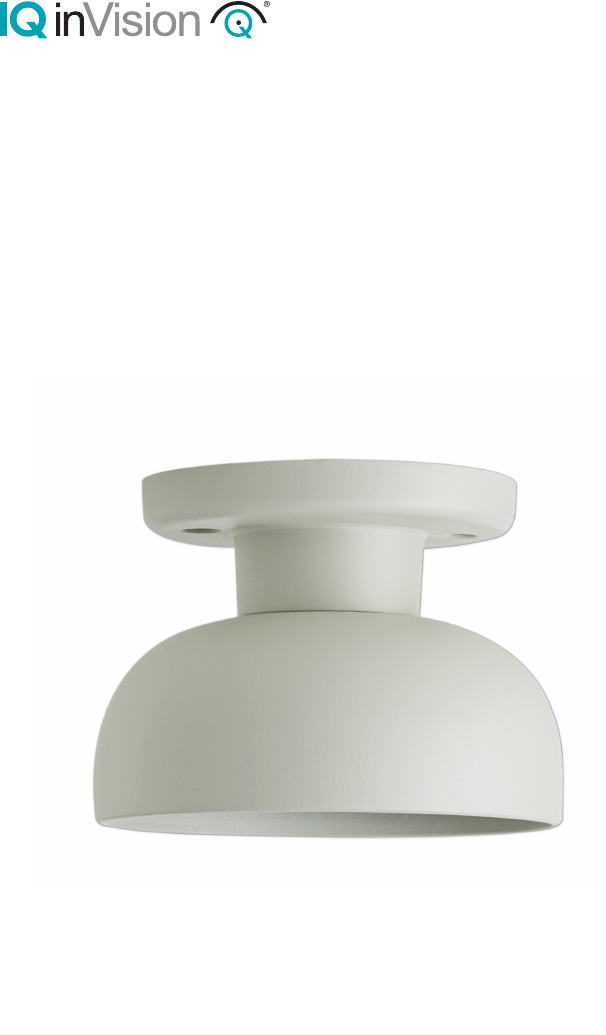

Description IQA-PND Alliance-pro Pendant Mount Kit The Alliance Pendant Mount allows indoor or outdoor installation of an Alliance-pro dome camera on a ceiling surface and allows the dome to be oriented toward the ground. The Alliance Pendant Mount will work with both the indoor and outdoor versions of the Alliancepro dome camera. The included Adapter Box (Figure 3.1) allows the Alliance-pro to be properly mounted into the Pendant Mount Kit.
c. Feed the cables into the Adapter Box through the rubber Heyco hole plug on the rear of the box. C. Attaching the Adapter Box to the Pendant Mount: a. Reattach the Adapter Box to the Pendant Mount using the same (4) screws removed during disassembly. b. Go to the “Connecting the Camera and Finalizing Installation” section of this installation guide. Alliance-mx Pendant Mount Installation A. The Alliance Pendant Mount is designed for installation indoors or outdoors. B.
Alliance-mx A. Make any cabling connections between the ceiling side and the Alliance-mx camera. B. Rotate the black shroud inside the dome trim ring cover so it aligns with the camera position. C. Place the supplied desiccant pack inside the dome to prevent fogging due to moisture that is present when installing the camera. Use the supplied cable tie to keep the desiccant from falling down into the dome bubble. Refer to the Alliancemx Installation and Operating Instructions for additional details. D.
NOTES: 6
