Dimensions Guide

Technical Specications www.jacuzzi.com QB64000
Abri™ 6036 Air Bath Bathtub

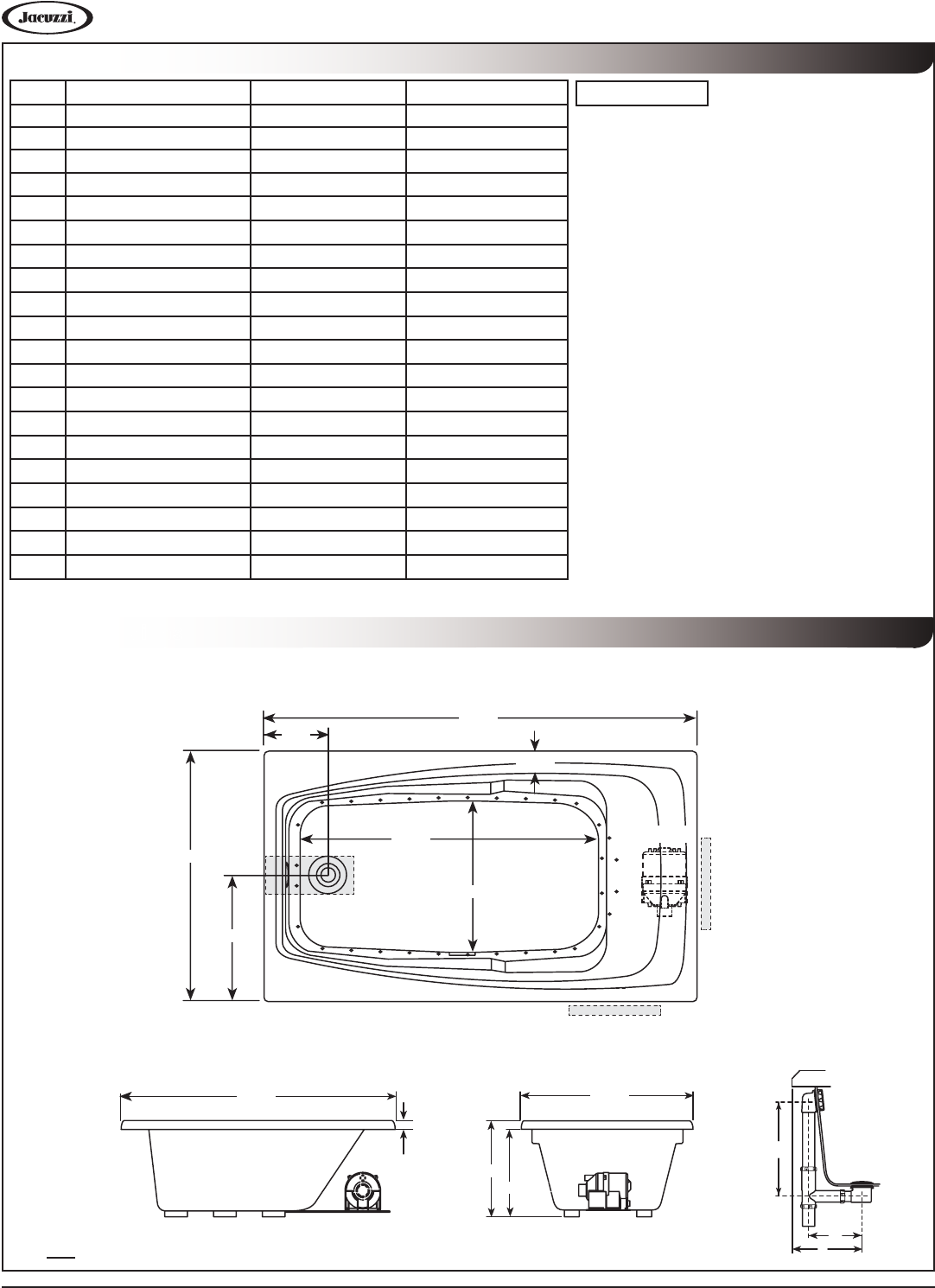

Key Dimensions
NOTE
The overall dimensions are nominal with a tolerance of +0 and -.25” (6mm).
Electrical Specications
(Each component requires a separate, dedicated GFCI protected circuit)
Blower 120V 15A 60HZ
Letter Description English Metric
-
Drain Location Left / Right Hand Left / Right Hand
-
Blower Location Opposite end of drain Opposite end of drain
-
Cutout 58.00" x 34.00" 1473 mm x 864 mm
-
Total Weight 935 lbs 425 kg
-
Floor Loading 62.3 lb/ft
2
305 kg/ m
2
-
Operating Gallons (Min/Max) 38 Gal / 67 Gal 144 L / 253 L
-
Product Weight 77 lbs 35 kg
L
Outer Length 60.00" 1524 mm
W
Outer Width 36.00" 914 mm
H
Overall Height 21.25" 540 mm
A
Overow Height 18.00" 457 mm
B
Long Edge to Drain Center 9.00" 229 mm
C
Short Edge to Drain Center 18.00" 457 mm
D
Drain Shoe Length 7.50" 191 mm
E
Deck Height 2.00" 51 mm
F
Deck Width 1.25" 32 mm
G
Service Access Dimensions 12.00" x 18.00" 305 mm x 457 mm
I
Floor Cutout for Drain 12.00" x 4.00" 305 mm x 102 mm
J
Interior Dimensions: J(W) x J(L) 22.00" x 41.50" 559 mm x 1054 mm
-
Number of Injectors 34 34
Blower
F
L
W
B
C
I
J(W)
J(L)
D
A
B
NOTE
: Drawings not to scale.
End ViewSide View
19.25"
Blower
Blower
G
PREFERRED
L W
H
E
G
ALTERNATE
Left Side Drain / Right Side Blower shown
Drain/Overow
*Deck width reflects only area indicated on detail.
