Dimensions Guide

English Metric
Outer Dimensions 65 3/4” L x 36” W x 25” H 1670 mm L x 915 mm W x 635 mm H
Interior Dimensions
(bottom of bath) L x W (Mid) x W (End) 36 1/4” L x 22 1/8” W x 22 1/8” W 1070 mm L x 692 mm W x 692 mm W
Drain/Blower Confi guration Center drain/Right end blower Center drain/Right end blower
Bath Weight (empty) 121 lbs 55 kg
Total Weight/Floor Loading 1,021 lbs 62.1 lbs/ft
2
463 kg 303 kg/m
2
Operating Gallonage (min-max) 34 (min) 78 (max) U.S. Gals 121 (min) 295 (max) L
Acero 6636 Pure Air Bath
Material Type: High-Gloss Acrylic
Install Type: Drop-in or Undermount
Available Colors: White (W), Almond (A), Oyster (Y), Black (B)
Cut-out: 64” x 34” or Undermount Template HQ06000
Standard (Included) Features:
Chromatherapy lighting, 800w blower,
bottom and side air channels
Available Control Systems:
J4 Luxury Control Panel (standard)
J5 Luxury LCD Control Panel
© 2010 Jacuzzi Luxury Bath • For additional information call Customer Service 800-288-4002 • www.jacuzzi.com/technicalspecs
HC37000 REL 03/10
Refer to installation instructions included with fi xture before beginning installation. Please confi rm product availability and specifi cations before commencing with any installation work.
PRODUCT SPECIFICATIONS AND AVAILABILITY ARE SUBJECT TO CHANGE WITHOUT NOTICE.
Electrical Specifi cations Each component requires a separate, dedicated GCFI protected circuit(s)
Blower 120V 15A 60HZ
Chromatherapy (if selected) 120V 15A 60HZ
Available Upgrades:
900w blower (with J5 LCD Control Panel)
Available Accessories:
HP55 Rotary Drain Kit (specify metal fi nish)
DA34 Rotary Drain Kit PVC (specify metal fi nish)
827: Chrome, 826: Brushed Nickel, 845: Oil Rubbed Bronze
EK91 21” Straight Pillow (specify color)
C262 Straight Pillow 15” X 5” (specify color) 959: White, 958: Almond,
969: Oyster
GQ88 Light Chromatherapy Add-on Kit
NOTE: Graphics May Not be to Scale
Product Codes beginning with: ACE6636ACR
Also applies to products sold under part numbers: HS10, HS30

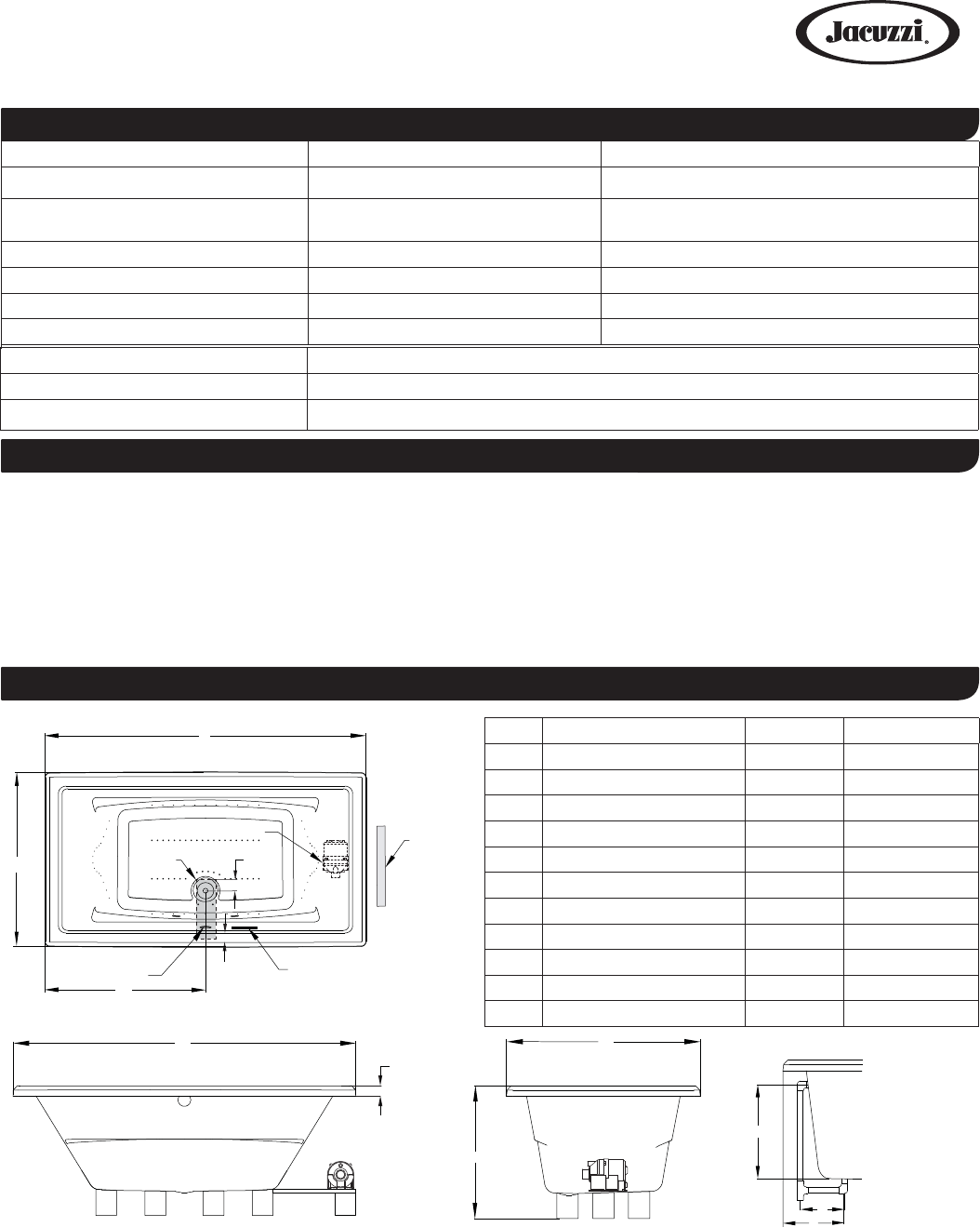

KEY DIMENSIONS
FEATURES, UPGRADES & ACCESSORIES
TECHNICAL SPECIFICATIONS
*Deck width refl ects only area indicated on detail.
Letter Description English Metric
L Outer Length 65 3/4” 1670 mm
W Outer Width 36” 915 mm
H Overall Height 25” 635 mm
A Overfl ow Height 17 7/8” 454 mm
B Long Edge to Drain Center 11 15/16” 303 mm
C Short Edge to Drain Center 33” 838 mm
D Drain Shoe Length 7 7/8” 200 mm
E Deck Height 2” 51 mm
F Deck Width* 4” 102 mm
G Service Access Dimensions 12” H x 18” L 305 mm x 457 mm
I Floor Cut-out for Drain 12” x 4” 305 mm x 102 mm
Side View
End View
Drain/Overfl ow
(G) Service
Access
Blower
3”
I
F
Control Panel
L
Overfl ow
W
C
(Blower)
H
W
(Blower)
L
E
A
D
B
