Use and Care Guide

English Metric
Outer Dimensions 71 3/4” L x 59 3/4” W x 24” H 1822 mm L x 1518 mm W x 610 mm H
Interior Dimensions
(bottom of bath) L x W (Mid) x W (End) 49 1/2” L x 42” W x 42” W 1257 mm L x 1067 mm W x 1067 mm W
Drain/Pump Confi guration Center drain, Left and right pumps Center drain, Left and right pumps
Bath Weight (empty) 242 lbs 110 kg
Total Weight/Floor Loading 1,825 lbs 61.3 lbs/ft
2
829 kg 299.1 kg/m
2
Operating Gallonage (min-max) 110 (min) 148 (max) U.S. Gals 417 (min) 560 (max) L
Fuzion 7260 Dual Whirlpool
Material Type: High-Gloss Acrylic
Install Type: Drop-in with wood frame or Undermount
Available Colors: White (W), Almond (A), Oyster (Y), Black (B)
Cut-out: 70” x 58” or Undermount Template DD44000
Standard (Included) Features:
23 jets, In-line Heater, Chromatherapy lighting, infi nity edge overfl ow, 2
neck massaging waterfalls, 2 pillows, chrome twist and turn drain (for
alternate fi nishes, replace with standard parts, 1.5” drain elbow)
Available Control Systems:
J4 Luxury Control Panel (standard)
J5 Luxury LCD Control Panel
Available Upgrades:
Whisper Quiet Technology,
Illumatherapy Lighting
Available Accessories:
HB76 Optional wood frame (specify fi nish) 900: Unfi nished, 935: Wenge,
936: Teak
© 2010 Jacuzzi Luxury Bath • For additional information call Customer Service 800-288-4002 • www.jacuzzi.com/technicalspecs
HD44000 REL 03/10
*Deck width refl ects only area indicated on detail.
Refer to installation instructions included with fi xture before beginning installation. Please confi rm product availability and specifi cations before commencing with any installation work.
PRODUCT SPECIFICATIONS AND AVAILABILITY ARE SUBJECT TO CHANGE WITHOUT NOTICE.
Electrical Specifi cations Each component requires a separate, dedicated GCFI protected circuit(s)
Motor/Pump 120V 20A 60HZ
Heater 120V 15A 60HZ
D095 TheraPro Jet Trim Kit (specify metal fi nish)
P556 AccuPro Jet Trim Kit (specify metal fi nish)
827: Chrome, 826: Brushed Nickel, 845: Oil Rubbed Bronze
*Note: D095 (Chrome) is standard on Illumatherapy jets.
GQ88 Light Chromatherapy Add-on Kit
DD50 Replacement Pillow (specify color) 959: White, 958: Almond,
969: Oyster
*Faucet installation note:
Selecting a faucet for rim mounting: The combined thickness at the rim
of the bathtub shell and optional wood deck is 2” (50 mm) nominal. The
length of the faucet tailpiece(s) must be long enough to extend past this
dimension and have ample clearance to assemble any hardware (i.e.
locknut, water supply fi ttings, etc.) necessary for installation. For under-
mount units, the combined thickness of the bathtub shell is 1/2” (12 mm)
nomial and the undermount deck should not exceed the length of the
faucet tailpiece(s), including any assembly hardware.
NOTE: Graphics May Not be to Scale
Product Codes beginning with: FUZ7260WCD
Also applies to products sold under part numbers: EG70, KQ15, EG85, KQ25, KQ30, KQ35, KQ35, KQ40, KQ45

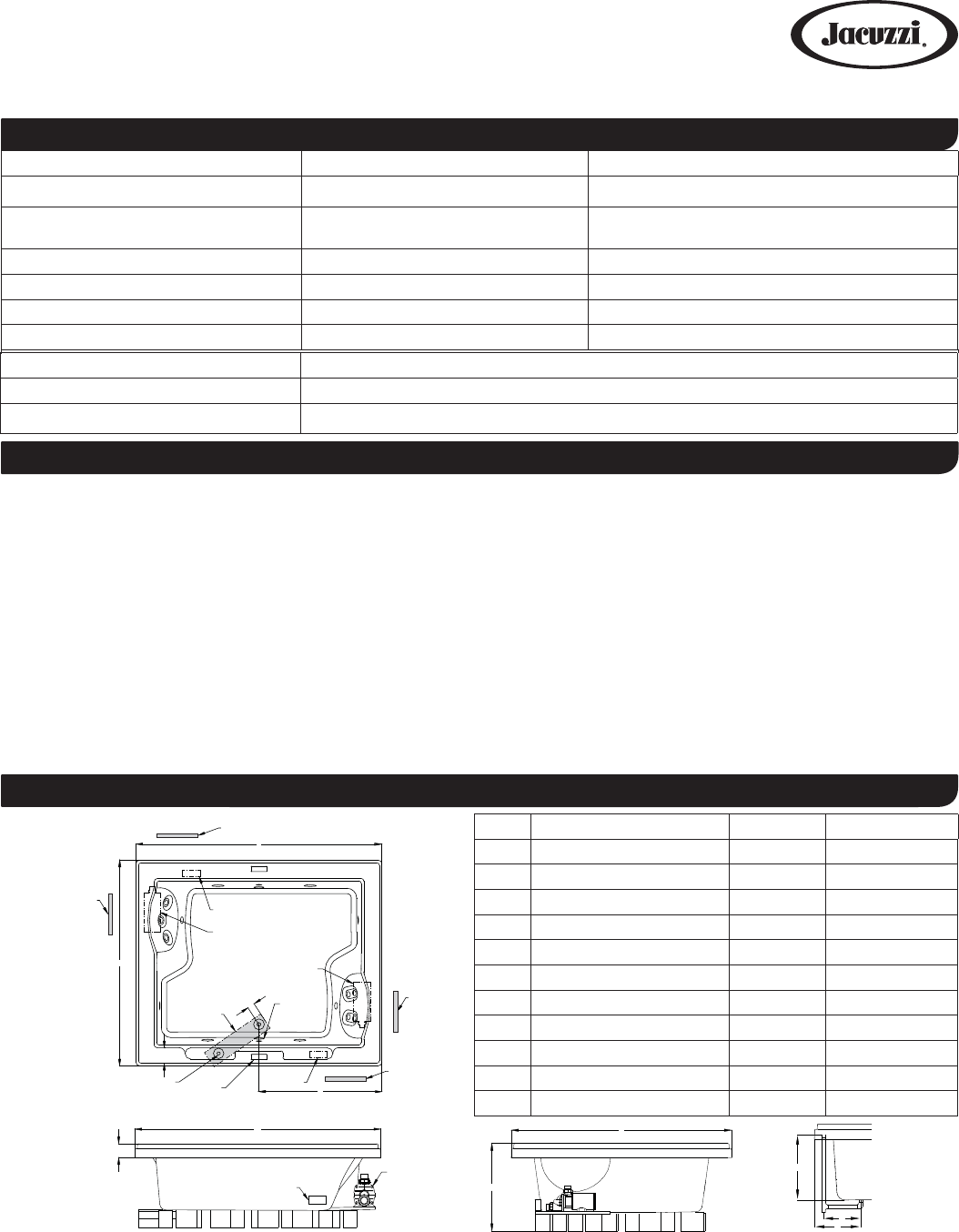

KEY DIMENSIONS
FEATURES, UPGRADES & ACCESSORIES
TECHNICAL SPECIFICATIONS
Drain/Overfl ow
Side View
End View
Letter Description English Metric
L Outer Length 71 3/4” 1822 mm
W Outer Width 59 3/4” 1518 mm
H Overall Height** 24” 610 mm
A Overfl ow Height 16 3/4” 425 mm
B Long Edge to Drain Center 12 1/16” 306 mm
C Short Edge to Drain Center 36” 915 mm
D Drain Shoe Length 8 1/2” 216 mm
E Deck Height** 4” 102 mm
F Deck Width* 3 1/2” 89 mm
G Service Access Dimensions 12” H x 18” L 305 mm x 457 mm
I Floor Cut-out for Drain 18 1/2” x 4” 470 mm x 102 mm
(Heater)
(Motor)
W
E
(Motor)
(Heater)
H
L
A
D
B
W
C
L
(G) Primary
Service Access
(G) Secondary
Service Access
Heater
Motor
Motor
Heater
Suction
Fitting
3”
I
F
(G) Primary
Service
Access
(G) Secondary
Service Access
Control
Overfl ow
Panel
**Height of tub only, optional wood frame adds 1.25”
Note: Drain included. Non-standard
installation, refer to manual.
