Dimensions Guide

Lyndsay™ Freestanding Bathtub Specications
KEY DIMENSIONS
Letter Description Soaking
5931 6731
- Drain Location Center Drain Center Drain
- Pump Location N/A N/A
- Cutout Template N/A N/A
- Total Weight 882 lbs (400 kg) 999 lbs (453 kg)
- Floor Loading 68 lb/ft
2
(332 kg/m
2
) 68 lb/ft
2
(332 kg/m
2
)
- Operating Gallons (Max.) 65 gal (246 Liters) 77 gal. (291 Liters)
- Product Weight (Empty) 92 lbs (42 kg) 110 lbs (50 kg)
- Soaking Depth 15.3" (389mm) 15.8" (402mm)
L Outer Length 59.0" (1499mm) 67.0" (1702mm)
W Outer Width 31.5" (800mm) 31.5" (800mm)
H Overall Height 24.0" (610mm) 24.0" (610mm)
A Overow Height 15.5" (394mm) 16.0" (406mm)
B Long Edge to Drain Center 15.8" (401mm) 15.8" (401mm)
C Short Edge to Drain Center 29.5" (749mm) 33.5" (851mm)
D Drain Shoe Length N/A N/A
E Flange Height N/A N/A
F Deck Width* 1.0" (25mm) 1.0" (25mm)
G Service Access Dimensions No Service Access No Service Access
I Floor Cutout for Drain 4.0" x 4.0" (102mm x 102mm) 4.0" x 4.0" (102mm x 102mm)
J Interior Dimensions (JW x JL)
(Bottom of Bath)
20.0" x 36.0"
(508mm x 914 mm)
19.8" x 43.5"
(503mm x 1105mm)
K Interior Dimensions (KW x KL)
(Top of Bath)
30.0" x 57.0"
(747mm x 1448mm)
30.5" x 65.0"
(775mm x 1651mm)
L Interior Depth - Drain End (D) 18.5" (470mm) 18.5" (470mm)
M Backrest Angle 24° 29°
QA28000B www.jacuzzi.com Technical Specications
Note: Drawings not to scale.
*Deck width reects only area indicated on detail.
NOTE
The overall dimensions are nominal with a
tolerance of +0 and -.25" (6mm).
CAUTION: The integral overow cover is
not removable. The warranty will be voided
if attempted.
©2017 Jacuzzi Luxury Bath • For additional information call Customer Service 800-288-4002 • www.jacuzzi.com/baths/
Refer to installation instructions included with xture before beginning installation. Please conrm product availability and specications before commencing with any installation work.
PRODUCT SPECIFICATIONS AND AVAILABILITY ARE SUBJECT TO CHANGE WITHOUT NOTICE.
L
K(L)
W
K(W)
C
B
H
A
F
J(L)
M
L(D)
J(W)

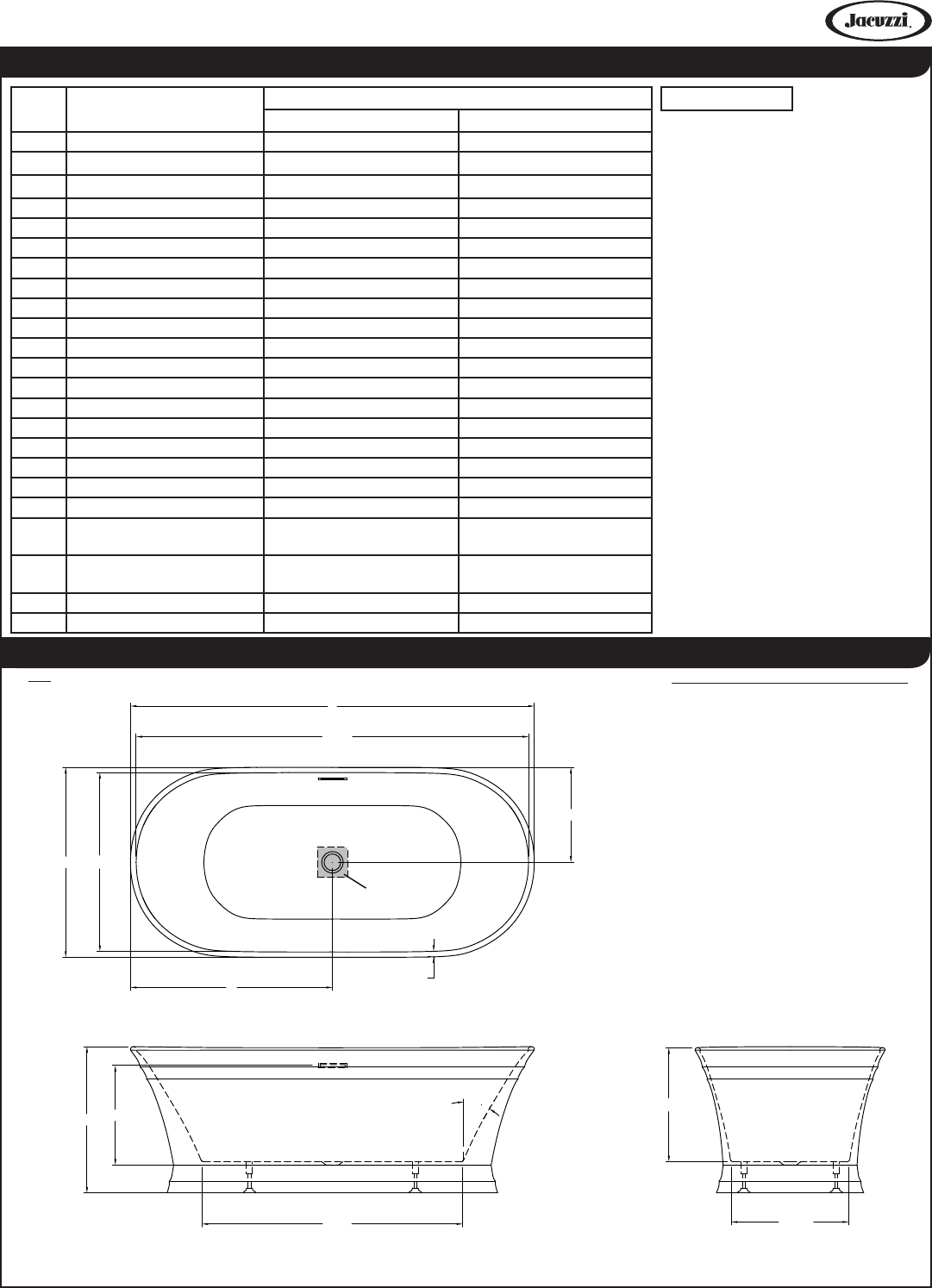

TOP VIEW
SIDE VIEW
END VIEW
I
