Dimensions Guide

© 2016 Jacuzzi Luxury Bath • For additional information call Customer Service 800-288-4002 • www.jacuzzi.com/technicalspecs
Refer to installation instructions included with xture before beginning installation. Please conrm product availability and specications before commencing with any installation work.
PRODUCT SPECIFICATIONS AND AVAILABILITY ARE SUBJECT TO CHANGE WITHOUT NOTICE.
TECHNICAL SPECIFICATIONS
FEATURES, UPGRADES & ACCESSORIESKEY DIMENSIONS
INSTALLATION NOTES
Refer to installation instructions included with
xture before beginning installation. Please conrm
product availability and specications before
commencing with any installation work.
PRODUCT SPECIFICATIONS AND AVAILABILITY
ARE SUBJECT TO CHANGE WITHOUT NOTICE.
• Right and Left Hand Drain Location
• Accessories / Hardware:
Trip-Lever Drain Kit #X559
Rotary Drain Kit, 26” Cable #8730
TheraPro™ Jet Rings Kit: #D095
AccuPro™ Jet Rings Kit: #P556
• Trim Kit Finishes Available:
(827) – Chrome
(826) – Brushed Nickel
(849) – Oil Rubbed Bronze
DIMENSIONS
60” L x 36” W x 19-¼” H
(1524 mm) L x (914 mm) W x (489 mm) H
DRAIN/OVERFLOW
A: 14-⅝” (372 mm) B: 9” (229 mm)
CUTOUT
Not Applicable
TOTAL WEIGHT
H528, H529: 698 lb (317 kg) / 47 lb/sq. ft. (227 kg/m
2
)
H530, H583: 675 lb (306 kg) / 45 lb/sq. ft. (220 kg/m
2
)
OPERATING GALLONAGE
42 U.S. Gal. (159 Liters)
PRODUCT WEIGHT
H528, H529: 98 lb (45 kg)
H530, H583: 75 lb (34 kg)
SKIRT MOUNTING
Integral
ELECTRICAL SPECIFICATIONS MODELS H528, H529 ONLY
Requires a dedicated GFCI protected separate circuit.
Motor/Pump: 120 VAC, 15 AMP, 60 Hz.
RapidHeat™: 120 VAC, 15 AMP, 60 Hz.
HEATER (OPTIONAL MODELS H528, H529 ONLY)
Requires a dedicated GFCI protected separate circuit.
Product Shown: Nova 536 Whirlpool Bath with Integral Skirt Left
Hand Model: H528
* Measurements inside unit represent cutout in floor to allow for
drain/overflow.
Nova
™
536 Whirlpool Bath with Integral Skirt
NVS6036 WRL 2XX Nova 536 Whirlpool Bath with Integral Skirt Right
Hand (H529)
NVS6036 WLR 2XX Nova 536 Whirlpool Bath with Integral Skirt Left
Hand (H528)
Nova
™
536 Bath with Integral Skirt
NVS6036 BRX XXX Nova 536 Bath with Integral Skirt Right Hand
(H583)
NVS6036 BLX XXX Nova 536 Bath with Integral Skirt Left Hand
(H530)

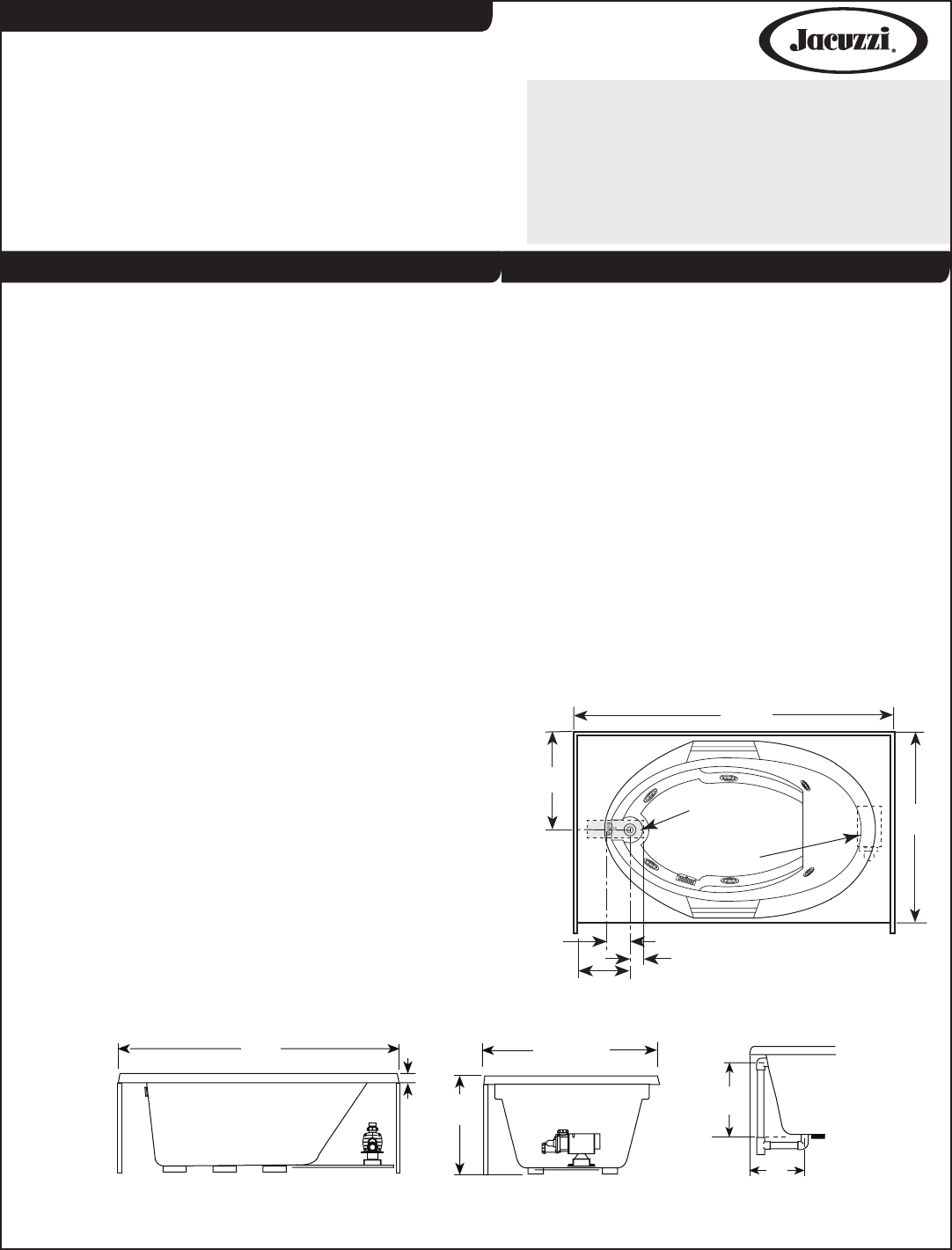

36"
*60"
18"
10" x 4"
2"
9"
Motor
4-5/8"
END VIEW
SIDE VIEW
(25 mm)
(Motor)
DRAIN/OVERFLOW
A
B
H
W
L
1"
QA17000B
