Operating Guide
© 2008 Jacuzzi Luxury Bath • For additional information call Customer Service 800-288-4002 • www.jacuzzi.com
INSTALLATION NOTES
Refer to installation instructions included with xture before
beginning installation. Please conrm product availability and
specications before commencing with any installation work.
PRODUCT SPECIFICATIONS AND AVAILABILITY ARE SUBJECT
TO CHANGE WITHOUT NOTICE.
© 2008 Jacuzzi Luxury Bath • For additional information call Customer Service 800-288-4002 • www.jacuzzi.com
Nova™ 5 Whirlpool Bath
with Integral Skirt
H270 Nova™ 5 Whirlpool Bath with Integral Skirt Right Hand
H265 Nova™ 5 Whirlpool Bath with Integral Skirt Left Hand
Nova™ 5 Bath with Integral Skirt
G150 Nova™ 5 Bath with Integral Skirt Right Hand
G145 Nova™ 5 Bath with Integral Skirt Left Hand
• Right and Left Hand Drain Location
• Accessories / Hardware:
Trip-Lever Drain Kit #X559
Rotary Drain Kit, 26” Cable #8730
TheraPro Jet Trim Kit: #GU44
AccuPro Jet Trim Kit: #GU45
• Trim Kit Finishes Available:
(827) – Chrome
(826) – Brushed Nickel
(849) – Oil Rubbed Bronze

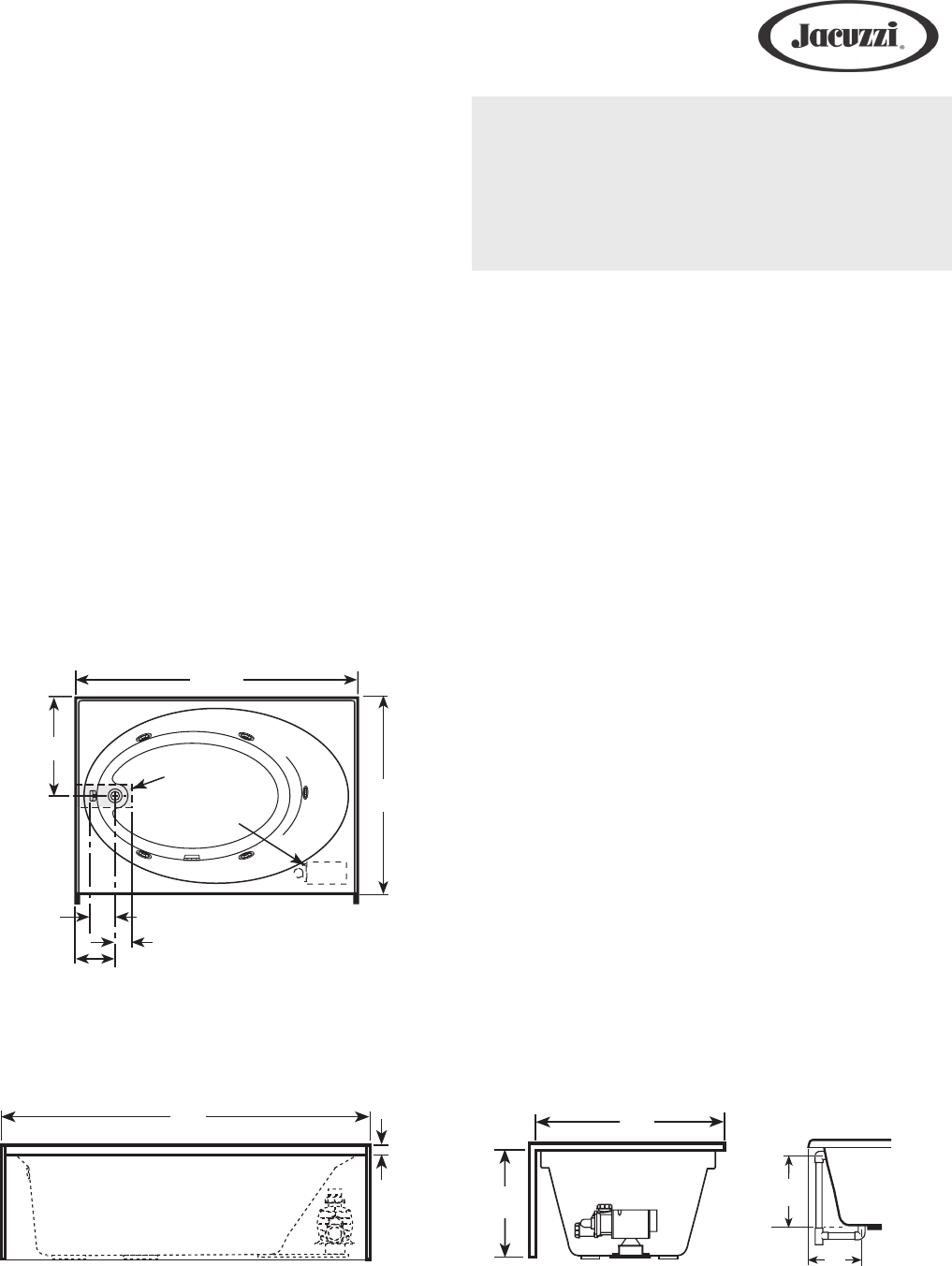

Product Shown: Nova™ 5 Whirlpool Bath with Integral Skirt Left
Hand Model: H265* Measurements inside unit represent cutout in
floor to allow for drain/overflow.
Technical Specifications
DIMENSIONS
60” L x 42” W x 18-1/2” H
(1524 mm) L x (1067 mm) W x (470 mm) H
DRAIN/OVERFLOW
A: 15-7/8” (403 mm) B: 9-1/4” (235 mm)
CUTOUT
Not Applicable
TOTAL WEIGHT
H270, H265: 737 lb (334 kg) / 42 lb/sq. ft. (206 kg/m2)
G145, G150: 707 lb (321 kg) / 40 lb/sq. ft. (197 kg/m2)
OPERATING GALLONAGE
H270, H265: Min. 42 U.S. Gal. (174 Liters)
Max. 54 U.S. Gal. (204 Liters)
G145, G150: Max. 54 U.S. Gal. (204 Liters)
PRODUCT WEIGHT
H270, H265: 112 lb (51 kg)
G145, G150: 82 lb (37 kg)
SKIRT MOUNTING
Integral
ELECTRICAL SPECIFICATIONS MODELS H270, H265 ONLY
Requires a dedicated GFCI protected separate circuit.
Motor/Pump: 120 VAC, 15 AMP, 60 Hz.
HEATER (OPTIONAL)
Models 4480, 9230, DA50, DA55 only
Requires a dedicated GFCI protected separate circuit.
RapidHeat™: P/N S750000
60"
21"
42"
11" x 4"*
9-1/4"
2''
5-1/4''
Motor
L
1"
H
W
SIDE VIEW
END VIEW
DRAIN/OVERFLOW
A
B
60"
21"
42"
11" x 4"*
9-1/4"
2''
5-1/4''
Motor
L
1"
H
W
SIDE VIEW
END VIEW
DRAIN/OVERFLOW
A
B
