Dimensions Guide

English Metric
Outer Dimensions 72” L x 42” W x 26” H 1829 mm L x 1067 mm W x 660 mm H
Interior Dimensions
(bottom of bath) L x W (Mid) x W (End) 46” L x 25” W x 25” W 1168 mm L x 635 mm W x 635 mm W
Drain Confi guration Center drain Center drain
Bath Weight (empty) 100 lbs 45.4 kg
Total Weight/Floor Loading 1,141 lbs 54.4 lbs/ft
2
517 kg 265 kg/m
2
Operating Gallonage (max) 95 (max) U.S. Gals 360 (max) L
Real 7242 Soaking Bath
Material Type: High-Gloss Acrylic
Install Type: Drop-in
Available Colors: White (W), Almond (A), Oyster (Y), Black (B)
Cut-out: 70” X 40”
Available Control Systems:
Chromatherapy lighting
*Control panel installation is done by installer, location optional
© 2010 Jacuzzi Luxury Bath • For additional information call Customer Service 800-288-4002 • www.jacuzzi.com/technicalspecs
HD60000 REL 03/10
Letter Description English Metric
L Outer Length 72” 1829 mm
W Outer Width 42” 1067 mm
H Overall Height 26” 660 mm
A Overfl ow Height 20” 508 mm
B Long Edge to Drain Center 14” 356 mm
C Short Edge to Drain Center 36” 914 mm
D Drain Shoe Length 8 3/4” 222 mm
E Deck Height 2” 51 mm
F Deck Width* 3” 76 mm
G Service Access Dimensions 12” H x 18” L 305 mm x 457 mm
I Floor Cut-out for Drain 18” x 4” 457 mm x 102 mm
*Deck width refl ects only area indicated on detail.
Refer to installation instructions included with fi xture before beginning installation. Please confi rm product availability and specifi cations before commencing with any installation work.
PRODUCT SPECIFICATIONS AND AVAILABILITY ARE SUBJECT TO CHANGE WITHOUT NOTICE.
Electrical Specifi cations Each component requires a separate, dedicated GCFI protected circuit(s)
Chromatherapy (if selected) 120V 15A 60HZ
Available Upgrades:
Chromatherapy lighting
Available Accessories:
DA34 Rotary Drain Kit PVC (specify metal fi nish)
HP55 Rotary Drain Kit (specify metal fi nish)
827: Chrome, 826: Brushed Nickel, 845: Oil Rubbed Bronze
EK91 21” Straight Pillow (specify color) 959: White, 958: Almond,
969: Oyster
GD56 Light Chromatherapy Control Kit (for KT00)
GQ88 Light Chromatherapy Add-on Kit
NOTE: Graphics May Not be to Scale
Product Codes beginning with: REA7242BCX
Also applies to products sold under part numbers: KT00, KT05
TECHNICAL SPECIFICATIONS
FEATURES, UPGRADES & ACCESSORIES

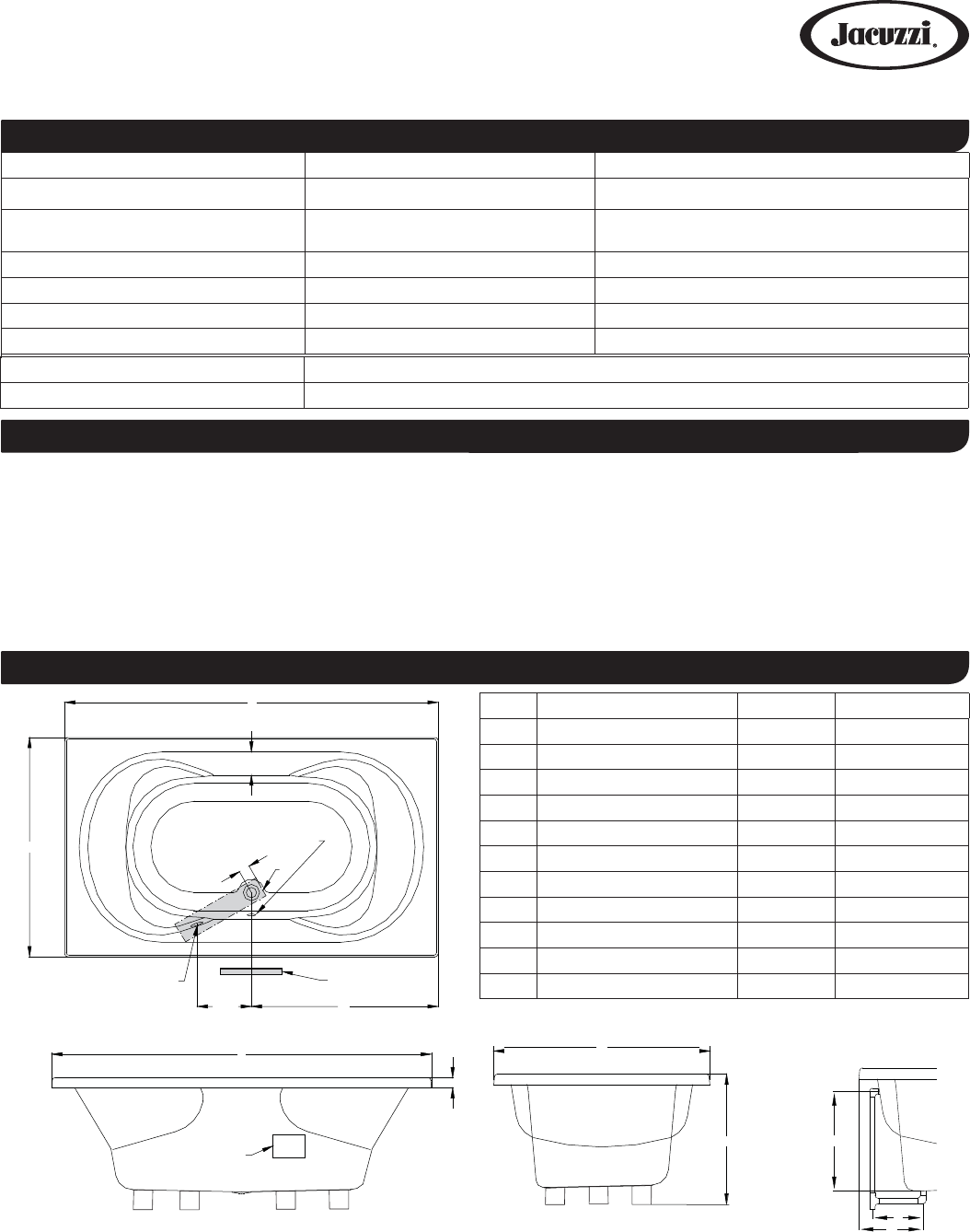

KEY DIMENSIONS
(G) Service Access
For Chromatherapy
C
Chromatherapy
Light Location
F
L
W
Overfl ow
I
3"
10.5"
Side View End View Drain/Overfl ow
H
W
A
D
B
E
L
Light Control
Box (For KT05)
