INSTALLATION NOTES
Refer to installation instructions included with xture before
beginning installation. Please conrm product availability and
specications before commencing with any installation work.
PRODUCT SPECIFICATIONS AND AVAILABILITY ARE SUBJECT
TO CHANGE WITHOUT NOTICE.

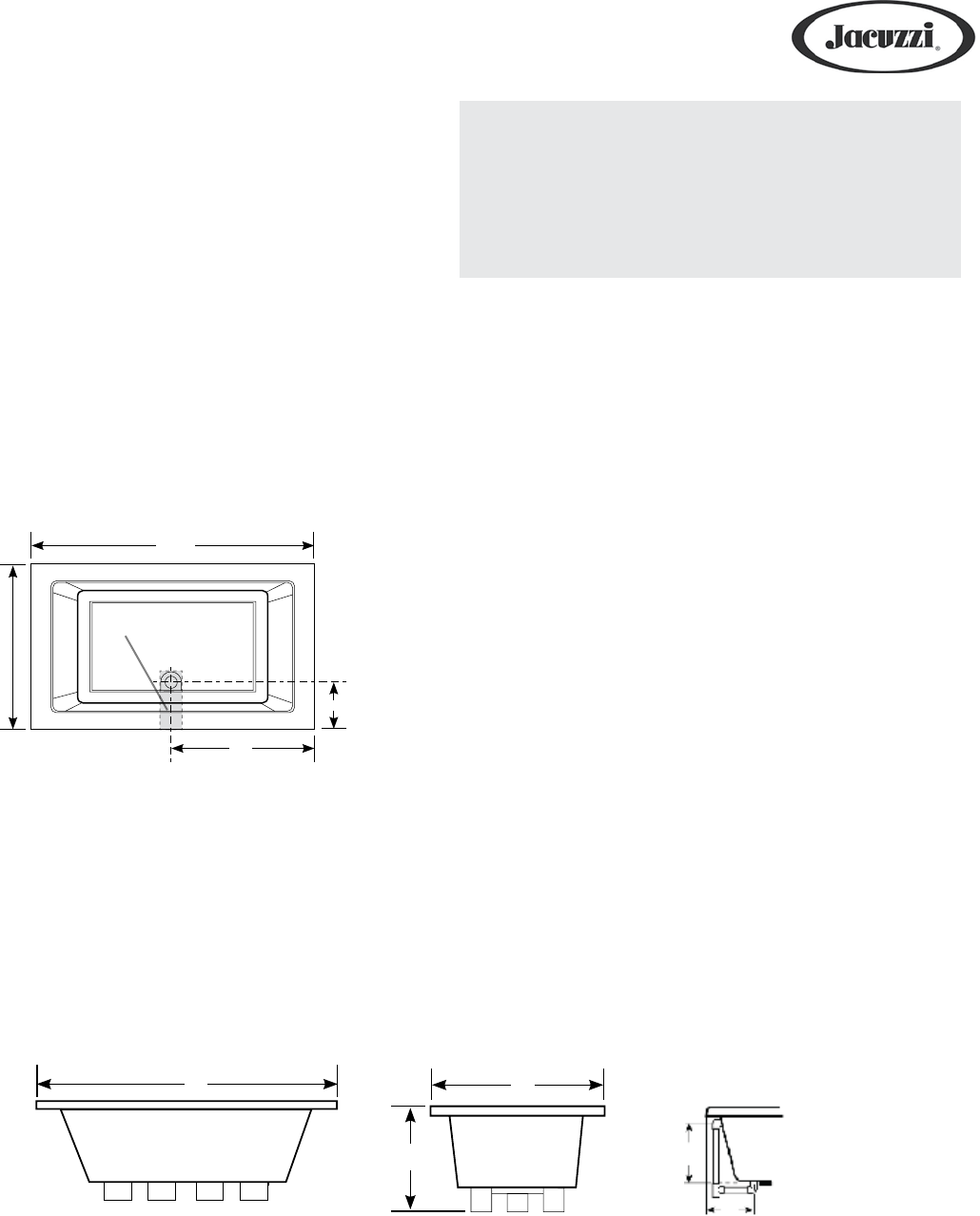

Technical Specifications
DIMENSIONS
66” L x 36” W x 24” H
(1676 mm) L x (914 mm) W x (610 mm) H
DRAIN/OVERFLOW
A: 17-3/4” (451 mm) B: 11-1/2” (292 mm)
CUTOUT
Template provided Part Number GU50000 (undermount)
64” L x 34” W (1626 mm x 864 mm) cutout
TOTAL WEIGHT
924 lb (462 kg) / 56 lb/sq. ft. (273 kg/m
2
)
OPERATING GALLONAGE
51 U.S. Gal. (193 Liters)
Min. - 35 U.S. Gal. (133 Liters)
Max. - 67 U.S. Gal. (254 Liters)
PRODUCT WEIGHT
116 lb (53kg)
SKIRT MOUNTING
Not Available
Product Shown: Sia 6636 Soaker Bath Center
Drain (GM50) Shown.
* Measurements inside unit represent cutout in floor
to allow for drain/overflow.
Minimum Service Access dimensions given.
Sia 6636
SOAKER BATH
GM50 Sia 6636 Soaker Bath
• Center Drain Location
• Accessories / Hardware:
Rotary Drain 26-inch cable 8730
21-inch straight pillow EK91959
• Finishes Available:
(827) – Chrome
(898) – Brushed Chrome
(815) – Satin Nickel
(829) – Bright Brass
(805) – Platinum
(826) – Brushed Nickel
(845) – Oil Rubbed Bronze
