Spec Sheet
English Metric
Outer Dimensions 72” L x 42” W x 24” H 1829 mm L x 1067 mm W x 610 mm H
Interior Dimensions
(bottom of bath) L x W (Mid) x W (End) 49” L x 28” W x 28” W 1245 mm L x 711 mm W x 711 mm W
Drain/Pump Conguration Center drain/Right end pump Center drain/Right end pump
Bath Weight (empty) 162 lbs 74 kg
Total Weight/Floor Loading 1,312 lbs 62.5 lbs/ft
2
596 kg 305 kg/m
2
Operating Gallonage (min-max) 89 (min) 102 (max) U.S. Gals 337 (min) 386 (max) L
Sia 7242 Whirlpool
Material Type: High-Gloss Acrylic
Install Type: Drop-in or Undermount
Available Colors: White (W), Almond (A), Oyster (Y), Black (B)
Cut-out: 70” x 40” or Undermount Template GU50000
Standard (Included) Features:
13 jets, In-line Heater, Chromatherapy lighting
Available Control Systems:
J4 Luxury Control Panel (standard)
J5 Luxury LCD Control Panel
Available Upgrades:
Whisper Quiet Technology,
© 2010 Jacuzzi Luxury Bath • For additional information call Customer Service 800-288-4002 • www.jacuzzi.com/technicalspecs
HD75000 REL 03/10
*Deck width reects only area indicated on detail.
Refer to installation instructions included with xture before beginning installation. Please conrm product availability and specications before commencing with any installation work.
PRODUCT SPECIFICATIONS AND AVAILABILITY ARE SUBJECT TO CHANGE WITHOUT NOTICE.
Electrical Specications Each component requires a separate, dedicated GCFI protected circuit
Motor/Pump 120V 20A 60HZ
Heater 120V 15A 60HZ
Illumatherapy Lighting
Available Accessories:
HP55 Rotary Drain Kit (specify metal nish)
GU44 TheraPro Jet Trim Kit (specify metal nish)
GU45 AccuPro Jet Trim Kit (specify metal nish)
G864 Hand Rails (specify metal nish)
827: Chrome, 826: Brushed Nickel, 845: Oil Rubbed Bronze
*Note: GU44 (Chrome) is standard with Illumatherapy.
EK91 21” Straight Pillow (specify color) 959: White, 958: Almond,
969: Oyster
GQ88 Light Chromatherapy Add-on Kit
NOTE: Graphics May Not be to Scale
Product Codes beginning with: SIA7242WCR
Also applies to products sold under part numbers: GM85, KX15, KX20, KX25, KX30, KX35, KX40, KX45
TECHNICAL SPECIFICATIONS
FEATURES, UPGRADES & ACCESSORIES

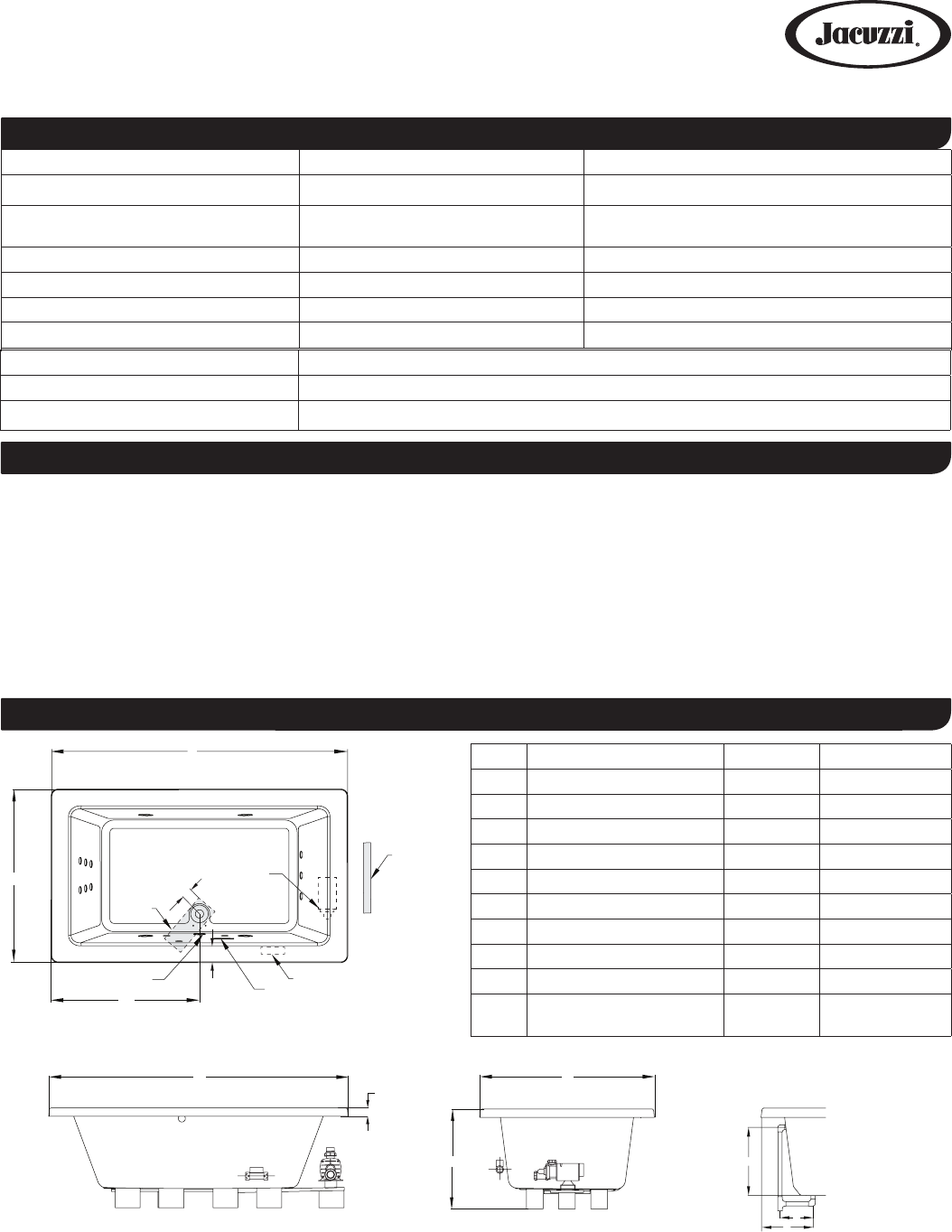

KEY DIMENSIONS
Letter Description English Metric
L Outer Length 72” 1829 mm
W Outer Width 42” 1067 mm
H Overall Height 24” 610 mm
A Overow Height 17 3/4” 451 mm
B Long Edge to Drain Center 11 1/2” 292 mm
C Short Edge to Drain Center 36” 915 mm
D Drain Shoe Length 6 1/2” 165 mm
E Deck Height 2” 51 mm
F Deck Width* 5” 127 mm
G Service Access Dimensions 12” H x 18”
L
305 mm x 457
mm
Drain/Overow
End ViewSide View
(Heater)
(Heater)
(Motor)
(Motor)
W
H
E
L
A
D
B
C
F
W
L
(G) Service
Access
Heater
Control Panel
Overow
Motor
3”
I
