Specification

Frame Size
Rough Opening
Daylight Opening Daylight Opening
Unit Size
2 11/16"
1 15/16"5/8"
1/2"
1"
11/16"
1"
1 3/16"
11/16"
1"
1 3/16"
1"
2 11/16"
1 15/16"5/8"
Scale: 6" = 1' - 0"
7
Architectural Design Manual
February 2017
Product specifications may change without notice.
Questions? Consult JELD-WEN customer service.
BUILDERS ALUMINUM
ALUMINUM WINDOWS
SLIDER

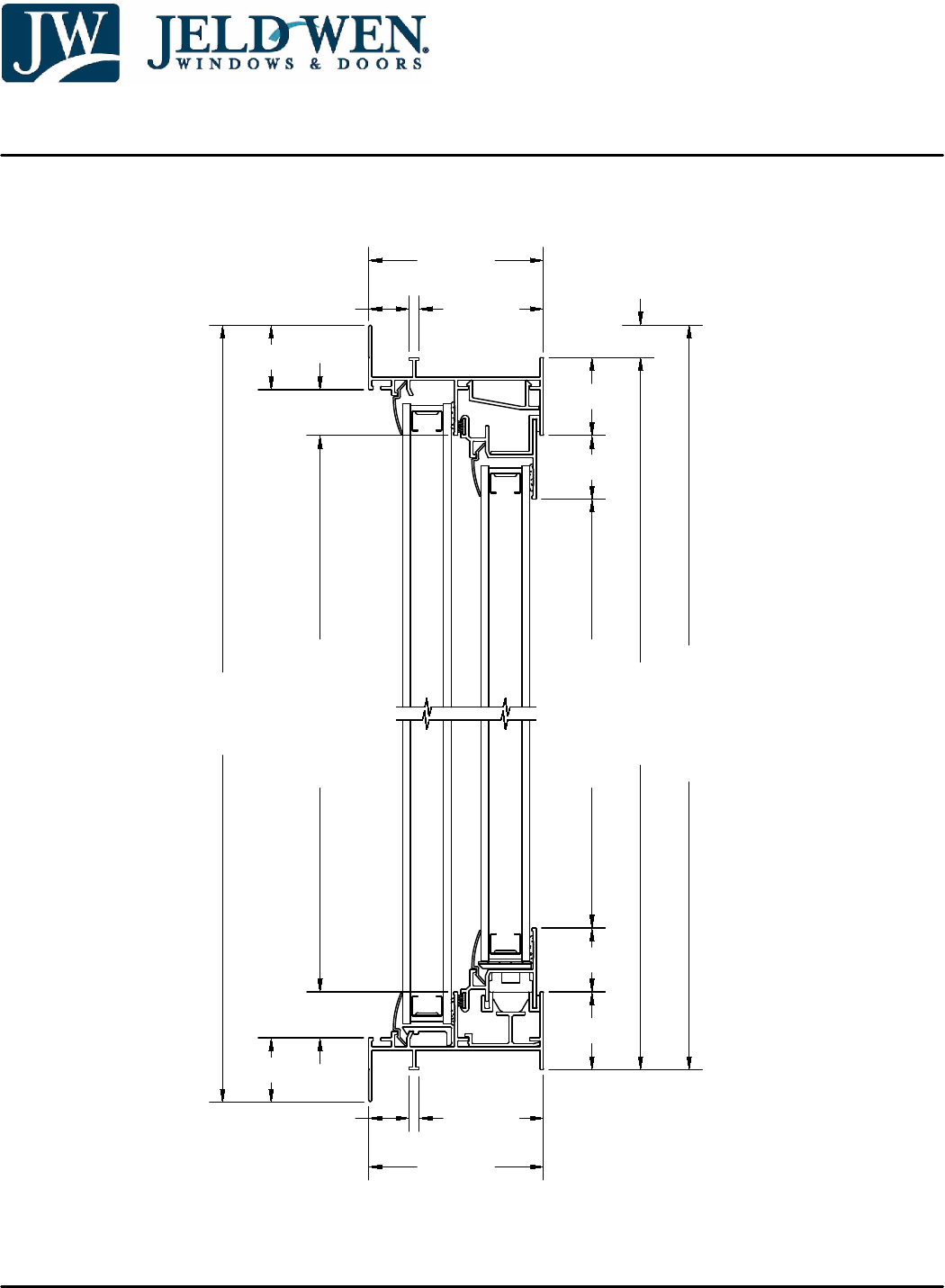

FLANGE FRAME - VERTICAL SECTION
