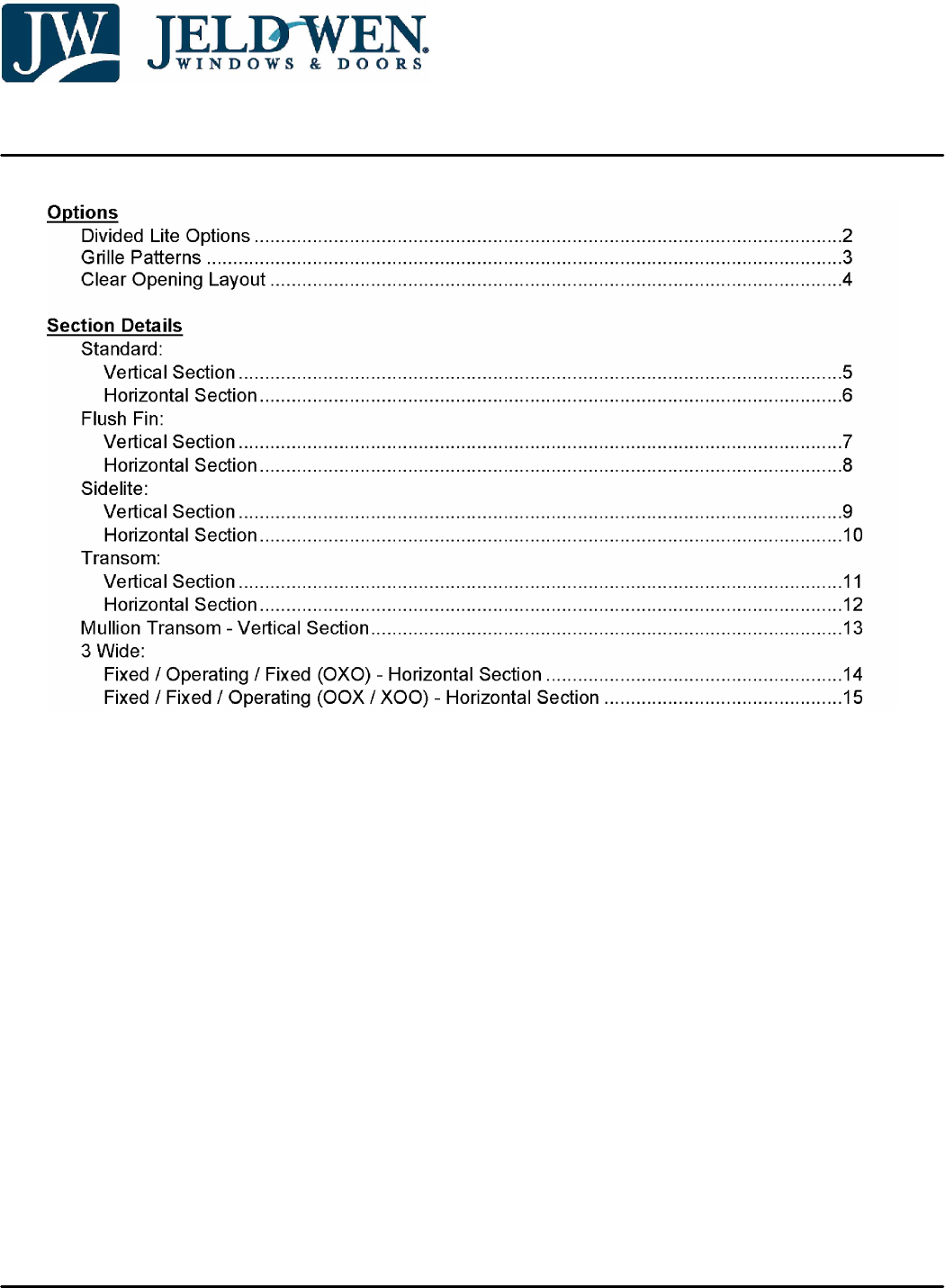

BUILDERS VINYL VINYL PATIO DOOR SLIDING PATIO DOOR TABLE OF CONTENTS Architectural Design Manual September 2017 Product specifications may change without notice. Questions? Consult JELD-WEN customer service.
BUILDERS VINYL VINYL PATIO DOOR SLIDING PATIO DOOR DIVIDED LITE OPTIONS 1/8" 7/8" 7/8" Low Profile Contour SDL 1/8" 1" 1" 1" Raised Slim SDL 1" Raised Slim SDL w/ Shadowbar 3/16" 3/16" 3/16" 5/8" 5/8" Flat GBG Architectural Design Manual September 2017 1/8" 7/8" 7/8" Flat GBG Product specifications may change without notice. Questions? Consult JELD-WEN customer service.
BUILDERS VINYL VINYL PATIO DOOR SLIDING PATIO DOOR GRILLE PATTERNS Standard Prairie Frame Prairie Glass Colonial Top Down Architectural Design Manual September 2017 Product specifications may change without notice. Questions? Consult JELD-WEN customer service.
BUILDERS VINYL VINYL PATIO DOOR SLIDING PATIO DOOR Clear Opening Height CLEAR OPENING LAYOUT Clear Opening Width Note: 32" Minimum Egress Requires An ADA Handle Set, Bumper Removed, And Interlock Stile Moved .5" Architectural Design Manual September 2017 Product specifications may change without notice. Questions? Consult JELD-WEN customer service.
BUILDERS VINYL VINYL PATIO DOOR SLIDING PATIO DOOR STANDARD - VERTICAL SECTION 4 1/2" 1 5/16" 3 3/16" 1/4" 1" 1 5/8" 2 3/8" 1 3/4" Rough Opening Daylight Opening 2 3/8" Frame Size Daylight Opening 1 3/4" 1 5/8" 1" 1 5/16" 3 3/16" 4 1/2" Architectural Design Manual September 2017 Product specifications may change without notice. Questions? Consult JELD-WEN customer service.
BUILDERS VINYL VINYL PATIO DOOR SLIDING PATIO DOOR STANDARD - HORIZONTAL SECTION Rough Opening 1/4" Frame Size 1 5/8" 2 1/4" 1/4" Daylight Opening 1 3/4" 1 5/8" 3 3/16" 4 1/2" 3 3/16" 4 1/2" 1 5/16" 1 1/8" 1 5/16" 1 5/8" Architectural Design Manual September 2017 Daylight Opening 2 1/8" 1 3/4" Product specifications may change without notice. Questions? Consult JELD-WEN customer service.
BUILDERS VINYL VINYL PATIO DOOR SLIDING PATIO DOOR FLUSH FIN - VERTICAL SECTION 4 13/16" 3/8" 4 7/16" 1/4" 1" 1 5/8" 2 3/8" Rough Opening Frame Size Daylight Opening Daylight Opening 1 3/4" 1 3/4" 2 3/8" 1 5/8" 1" 4 1/2" Architectural Design Manual September 2017 Product specifications may change without notice. Questions? Consult JELD-WEN customer service.
BUILDERS VINYL VINYL PATIO DOOR SLIDING PATIO DOOR FLUSH FIN - HORIZONTAL SECTION Rough Opening 1/4" Frame Size 1 5/8" 2 1/4" 1/4" Daylight Opening 1 3/4" 1 5/8" 3/8" 5/8" Daylight Opening 2 1/8" 1 3/4" 2 5/8" Architectural Design Manual September 2017 5/8" 4 13/16" 4 7/16" 1 5/8" 4 7/16" 4 13/16" 1 5/8" 3/8" 2 5/8" Product specifications may change without notice. Questions? Consult JELD-WEN customer service.
BUILDERS VINYL VINYL PATIO DOOR SLIDING PATIO DOOR SIDELITE - VERTICAL SECTION 4 1/2" 1 5/16" 3 3/16" 1/4" 1 1/8" 1" 1 5/8" Rough Opening Frame Size Daylight Opening 2 3/8" 2 3/8" 1 5/8" 1" 1 1/8" 1 5/16" 3 3/16" 4 1/2" Architectural Design Manual September 2017 Product specifications may change without notice. Questions? Consult JELD-WEN customer service.
BUILDERS VINYL VINYL PATIO DOOR SLIDING PATIO DOOR SIDELITE - HORIZONTAL SECTION Rough Opening 1/4" Frame Size 1/4" 3 3/16" 3 3/16" 4 1/2" 4 1/2" 1 5/16" 1 5/16" 1 5/8" Architectural Design Manual September 2017 Daylight Opening 1 5/8" Product specifications may change without notice. Questions? Consult JELD-WEN customer service.
BUILDERS VINYL VINYL PATIO DOOR SLIDING PATIO DOOR TRANSOM - VERTICAL SECTION 4 1/2" 1 5/16" 3 3/16" 1/4" 1 1/8" Rough Opening Daylight Opening Frame Size 1 5/8" 1 5/8" 1 1/8" 1 5/16" 3 3/16" 4 1/2" Architectural Design Manual September 2017 Product specifications may change without notice. Questions? Consult JELD-WEN customer service.
BUILDERS VINYL VINYL PATIO DOOR SLIDING PATIO DOOR TRANSOM - HORIZONTAL SECTION Rough Opening 1/4" Frame Size 1 5/8" 1/4" 1 5/8" 3 3/16" 3 3/16" 4 1/2" 4 1/2" 1 5/16" 1 5/16" 1 1/8" Architectural Design Manual September 2017 1 5/8" Daylight Opening 1 5/8" Product specifications may change without notice. Questions? Consult JELD-WEN customer service.
BUILDERS VINYL VINYL PATIO DOOR SLIDING PATIO DOOR MULLION TRANSOM - VERTICAL SECTION 4 1/2" 1 5/16" 3 3/16" 1/4" 1 1/8" 1 5/8" Daylight Opening 1 5/8" 5/8" 1/2" 1 5/8" Rough Opening 2 1/2" 1/2" Frame Size 1 5/8" 2 3/8" 1 3/4" Architectural Design Manual September 2017 Product specifications may change without notice. Questions? Consult JELD-WEN customer service.
BUILDERS VINYL VINYL PATIO DOOR SLIDING PATIO DOOR 3 WIDE - FIXED / OPERATING / FIXED (OXO) - HORIZONTAL SECTION Rough Opening Frame Size 1 3/4" 2 5/8" 1 5/8" 3 3/16" Daylight Opening 3 3/16" 2 1/4" 1 1/8" Daylight Opening 1 5/8" Architectural Design Manual September 2017 2 5/8" 2 3/16" 4 3/8" Product specifications may change without notice. Questions? Consult JELD-WEN customer service.
BUILDERS VINYL VINYL PATIO DOOR SLIDING PATIO DOOR 3 WIDE - FIXED / FIXED / OPERATING (OOX / XOO) - HORIZONTAL SECTION Rough Opening Frame Size 1 3/4" 1 5/8" 3 3/16" Daylight Opening 3 3/16" 2 1/4" 1 1/8" Daylight Opening 2 5/8" Daylight Opening 2 3/16" 1 1/8" 1 5/8" Architectural Design Manual September 2017 1 5/8" 1 5/16" 1 5/16" 4 1/2" 1 5/8" 1/4" 4 1/2" 1/4" Product specifications may change without notice. Questions? Consult JELD-WEN customer service.
