Dimensions Guide

Architectural Detail Manual
July 2010
JELD-WEN reserves the right to change specifications without notice.
Pa
g
e7-13
PICTURE UNITS

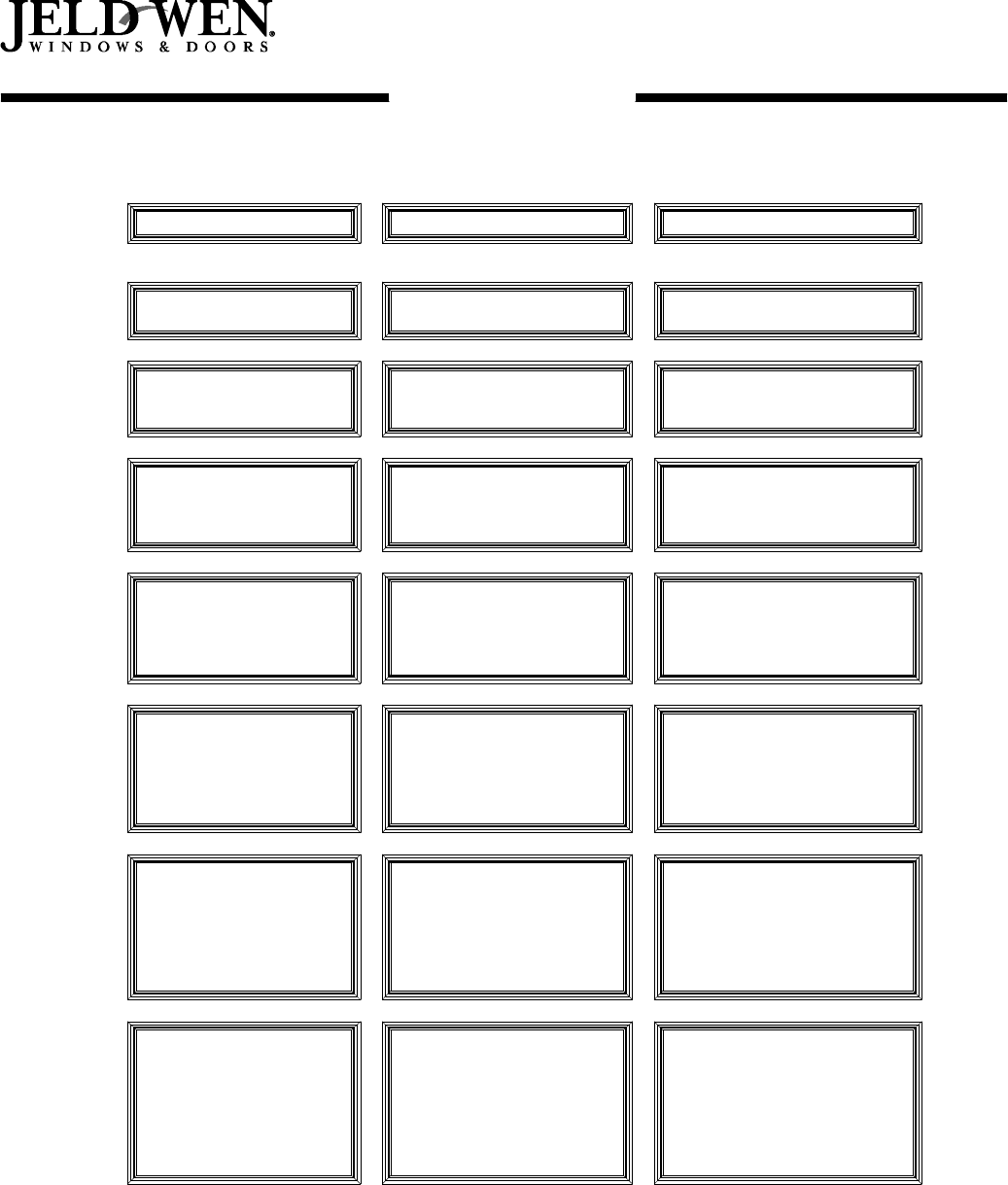

PPC7812 PPC8412 PPC9012
PPC7818 PPC8418 PPC9018
PPC7824 PPC8424 PPC9024
PPC7830 PPC8430 PPC9030
PPC7836 PPC8436 PPC9036
PPC7842 PPC8442 PPC9042
PPC7848 PPC8448 PPC9048
PPC7854 PPC8454 PPC9054
78”(1981)
79 3/4”(2026)
77 1/2”(1969)
73 7/8”(1876)
84”(2134)
85 3/4”(2178)
83 1/2”(2121)
79 7/8”(2029)
90”(2286)
91 3/4”(2330)
89 1/2”(2273)
85 7/8”(2181)
35 35 35
35 35 35
35 35 35
35 35 35
35 35 35
35 35 35
35 35 35
35 35 35
DAYLIGHT OPENING
FRAME SIZE
ROUGH OPENING
UNIT SIZE
12”(305)
13 3/4”(349) 11 1/2”(292)
77/8”(200)
18”(457)
19 3/4”(502) 17 1/2”(445) 13 7/8”(352)
24”(610)
25 3/4”(654) 23 1/2”(597)
19 7/8”(505)
30”(762)
31 3/4”(806) 29 1/2”(749) 25 7/8”(657)
36”(914)
37 3/4”(959) 35 1/2”(902) 31 7/8”(810)
42”(1067)
43 3/4”(1111) 41 1/2”(1054)
37 7/8”(962)
48”(1219)
49 3/4”(1264) 47 1/2”(1207) 43 7/8”(1114)
54”(1372)
55 3/4”(1416) 53 1/2”(1359)
49 7/8”(1267)
ELEVATION SYMBOL LEGEND:
VALUES IN () ARE IN MILLIMETER CONVERSIONS
## INDICAT ES DESIGN PRESSURE (DP) RATING WITH STANDARD GLAZING
Note: Elevations shown DO NOT have exterior trim. Subtract 1/2”(12.7) from M.O.(Masonry Opening) for Unit Sizes. Masonry openings above include SillNose,seeTrimOptions
page for Si ll Nose specifications. For other Trim Options refer to the Unit Sizing, Rough Opening & Masonry Openings page.
Fixed, Radius and Geometric Windows
Premium Vinyl
SCALE: 1
/
4” = 1’
