Dimensions Guide

Architectural Detail Manual
July 2010
JELD-WEN reserves the right to change specifications without notice.
Pa
g
e7-33

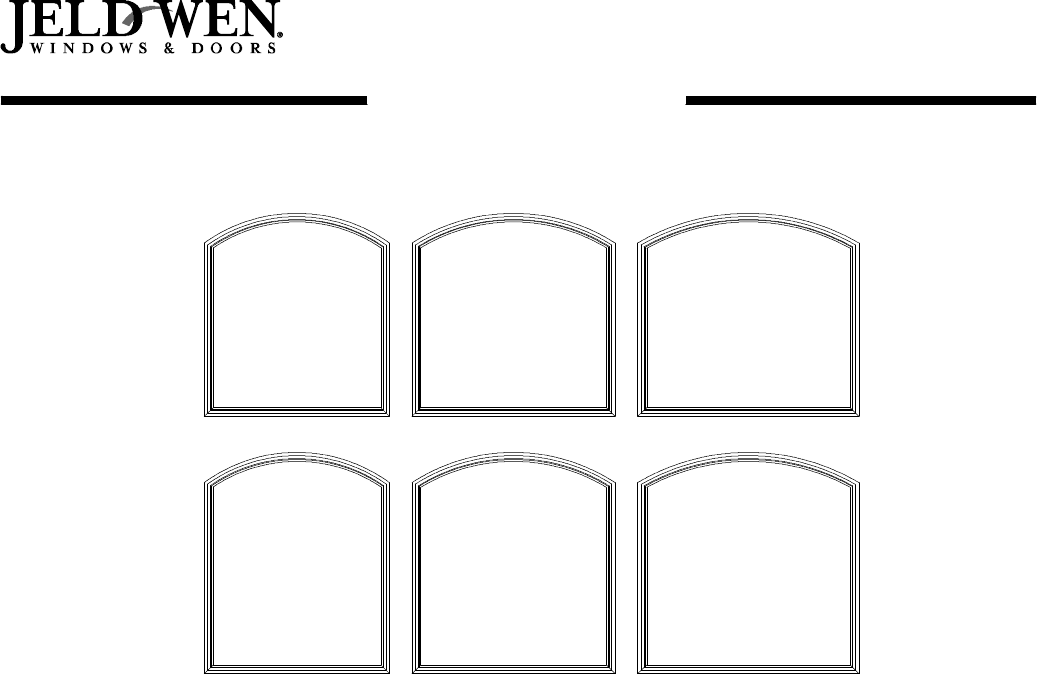

EXTENDED CIRCLE SEGMENT
PLP6066 PLP6666 PLP7266
PLP6072 PLP6672 PLP7272
66”(1676)
67 3/4”(1721) 65 1/2”(1664) 61 7/8”(1572)
72”(1829)
73 3/4”(1873) 71 1/2”(1816) 67 7/8”(1724)
DAYLIGHT OPENING
FRAME SIZE
ROUGH OPENING
UNIT SIZE
60”(1524)
61 3/4”(1568)
59 1/2”(1511)
55 7/8”(1419)
66”(1676)
67 3/4”(1721)
65 1/2”(1664)
61 7/8”(1572)
72”(1829)
73 3/4”(1873)
71 1/2”(1816)
67 7/8”(1724)
ELEVATION SYMBOL LEGEND:
VALUES IN () ARE IN MILLIMETER CONVERSIONS
## INDICAT ES DESIGN PRESSURE (DP) RATING WITH STANDARD GLAZING
Note: Elevations shown DO NOT have exterior trim. Subtract 1/2”(12.7) from M.O.(Masonry Opening) for Unit Sizes. Masonry openings above include SillNose,seeTrimOptions
page for Si ll Nose specifications. For other Trim Options refer to the Unit Sizing, Rough Opening & Masonry Openings page.
Fixed, Radius and Geometric Windows
Premium Vinyl
SCALE: 1
/
4” = 1’
