Dimensions Guide

Architectural Detail Manual
July 2010
JELD-WEN reserves the right to change specifications without notice.
Pa
g
e7-43

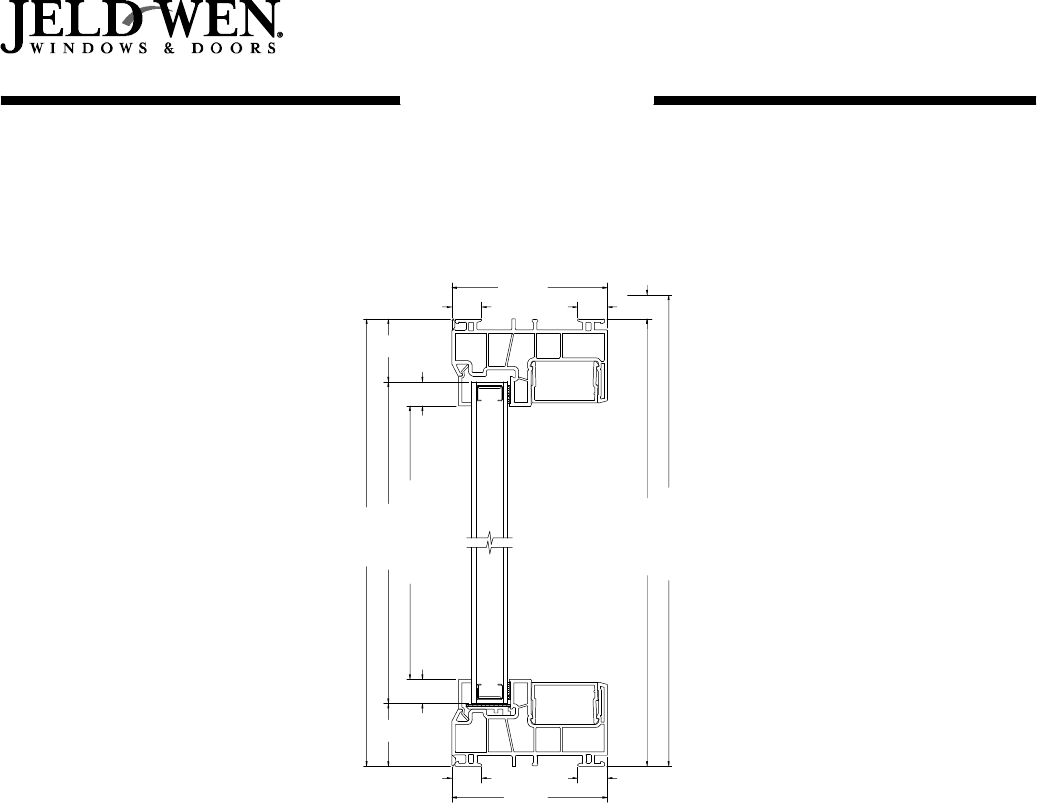

VERTICAL SECTION
Frame Size
Rough Opening
Daylight Opening
1/2”
31/4”
5/8” 5/8”
31/4”
5/8” 5/8”
Glass Size
Unit Size
1/2”
15/16”
15/16”
1/2”
PICTURE WINDOWS
BOX FRAME
SCALE: 4” = 1’
Fixed, Radius and Geometric Windows
Premium Vinyl
