Dimensions Guide

Architectural Detail Manual
July 2010
JELD-WEN reserves the right to change specifications without notice.
Pa
g
e7-12

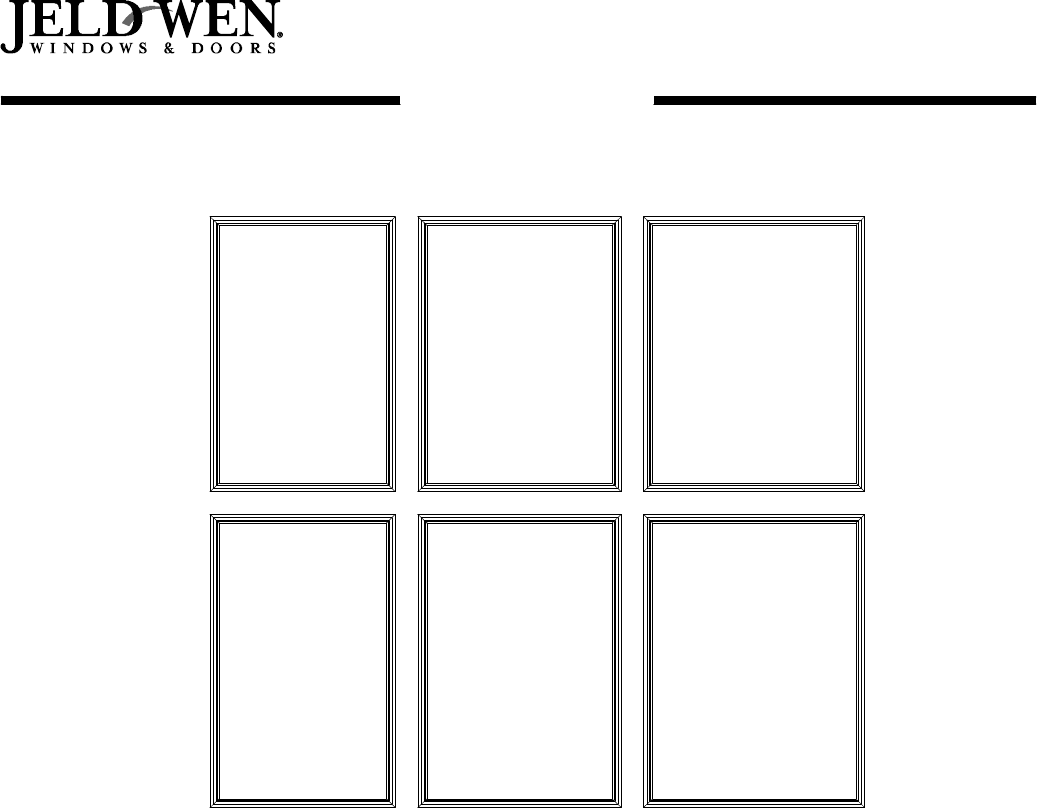

PICTURE UNITS
PPC6090 PPC6690 PPC7290
PPC6096 PPC6696 PPC7296
35 35 35
35 35 35
60”(1524)
61 3/4”(1568)
59 1/2”(1511)
55 7/8”(1419)
66”(1676)
67 3/4”(1721)
65 1/2”(1664)
61 7/8”(1572)
72”(1829)
73 3/4”(1873)
71 1/2”(1816)
67 7/8”(1724)DAYLIGHT OPENING
FRAME SIZE
ROUGH OPENING
UNIT SIZE
90”(2286)
91 3/4”(2330) 89 1/2”(2273) 85 7/8”(2181)
96”(2438)
97 3/4”(2483) 95 1/2”(2426) 91 7/8”(2334)
ELEVATION SYMBOL LEGEND:
VALUES IN () ARE IN MILLIMETER CONVERSIONS
## INDICAT ES DESIGN PRESSURE (DP) RATING WITH STANDARD GLAZING
Note: Elevations shown DO NOT have exterior trim. Subtract 1/2”(12.7) from M.O.(Masonry Opening) for Unit Sizes. Masonry openings above include SillNose,seeTrimOptions
page for Si ll Nose specifications. For other Trim Options refer to the Unit Sizing, Rough Opening & Masonry Openings page.
Fixed, Radius and Geometric Windows
Premium Vinyl
SCALE: 1
/
4” = 1’
