Dimensions Guide

Architectural Detail Manual
July 2010
JELD-WEN reserves the right to change specifications without notice.
Pa
g
e7-17

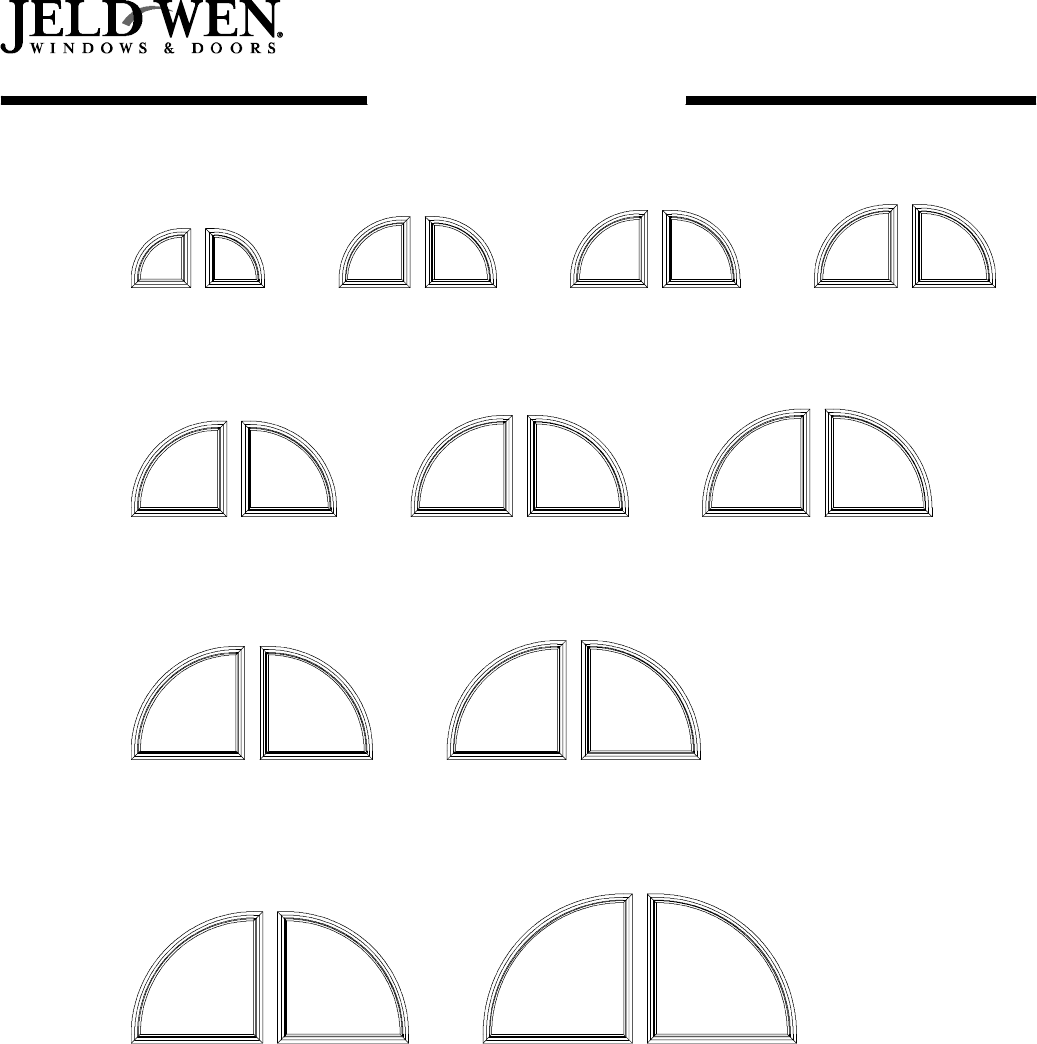

QUARTER ROUND
DAYLIGHT OPENING
FRAME SIZE
ROUGH OPENING
UNIT SIZE
PQR1818
18”(457)
19 3/4”(502)
17 1/2”(445)
13 7/8”(352)
22”(559)
23 3/4”(603)
21 1/2”(546)
17 7/8”(454)
24”(610)
25 3/4”(654)
23 1/2”(597)
19 7/8”(505)
26”(660)
27 3/4”(705)
25 1/2”(648)
21 7/8”(556)
30”(762)
31 3/4”(806)
29 1/2”(749)
25 7/8”(657)
32”(813)
33 3/4”(857)
31 1/2”(800)
27 7/8”(708)
34”(864)
35 3/4”(908)
33 1/2”(851)
29 7/8”(759)
36”(914)
37 3/4”(959)
35 1/2”(902)
31 7/8”(810)
38”(965)
39 3/4”(1010)
37 1/2”(953)
33 7/8”(860)
42”(1067)
43 3/4”(1111)
41 1/2”(1054)
37 7/8”(962)
48”(1219)
49 3/4”(1264)
47 1/2”(1207)
43 7/8”(1114)
PQR2222 PQR2424 PQR2626
PQR3030 PQR3232 PQR3434
PQR3636 PQR3838
PQR4242 PQR4848
18”(457)
19 3/4”(502) 17 1/2”(445) 13 7/8”(352)
24”(610)
25 3/4”(654) 23 1/2”(597)
19 7/8”(505)
30”(762)
31 3/4”(806) 29 1/2”(749) 25 7/8”(657)
36”(914)
37 3/4”(959) 35 1/2”(902) 31 7/8”(810)
42”(1067)
43 3/4”(1111) 41 1/2”(1054)
37 7/8”(962)
48”(1219)
49 3/4”(1264) 47 1/2”(1207) 43 7/8”(1114)
22”(559)
23 3/4”(603) 21 1/2”(546)
17 7/8”(454)
26”(660)
27 3/4”(705) 25 1/2”(648) 21 7/8”(556)
32”(813)
33 3/4”(857) 31 1/2”(800)
27 7/8”(708)
34”(864)
35 3/4”(908) 33 1/2”(851) 29 7/8”(759)
38”(965)
39 3/4”(1010)
37 1/2”(953) 33 7/8”(860)
DAYLIGHT OPENING
FRAME SIZE
ROUGH OPENING
UNIT SIZE
DAYLIGHT OPENING
FRAME SIZE
ROUGH OPENING
UNIT SIZE
DAYLIGHT OPENING
FRAME SIZE
ROUGH OPENING
UNIT SIZE
ELEVATION SYMBOL LEGEND:
VALUES IN () ARE IN MILLIMETER CONVERSIONS
## INDICAT ES DESIGN PRESSURE (DP) RATING WITH STANDARD GLAZING
Note: Elevations shown DO NOT have exterior trim. Subtract 1/2”(12.7) from M.O.(Masonry Opening) for Unit Sizes. Masonry openings above include SillNose,seeTrimOptions
page for Si ll Nose specifications. For other Trim Options refer to the Unit Sizing, Rough Opening & Masonry Openings page.
Fixed, Radius and Geometric Windows
Premium Vinyl
SCALE: 1
/
4” = 1’
