Dimensions Guide

Architectural Detail Manual
July 2010
JELD-WEN reserves the right to change specifications without notice.
Pa
g
e7-20

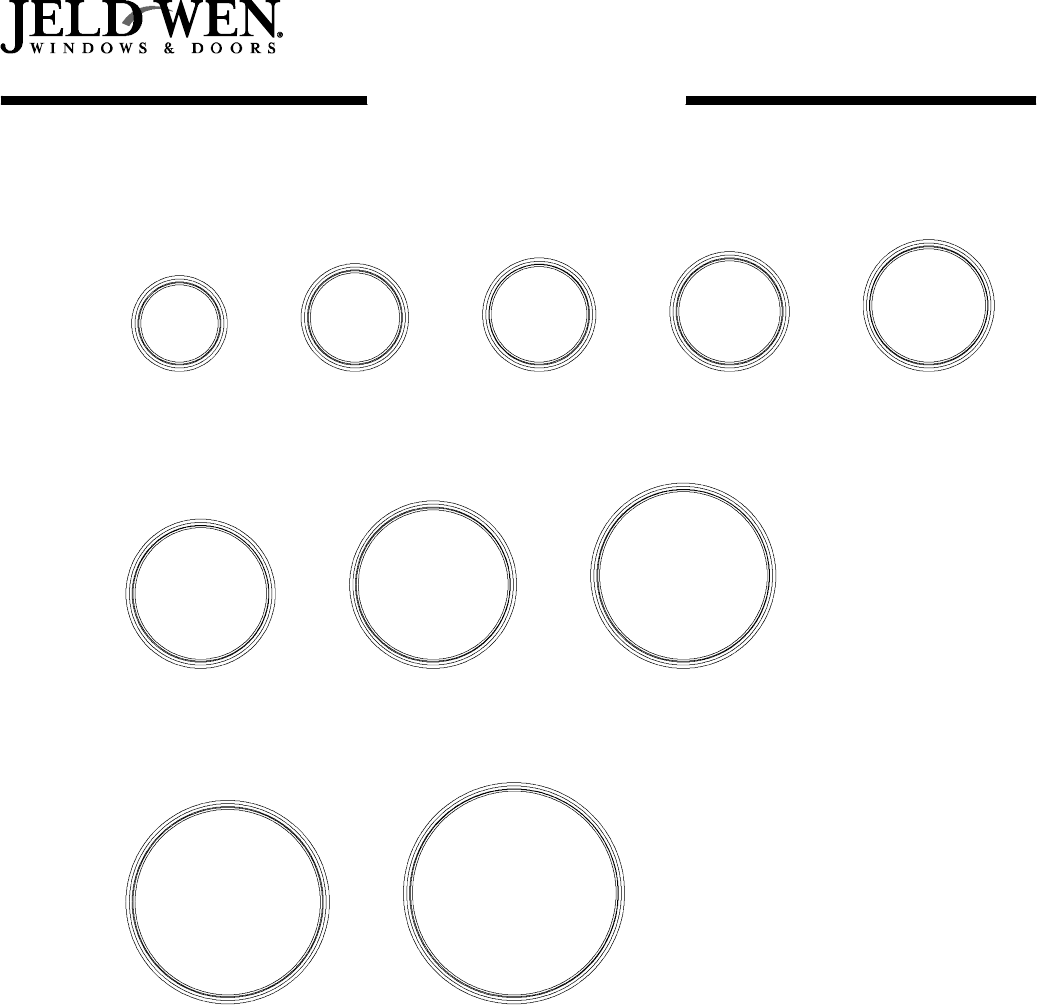

FULL ROUND
DAYLIGHT OPENING
FRAME SIZE
ROUGH OPENING
UNIT SIZE
30”(762)
31 3/4”(806) 29 1/2”(749) 25 7/8”(657)
34”(864)
35 3/4”(908) 33 1/2”(851) 29 7/8”(759)
36”(914)
37 3/4”(959) 35 1/2”(902) 31 7/8”(810)
38”(965)
39 3/4”(1010)
37 1/2”(953) 33 7/8”(860)
42”(1067)
43 3/4”(1111) 41 1/2”(1054)
37 7/8”(962)
48”(1219)
49 3/4”(1264) 47 1/2”(1207) 43 7/8”(1114)
54”(1372)
55 3/4”(1416) 53 1/2”(1359) 49 7/8”(1267)
60”(1524)
61 3/4”(1568) 59 1/2”(1511) 55 7/8”(1419)
66”(1676)
67 3/4”(1721) 65 1/2”(1664) 61 7/8”(1572)
72”(1829)
73 3/4”(1873) 71 1/2”(1816) 67 7/8”(1724)
30”(762)
31 3/4”(806)
29 1/2”(749)
25 7/8”(657)
34”(864)
35 3/4”(908)
33 1/2”(851)
29 7/8”(759)
36”(914)
37 3/4”(959)
35 1/2”(902)
31 7/8”(810)
38”(965)
39 3/4”(1010)
37 1/2”(953)
33 7/8”(860)
42”(1067)
43 3/4”(1111)
41 1/2”(1054)
37 7/8”(962)
48”(1219)
49 3/4”(1264)
47 1/2”(1207)
43 7/8”(1114)
54”(1372)
55 3/4”(1416)
53 1/2”(1359)
49 7/8”(1267)
60”(1524)
61 3/4”(1568)
59 1/2”(1511)
55 7/8”(1419)
66”(1676)
67 3/4”(1721)
65 1/2”(1664)
61 7/8”(1572)
72”(1829)
73 3/4”(1873)
71 1/2”(1816)
67 7/8”(1724)
PFR30 PFR34 PFR36 PFR38 PFR42
PFR48 PFR54 PFR60
PFR66 PFR72
DAYLIGHT OPENING
FRAME SIZE
ROUGH OPENING
UNIT SIZE
DAYLIGHT OPENING
FRAME SIZE
ROUGH OPENING
UNIT SIZE
ELEVATION SYMBOL LEGEND:
VALUES IN () ARE IN MILLIMETER CONVERSIONS
## INDICAT ES DESIGN PRESSURE (DP) RATING WITH STANDARD GLAZING
Note: Elevations shown DO NOT have exterior trim. Subtract 1/2”(12.7) from M.O.(Masonry Opening) for Unit Sizes. Masonry openings above include SillNose,seeTrimOptions
page for Si ll Nose specifications. For other Trim Options refer to the Unit Sizing, Rough Opening & Masonry Openings page.
Fixed, Radius and Geometric Windows
Premium Vinyl
SCALE: 1
/
4” = 1’
