Dimensions Guide

Architectural Detail Manual
July 2010
JELD-WEN reserves the right to change specifications without notice.
Pa
g
e7-42

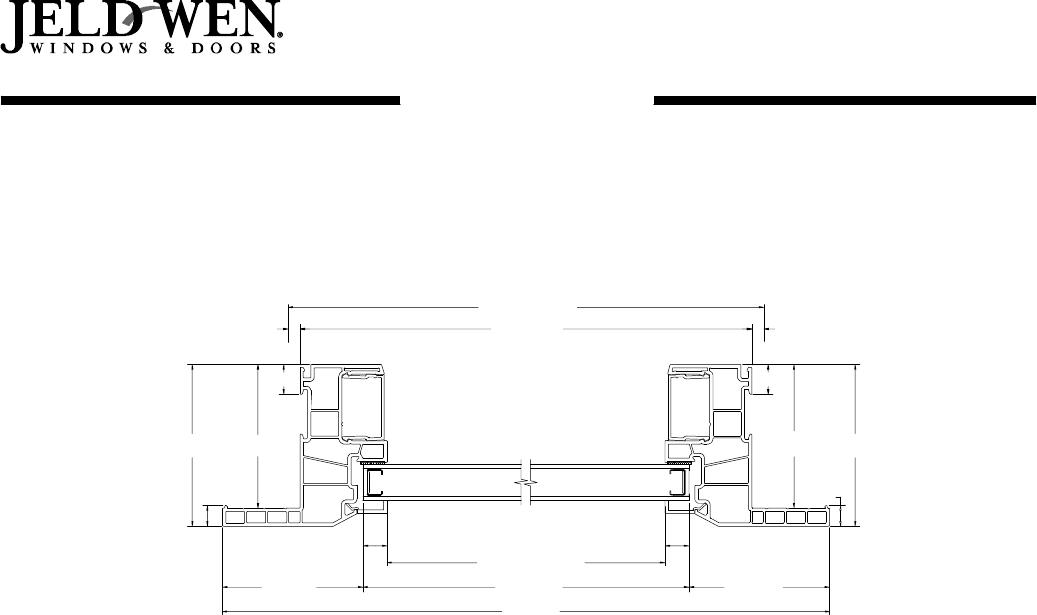

HORIZONTAL SECTION
Unit Size
Daylight Opening
Glass Size
1/2”
215/16” 215/16”
1/2”
Frame Size
Rough Opening
1/4” 1/4”
33/8”
7/16”
5/8”
3”
33/8”
5/8”
3”
7/16”
PICTURE WINDOW
FLUSH FIN
SCALE: 4” = 1’
Fixed, Radius and Geometric Windows
Premium Vinyl
