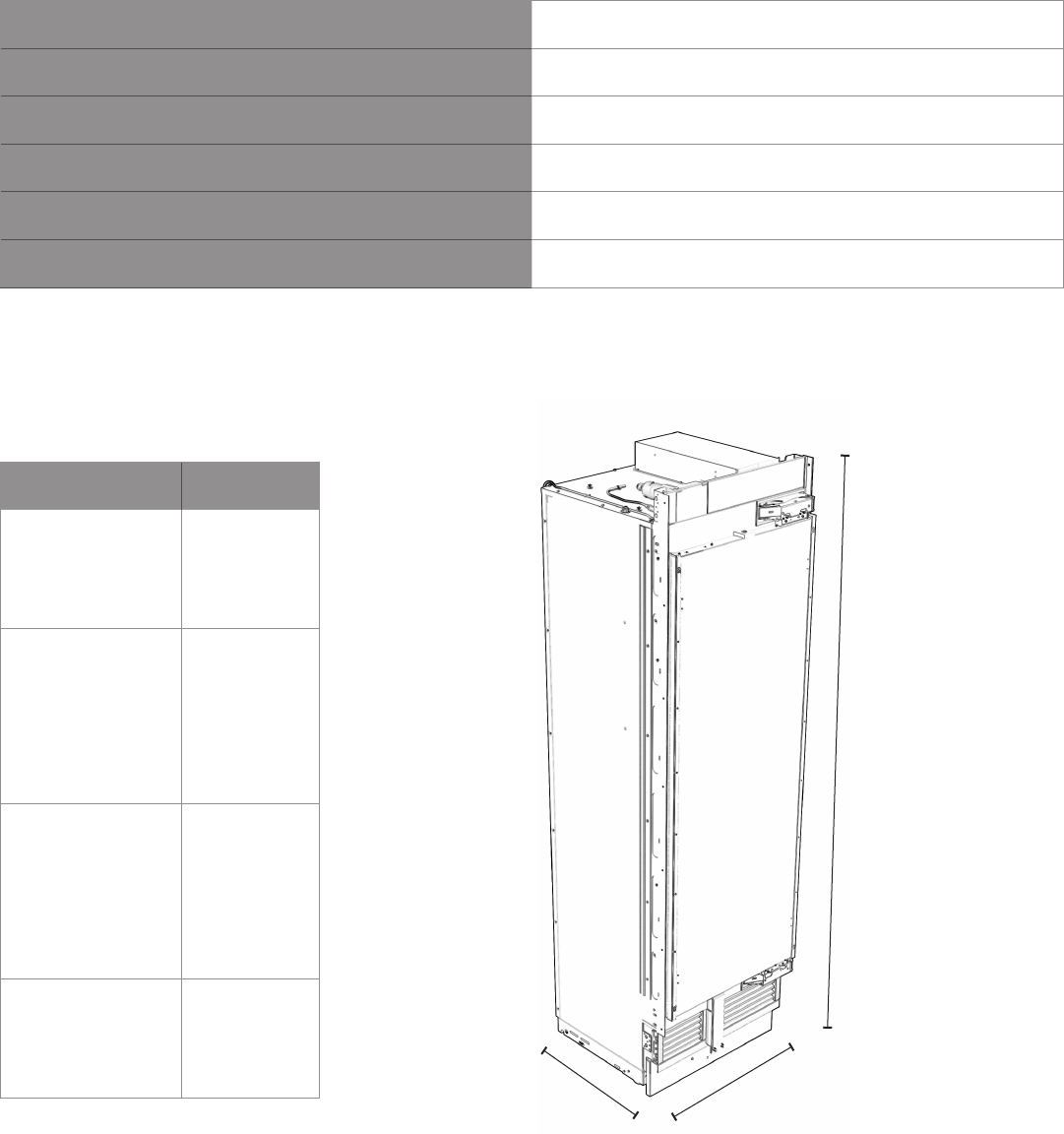

DIMENSIONS

PRODUCT

OVERALL PRODUCT NO PANEL

Width See unit width table below

Height 83-1/2" (212 cm)

Depth 23-7/8" (60.6 cm)

Raw Door Height 62-3/16" (157.9 cm)

Toe-kick Height 3-9/16" (9.1 cm)

Toe-kick Depth 3-1/4" – 4-7/8" (8.3 cm-12.4 cm)

PRODUCT WIDTH

Model Width

18"

JBZFR18IGX

JBZFL18IGX

17-3/4"

(45.1 cm)

24"

JBRFR24IGX

JBRFL24IGX

JBZFR24IGX

JBZFL24IGX

23-3/4"

(60.3 cm)

30"

JBRFR30IGX

JBRFL30IGX

JBZFR30IGX

JBZFL30IGX

29-3/4"

(75.6 cm)

36"

JBRFR36IGX

JBRFL36IGX

35-3/4"

(90.8 cm)

Width varies

(See table)

83 1/2"

23-7/8"
