User's Manual

JME-1123R user guide

1、 Feature

1．1． Transmission mode：RF

1．2． Frequency：2410~2473MHz

1．3． RFchannel quantity：64

1．4． Center of Channel: 2410/2411/242…2471/2472/2473MHz

1．5． Width of Channel: 1MHz

1．6． Data Send timing: <500us

1．7． Power：2pcs *7# batteries

1．8． Modulate mode：GFSK

1．9． Effective distance：12m

1．10． Quantity of connection ID：24Bits (8,388,608 ID can be used)

1．11． No. of keys：3key

1．12． Dots per inch : 500/1000 dpi selectable

1．13． Low battery indicating voltage:2.2V@5%

2、 Use guide

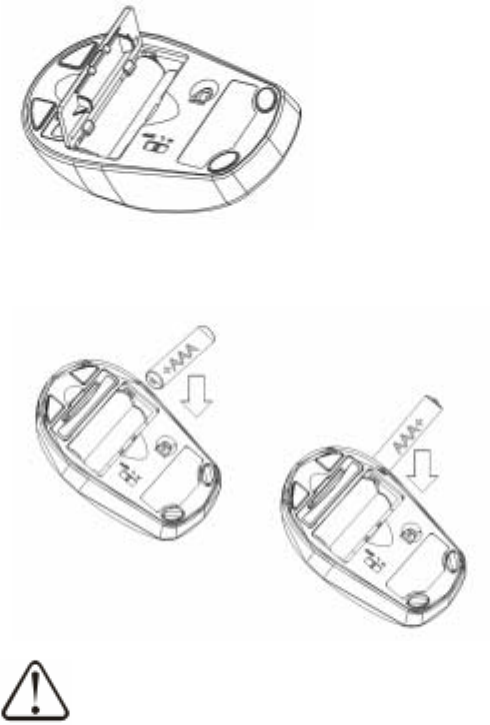

2．1 Battery Installation or Replacement

a. Unlock the battery cover

b. Remove the battery

c. install the new battery.

Caution:

Risk of explosion if battery is replaced by an incorrect type

Dispose of used batteries according to the instructions

PAGE 1
JME-1123R user guide 1、 Feature 1．1． Transmission mode：RF 1．2． Frequency：2410~2473MHz 1．3． RFchannel quantity：64 1．4． Center of Channel: 2410/2411/242…2471/2472/2473MHz 1．5． Width of Channel: 1MHz 1．6． Data Send timing: <500us 1．7． Power：2pcs *7# batteries 1．8． Modulate mode：GFSK 1．9． Effective distance：12m 1．10． Quantity of connection ID：24Bits (8,388,608 ID can be used) 1．11． No. of keys：3key 1．12． Dots per inch : 500/1000 dpi selectable 1．13． Low battery indicating voltage:2.
PAGE 2
. 2 Binding Need to check and bind for the first time of usage only, Please bind as below a. First, confirm the receiver has been connected to the computer. b. Move the switch from “OFF” to “L” or “H” to select appropriate DPI H: 1000 DPI L: 500 DPI OFF: Turn Off c. With the mouse close to the receiver within 50cm,press the left key within 5 seconds, when the receiver’s led twinkles 4 times,the mouse is ready to be used 2.3 Low battery The LED will turn red when the battery voltage is lower than 2.2V.
