BlueSet™ Wireless Headset Interface User Guide JK Audio

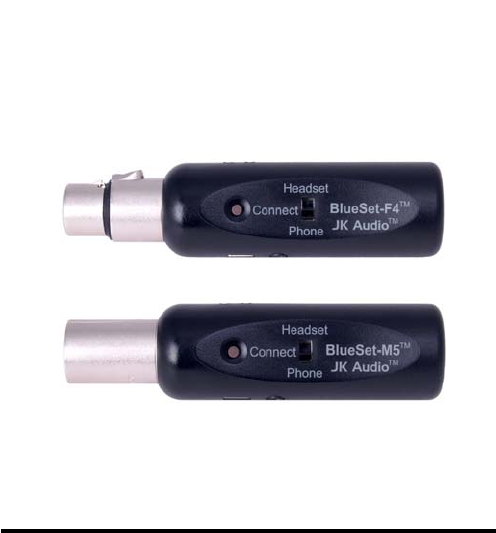

Description The BlueSet series of intercom headset adaptors use Bluetooth® Wireless Technology to add wireless freedom to your intercom system. BlueSet replaces the wired headset on your intercom belt pack, allowing you to connect to your Bluetooth enabled headset or cell phone. Female and male XLR four and five pin versions are available to connect to different types of intercom systems: BlueSet-F4 BlueSet-F5 BlueSet-M4 BlueSet-M5 The Bluetooth word mark and logos are owned by the Bluetooth SIG, Inc.
Introduction To achieve maximum battery capacity, BlueSet should be fully charged before its first use. While this battery will normally charge in about 2 1/2 hours, please allow 4-5 hours for this first charge. Connect the power supply cable to the mini USB connector on the BlueSet to charge the battery. The red LED will illuminate to indicate when the battery is charging. Please see page 9 for more information. This device can be used with the power cable connected if desired.
Bluetooth Wireless Technology BlueSet will be activated when you press the Connect button. The blue LED on the side of the unit will flash in different sequences to indicate the current connection status as described in the following sections. Connecting to a Bluetooth Cell Phone Set the Handset / Phone switch to the Phone position. Establishing a Bluetooth connection varies with different cell phones. On your phone, find and select the option to set up a connection.
Bluetooth Wireless Technology Enter “Yes” when asked to Bond with this device. Enter the pin number as "0000". When bonding is complete, the blue LED will flash at a rate of 1 sec on, 2 sec off. Once BlueSet has been added to your cell phone, subsequent connections can be made more quickly from Idle Mode. Tech Notes: There is a difference between “Pairing Mode” and “Idle Mode”. The first time you connect to a new device you must be in Pairing Mode.
Bluetooth Wireless Technology Bluetooth LED pattern to initiate Bonding Idle Mode 200 ms off, 200 ms on Initialize Blue LED Pairing Mode 100 ms off, 100 ms on Hold Connect button in > 5 sec to reach Pairing Mode the first time a new device is connected, > 2 sec thereafter to connect from Idle Mode Bluetooth LED pattern after Bonding Bonded 2 seconds off, 1 second on 6
Bluetooth Wireless Technology Connecting to a Bluetooth Headset Set the Handset / Phone switch to the Headset position. The first time you connect to a new headset, you should be in a “quiet” environment with no other Bluetooth enabled devices within range that might also be in Pairing Mode. Following manufacturer’s instructions, set your headset to Pairing Mode. Hold the Connect button on BlueSet in for at least 5 full seconds to activate Pairing Mode.
Power Power On/Off Pressing the Connect button will turn the BlueSet on. To turn the power off, press and hold the Connect button for a full five seconds. If left unused in Idle Mode or if a live call is disconnected, BlueSet will automatically disconnect Bluetooth in two minutes and power will be turned off. Power Up Sequence When reconnecting to a device that is still in BlueSet’s pairing history, the device that will be in Slave mode should be powered up first.
Power Connect the supplied cable to the mini USB Power jack on the side of the unit to recharge the internal battery. If the battery is almost fully discharged when the power cable is connected the red LED on the side of the unit will light steady to indicate the unit is receiving a slow charge. Then the red LED will blink while the unit receives a full charge before it resumes a steady light to indicate a slow charge to complete the charge cycle.
Other Features A 3.5 mm stereo output jack contains a mic level signal suitable for recording, with the beltpack headphone signal on the left channel and the Bluetooth return audio on the right. A small flat blade screwdriver can be used to adjust the Mic Trim pot on the back of the unit. This adjusts the level of the audio coming from the Bluetooth device as it is sent into the Belt Pack headset connector.
Specifications Output: Stereo Line Out: Impedance: Level: 1/8” (3.5mm) , 1000 ohms 15 mV RMS, (-34 dBu) nom. Bluetooth: Standard: Distance: Profile: Frequency response: Bluetooth 2.0 33 feet (10 meters) HF - full duplex voice 300 Hz - 3400 Hz Size: 1.1” x 4.4” (2.8 cm x 11.2 cm) Weight: 2.
FAQs ? What is the range of the Bluetooth transmitter/ receiver? ! BlueSet will transmit and receive audio signals up to 33 feet from your Bluetooth device. Maximum range of the paired device also determines the usable distance. Many cell phones and headsets have a maximum range of 10 feet.
FAQs ? What kind of intercom headset jack is this compatible with? ! BlueSet can be used to replace an electret or dynamic intercom headset. ? ! How long does it take to recharge the battery? ? ! How long will the charge on the battery last? ? ! How do I replace the battery in this unit? BlueSet can fully charge the internal battery in about 2 1/2 hours. These batteries do not have a “charging memory” and they can be recharged at any time without changing their life expectancy.
Declaration of Conformity BlueSet conforms Specifications: to the following Product Safety: AS/NZS 60950.1:2003 CAN/CSA-C22.2 No. 60950-01-03 UL Standard 60950-01 1st edition Nemko-CCL File Number NA201010004 ESD: EN 55024:1998 EN 61000-3-2 EN 61000-3-3 Emissions: EN 55022:2006 AS/NZS CISPR 22 (2002) FCC Part 15, Subpart B ICES-003 Bluetooth Radio: EN 300.328 FCC Part 15.
FCC-B Part 15 Compliance This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. The internal antennas used for this mobile transmitter must not be co-located or operated in conjunction with any other antenna or transmitter.
Warranty The model BlueSet is covered by a 2 year warranty to be free from defective workmanship and materials. In the event that the BlueSet needs repair, you must call us to get an authorization, and then carefully pack and ship it to us. You will pay for shipping to us and we will pay for return back to you, UPS ground. No free repairs will be made if the defect was caused by misuse, weather conditions, or other cause, except for defective workmanship or materials.
