Installation Instructions
OUO6050,00012B8 –19–14OCT05–2/2
PC8754 –UN–19OCT05

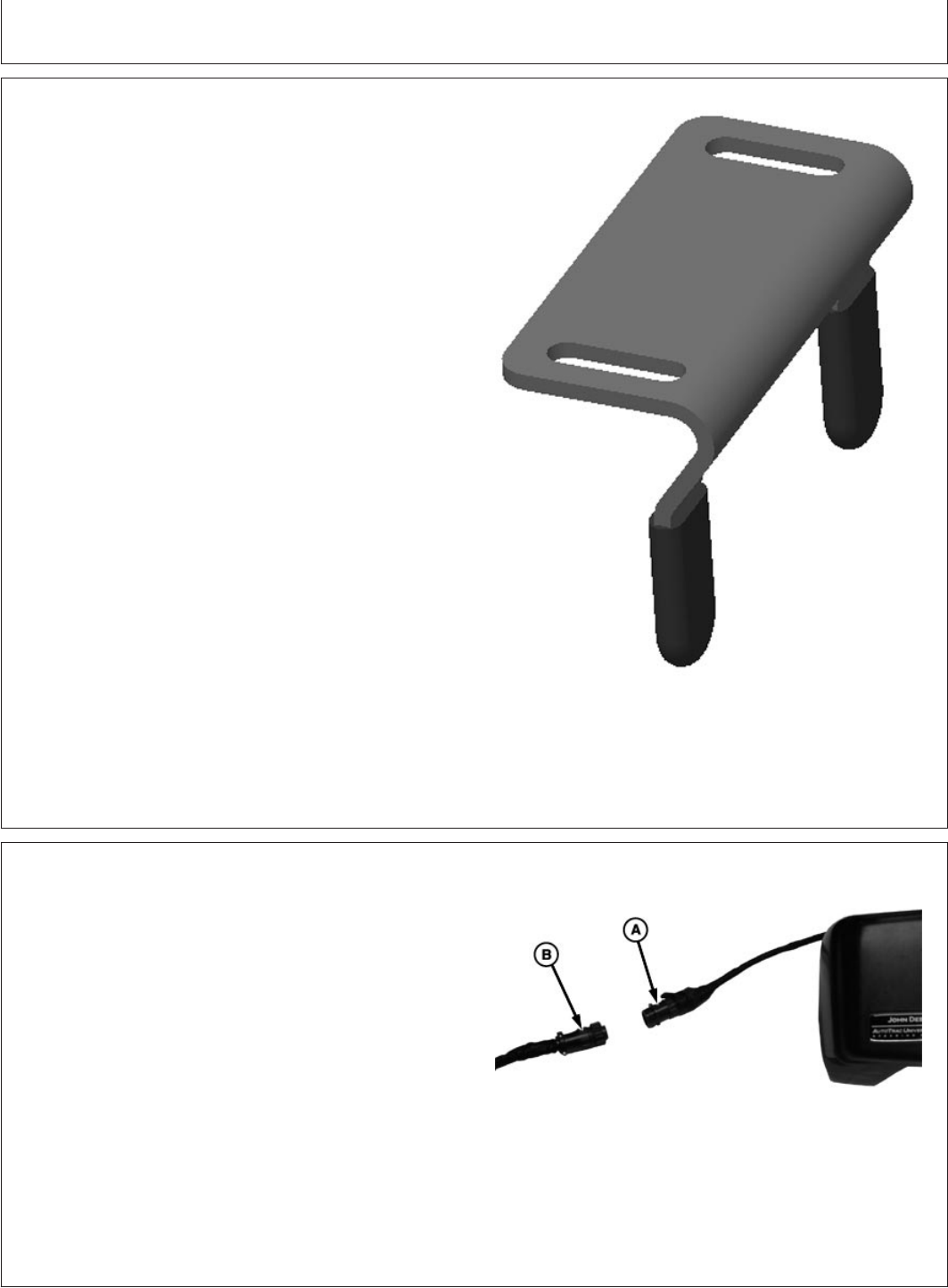

Anti-Rotation Bracket for Large Frame JD7XX0, JD8XX0, JD9XX0
1. Attach anti-rotation bracket (A) to steering unit (B) with
screws (C). Use slots to move bracket snug against
column.
2. Position steering unit on steering column.
NOTE: Hardware (D), (E), (F), (H), and (I) was retained
when original steering wheel was removed.
3. Attach lock washer (D) and nut (E) to steering wheel
rod.
IMPORTANT: Tighten all hardware to proper torque
according to vehicle manufacturer’s
specifications.
4. Attach washer (F), knob (G), washer (H), and nut (I) on
telescoping rod.
5. Insert cap (J) into knob.
OUO6050,0001470 –19–13OCT05–1/1
Connect Steering Motor Harness
PC8772 –UN–14OCT05
A—9-pin harness from Steering Wheel/Motor
Assembly
B—AutoTrac Universal Harness
Connect 9-pin harness from steering wheel/motor
assembly (A) to AutoTrac Universal harness (B).
PC20577 (22MAR06)
10
