Installation Instructions
OUO6050,0001471 –19–20OCT05–1/2

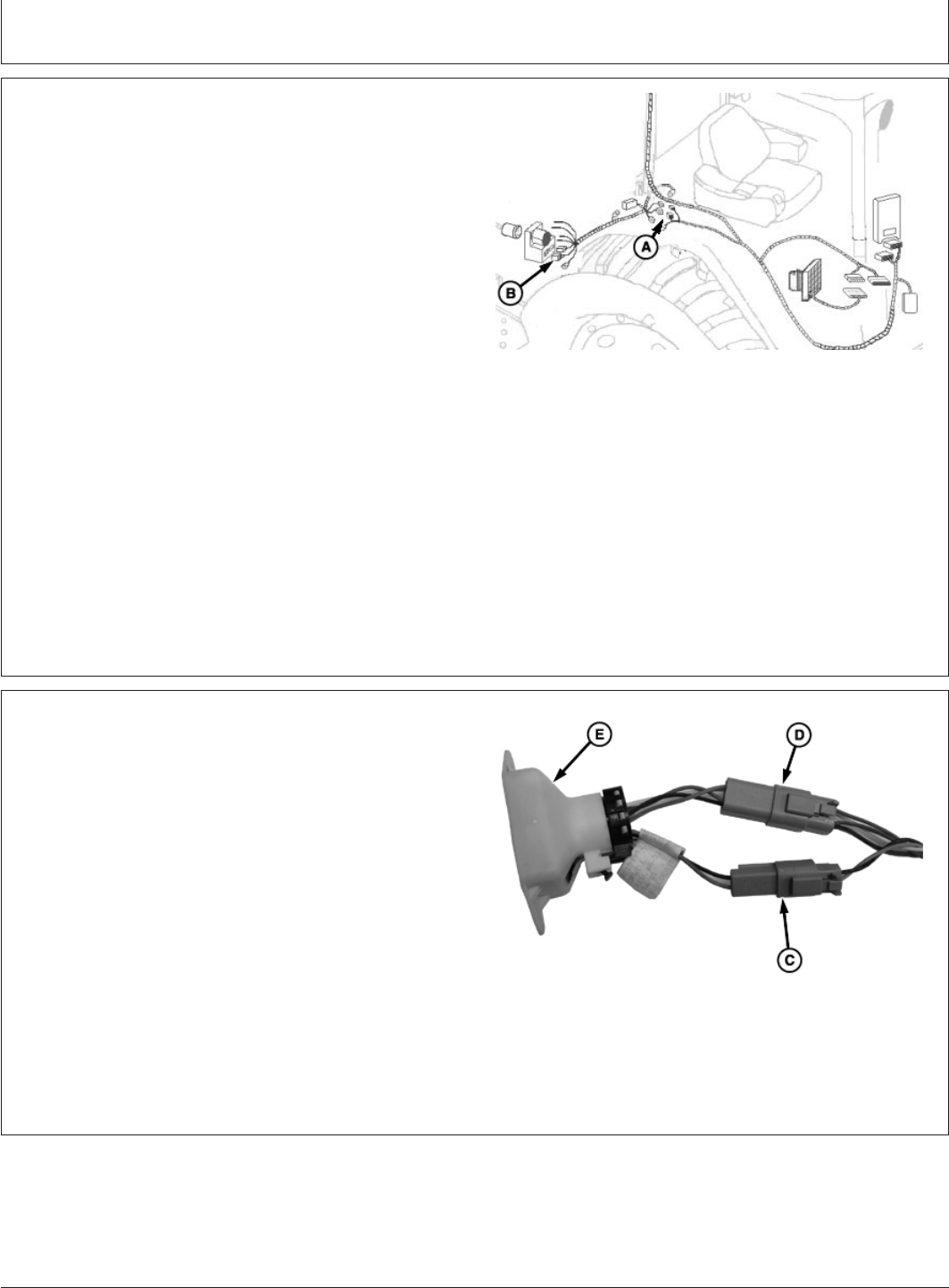

Connect ATU Harness to GreenStar Harness
PC8718 –UN–19OCT05
Routing and Installation View
A—AutoTrac Universal Connection Location for
the CAN Bus Extension
B—AutoTrac Universal Connection Location for
the Implement Connector
Depending on your vehicle’s harness configuration, the
ATU harness will be connected to the GreenStar harness
at one of the following locations:
GreenStar Ready Vehicles
Vehicles that are GreenStar Ready (or vehicles that have
GreenStar harnesses already installed) can be connected
at one of the following locations:
• 2- and 4- pin terminator connectors found at the CAN
bus extension (A) in the side console of a GreenStar
Ready tractor.
OR
• If equipped with an Implement Connector the ATU
harness can be connected at the 2- and 4- pin
connectors on the implement connector (B).
OUO6050,0001471 –19–20OCT05–2/2
PC8773 –UN–14OCT05
C—2-pin Power Connector
D—4-pin CAN Connector
E—Terminator
Non-GreenStar Ready Vehicles
Vehicles which are adding the GreenStar harness for the
first time can connect directly into the GreenStar harness
at the 2- and 4- pin terminator connectors.
NOTE: Depending upon the type of harness encountered,
the size and color of the terminators may vary.
