ATU Harness Connection Locations
Depending on your vehicle’s configuration, refer to
one of the following sections for additional harness
connection information.
• Harness connection location in GreenStar Ready tractor
side consoles
• Harness connection location for implement connectors
• Harness connection location to a terminator connector
on a GreenStar Harness
OUO6050,0001291 –19–20OCT05–1/6

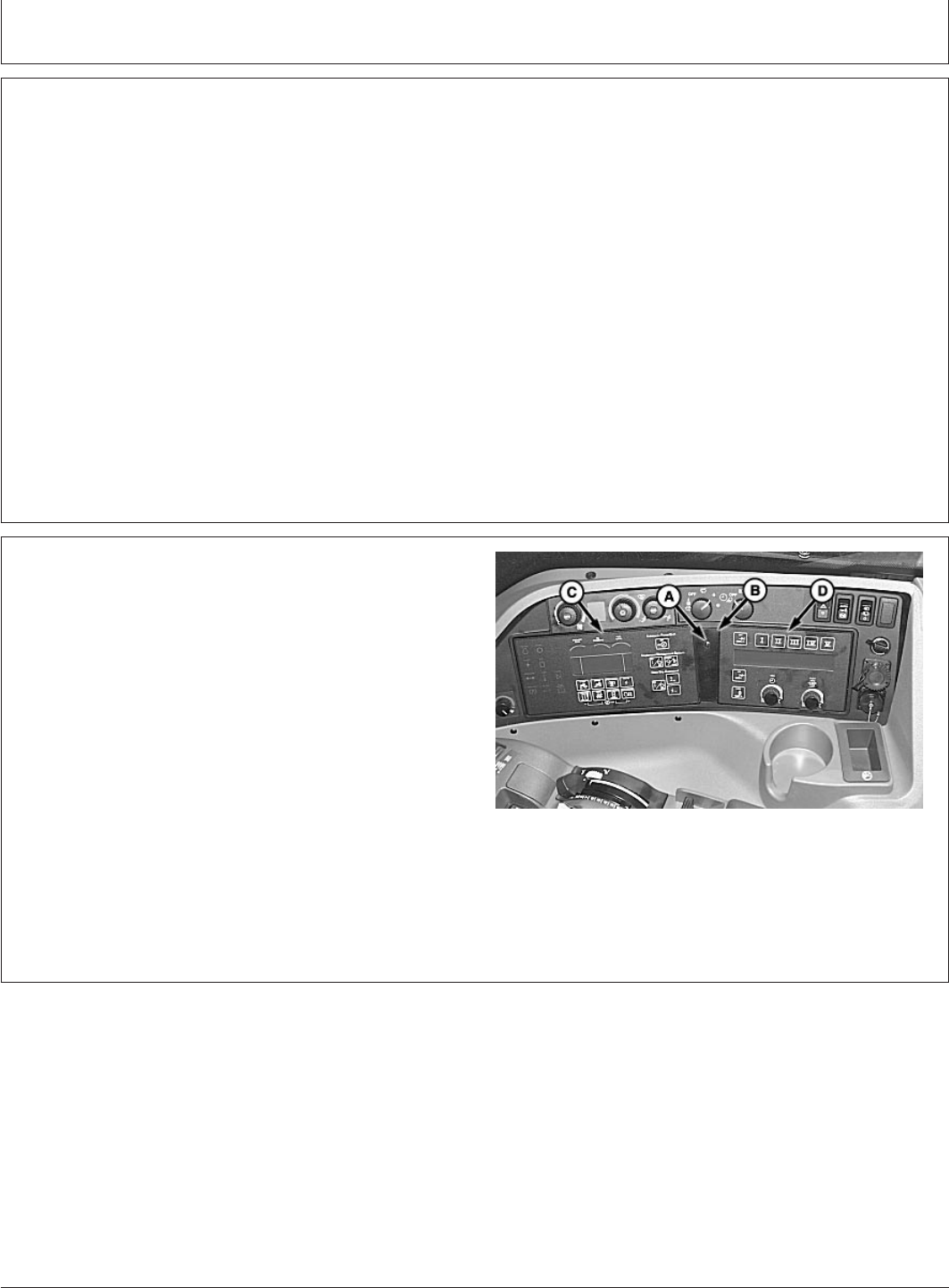

Harness Connection location in GreenStar
Ready Tractor Side Consoles
PC8731 –UN–30AUG05
A—Screw
B—Spacer
C—Panel
D—Panel
1. Remove and retain screw (A) and spacer (B).
2. Remove and disconnect panels (C and D).
Continued on next page
