Installation Instructions
OUO6050,0001294 –19–20OCT05–4/4
PC8720 –UN–23AUG05

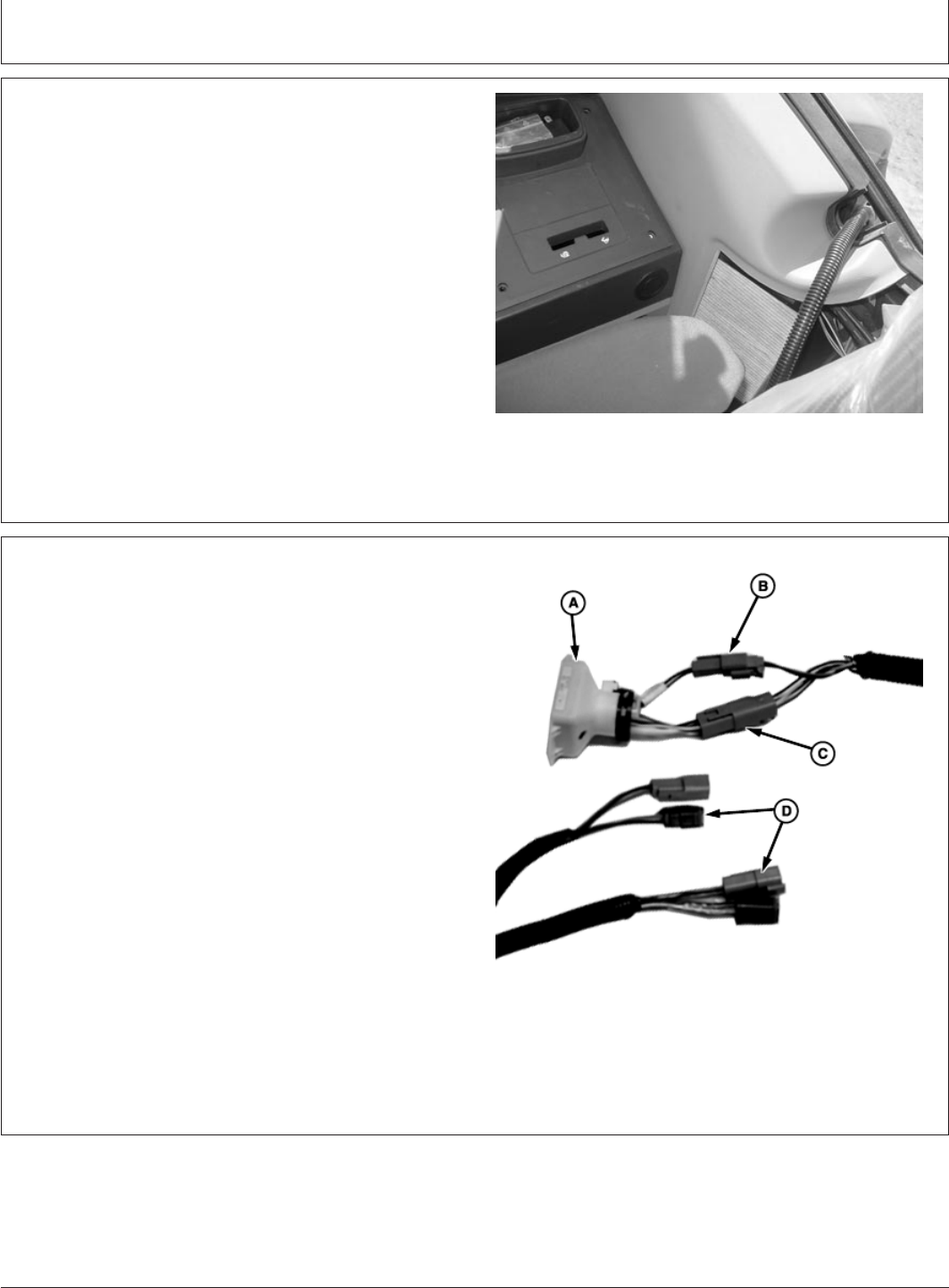

3. Route AutoTrac Universal harness through back of cab
window and connect to AutoTrac Universal Steering
motor.
OUO6050,0001472 –19–13OCT05–1/2
Connecting to a GreenStar Harness
Terminator
PC8778 –UN–14OCT05
A—Terminator
B—2-pin Connector
C—4-pin Connector
D—ATU Harness Connectors
1. Locate terminator with 2- and 4- pin connector.
2. Disconnect terminator connections.
Continued on next page
PC20577 (22MAR06)
16
Installation Instructions
032206
PN=18
