Installation Instructions
OUO6050,00012B1 –19–13OCT05–1/1

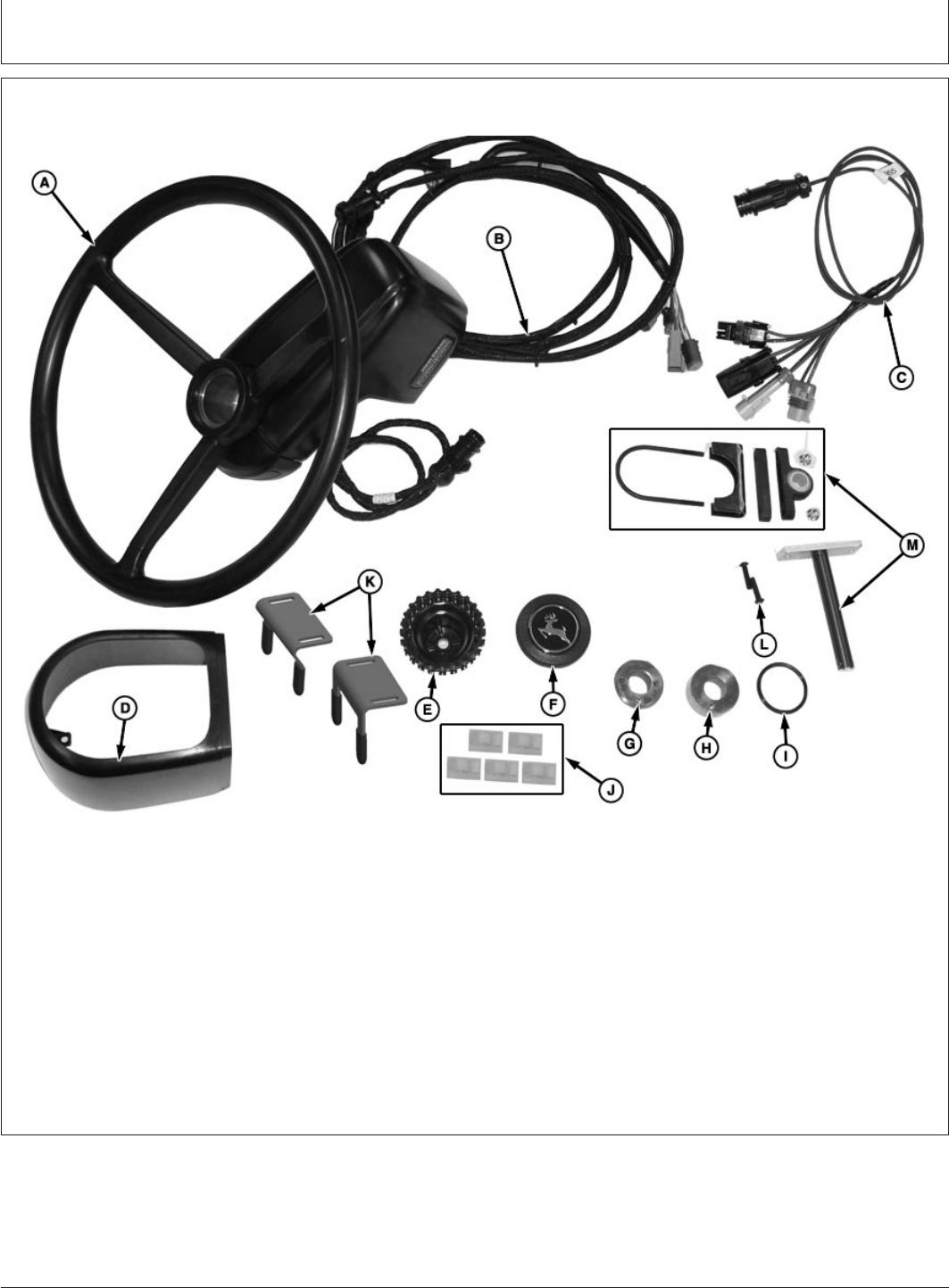

AutoTrac Universal Kit
PC8747 –UN–08SEP05
A—Steering Wheel/Motor D—ATU Cover Used with G—Tapered Spline Shaft K—Anti-Rotational Brackets
Assembly Anti-Rotation Bracket (M) Bushing for Consoles
B—AutoTrac Universal E—Steering Wheel Knob (Used H—Straight Spline Shaft L—Screws use with bracket
Harness to telescope steering bushing (K) and rod (M)
C—Operator Presence Seat wheel) I—Snap Ring M—Anti-Rotation Bracket for
Switch Harness (Optional) F—Steering Wheel Cap Cover J—Adhesive Harness Clips Circular Steering Columns
Also included in kit: shim kit, locking washer,
telescoping washers, manuals.
PC20577 (22MAR06)
2
