Installation Instructions
OUO6050,00012BA –19–13OCT05–2/2
PC8751 –UN–08SEP05
Ex. - JD4XX0, JD8X60, JD8X70 Series Tractors

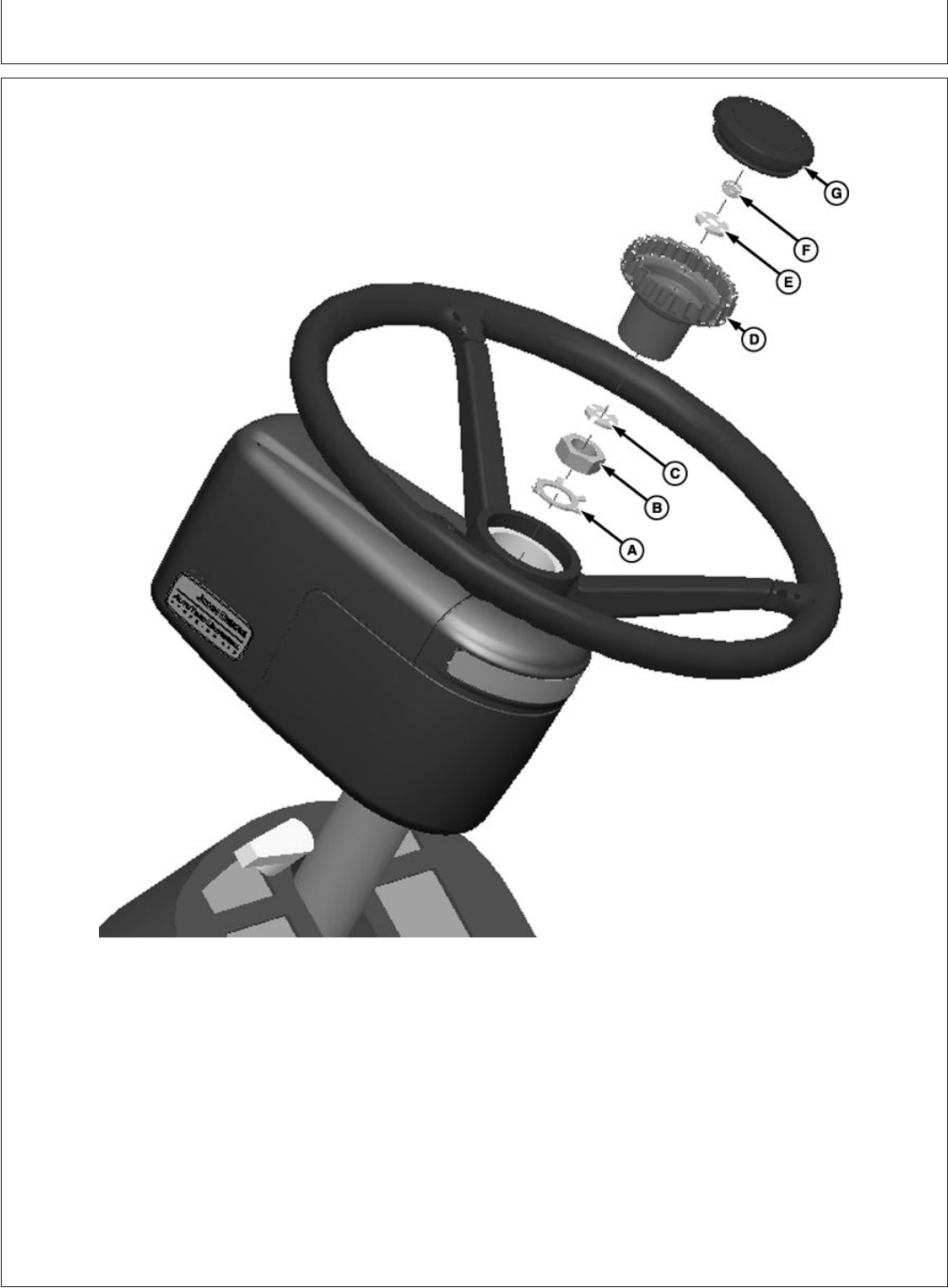

A—Lock Washer C—Washer E—Washer G—Cap
B—Nut D—Telescoping Knob F—Telescoping Rod Nut
IMPORTANT: Tighten all hardware to proper
torque according to vehicle
manufacturer’s specifications.
5. Position steering unit on steering column.
NOTE: Hardware (A), (B), (C), (E), and (F) was
retained when original steering wheel was
removed.
6. Attach lock washer (A), and nut (B) to steering
wheel rod.
7. Attach washer (C), knob (D), washer (E), and nut
(F) on telescoping rod.
8. Insert cap (G) into knob.
PC20577 (22MAR06)
