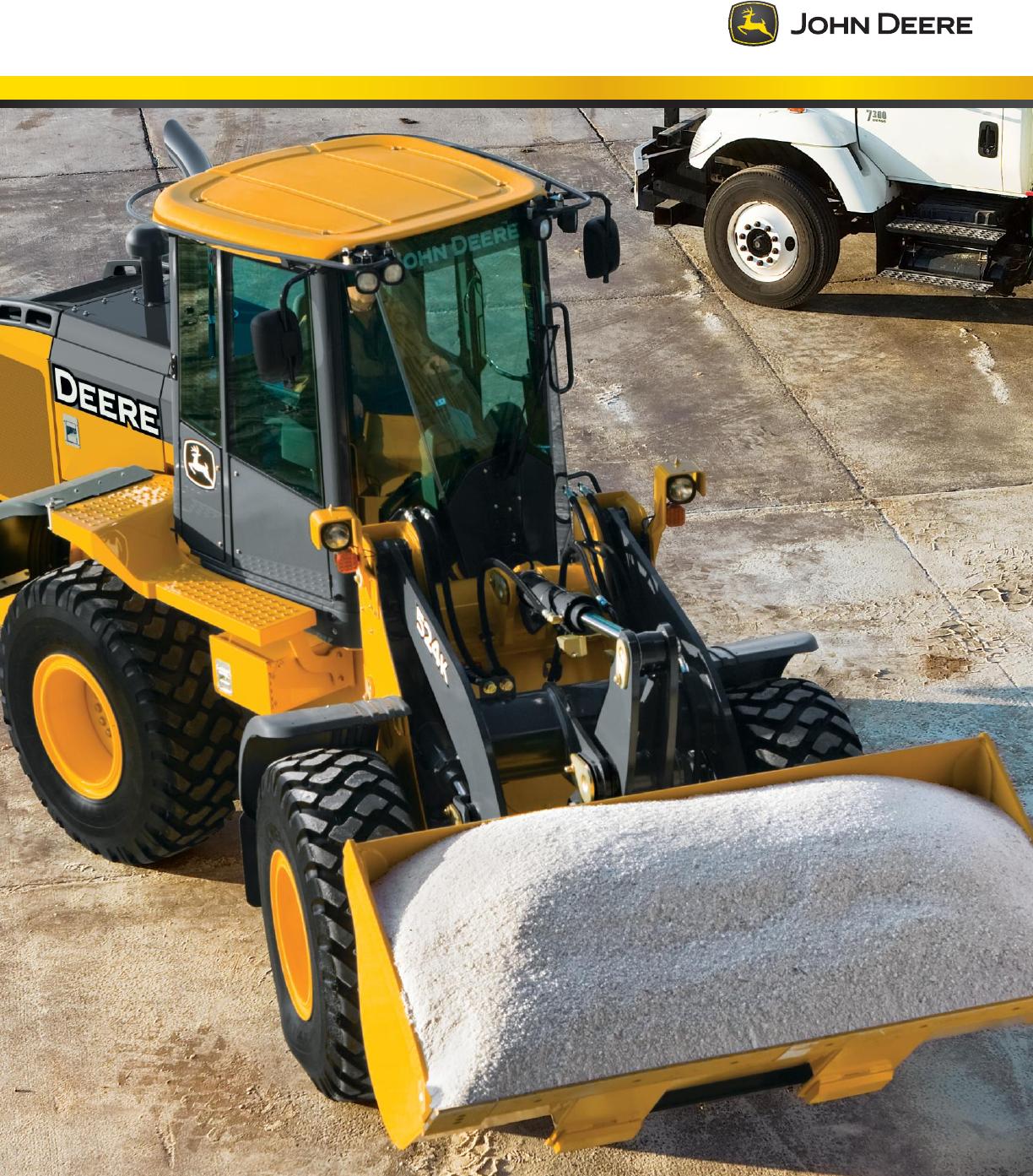

444k/524k/544k/ 624k/644k LOADERS 92–173 kW (124–232 net hp)
PowerTech™ diesels deliver impressive torque reserves that top out at a whopping 57 percent in the 624K. It’s a K-Series advantage that helps maintain good boom and bucket speed in and out of the pile. For heaped loads, even in wet or hard-packed material. K-Series Loaders ride on a wide stance that provides additional lateral stability for handling heavy loads and working on rough terrain. Overall balance is exceptional.
K-Series Specifications 444K 524K 544K 624K 644K Net Peak Power 92 kW (124 hp) 105 kW (141 hp) 121 kW (163 hp) 139 kW (186 hp) 173 kW (232 hp) / 171 kW (229 hp) Hybrid Bucket Capacity 1.9 m3 (2.5 cu. yd.) 2.1 m3 (2.75 cu. yd.) 2.3 m3 (3.0 cu. yd.) 2.7 m3 (3.5 cu. yd.) 3.2 m3 (4.25 cu. yd.) Z-Bar: Tipping Load (40-deg. full turn) 8047 kg (17,741 lb.) 8914 kg (19,652 lb.) 9428 kg (20,784 lb.) 11 979 kg (26,409 lb.) 12 879 kg (28,393 lb.) Breakout Force 7970 kg (17,570 lb.
Hard work made easier. What operator wouldn’t be more productive in the high-back air-ride seat of a K-Series Loader? Up-front, an enhanced multifunction monitor displays operating, diagnostic, and maintenance info on a color LCD screen with easy-on-the-eyes clarity. Generous tinted glass and a low-proƟle console allow a commanding view of the work ahead. The spacious and quiet cab boasts plenty of legroom and fatigue-beating ergonomics, including convenience features such as seat-mounted loader controls.
Available premium heated air-ride armchair seat adjusts multiple ways for extra comfort and cushioning. Spacious cab with a cooler compartment and beverage holder provides plenty of room to stow your stuff. Convenient 12-volt port powers cell phones and other electronic devices. Brake and throttle pedals are conveniently positioned, allowing plenty of legroom and easy entrance and exit. Adjustable automotive-style louvers provide effective airƠow to keep the glass clear and pressurized cab comfortable.
More power and control mean more productivity. If you’ve got maximum productivity in mind, the K-Series Loaders should be at the top of your list. But it’s not just their big torque reserves that make them such impressive performers. Single-lever joystick or two-lever Ɵngertip controls provide smooth, near-effortless control. Excavator-style hydraulics sense the load and deliver the Ơow needed for smooth combined functions and fast work cycles. You won’t Ɵnd a smoother-shifting loader, either.
3 1. Choose from single-lever joystick or two-lever Ɵngertip pilot-operated hydraulic controls. Joystick F-N-R selector provides convenient direction and full-range gear changes. Both include innovative Quick-Shift feature for push-button gear changes, one gear at a time. 2. Backlit touchpad in the expanded sealed-switch module controls keyless start and 24 other machine functions. Enables the operator to adjust boom-height kick-out and return-to-carry, and activate return-to-dig from the seat. 3.
Parallel lift that’s simply unparalleled. 8 9 Powerllel loaders deliver both powerful digging forces and parallel lift. Their innovative design allows load forces to work with, not against, the boom. For big breakout force, even in difƟcult digging. Impressive torque throughout the entire dump and rollback range enables Powerllel loaders to excel at a wide variety of material-handling tasks. But don’t just look for these John Deere advantages in the numbers on a spec sheet.
Powerllel’s unique design separates the bell crank from the cross tube, attaching instead to the loader frame via a Y-shaped link. This “free-Ơoating” bellcrank design allows load forces to work with, not against, the boom. For powerful breakout in tough digging. The Hi-Vis coupler fastens the attachment close to the machine to optimize stability with heavy loads. Unique Y-link, low-mounted boom cylinders, and Hi-Vis coupler provide clear visibility to the work tool and throughout the lift arc.
Looks just like a 644K, works like something else. You’ve probably already heard or read the claims about other hybrid-electric earthmoving machines. But our 644K Hybrid goes beyond burning less fuel and reducing emissions. Designed and reƟned with extensive customer input, it’s more like a hybrid of man and machine — delivering everyday operating advantages such as smooth propulsion, consistently quick and responsive hydraulics, fast ramp-climbing ability, and strong pushing power.
EPA IT4/EU Stage IIIB 6.8-L diesel runs at a constant 900, 1,200, 1,500, or 1,800 rpm. Constant speed reduces engine wear, noise levels, and fuel consumption. Top speed provides maximum power and productivity, while the slower settings increase efƟciency. 644K Hybrid delivers up to 25-percent better average fuel efƟciency than its conventional IT4 counterpart with a lockup torque converter. In applications such as V-pattern truck loading, fuel savings will be even larger.
Discover your options. K-Series Loaders come equipped with plenty of production-boosting features to help you handle almost anything you throw their way. But if yours isn’t just any application, we’ve got you covered with a wide variety of factory- or dealer-installed options. So you can equip your loader with exactly what you need to maximize your efforts and expand your opportunities. 1 2 3 12 13 1.
Embedded payload scale enables you to Ɵll each truck to its limit for maximum productivity. It’s available on all Z-Bar and High-Lift loaders. Powered cab pre-cleaner is a smart addition in high airborne-debris environments. Heated mirrors prevent fog and ice from obstructing the view and affecting productivity. Need to take productivity to another level? High-Lift option extends lift height up to 356 mm (14 in.).
Nothing runs like a Deere. 14 15 It’s all about uptime. So we gave the K-Series plenty of resources to help them succeed. All six loaders come equipped with traditional John Deere durability features. Such as heavy-duty wetsleeve diesels, Quad-Cool, and solid-state electrical systems. Reinforced articulation joints with double-tapered roller bearings. Plus, booms and mainframes so tough they’re warranted for three years or 10,000 hours. When you know how they’re built, you’ll run a Deere.
Four steel plates support the loader tower, extending pin life and protecting the boom-cylinder hoses. Sealed-switch module keeps out dust, moisture, and debris, and virtually never wears out. Proven marine-grade touchpad eliminates rocker switches and nearly 100 wires, and unsealed connections provide even longer life. Standard features such as bypass-start protection, automatic park brake, convenient handholds, and slipresistant steps help keep the operator out of harm’s way.
Stretches your dollars, not your service techs. Controlling daily owning and operating costs shouldn’t be a reach — and it’s not on a K-Series Loader. Same-side ground-level service points make quick work of the daily routine. Unique Quad-Cool system provides wideopen access to both sides of the coolers for easy cleanout. Extended service intervals let you work longer between changes.
Greasing is less messy, with centralized lube banks providing easy access to difƟcult-to-reach zerks. Conveniently located periodic lube and maintenance chart ensures that nothing gets overlooked. Inboard planetary Ɵnal drives and selfadjusting wet-disc brakes on 524K–644K are virtually maintenance-free. All daily service points including fuel are grouped on the left side for quick and convenient ground-level access. Hydraulically driven fan runs only as needed for efƟcient cooling.
444K Engine Manufacturer and Model Non-Road Emission Standard Cylinders Valves Per Cylinder Displacement Net Peak Power at 2,100 rpm (ISO 9249) Net Peak Torque at 1,400 rpm (ISO 9249) Net Torque Rise Fuel System (electronically controlled) Lubrication Aspiration Air Cleaner Fan Drive Electrical System Batteries (2 – 12 volt) Transmission System Type Torque Converter Shift Control Operator Interface Shift Modes Maximum Travel Speeds (with 17.
Hydraulic System/Steering (continued) Hydraulic Cycle Times Raise Dump Lower (Ơoat down) Total Dimensions and SpeciƟcations with Pin-On Bucket 444K Z-BAR / HIGH-LIFT / POWERLLEL Z-Bar High-Lift 5.9 sec. 5.9 sec. 1.0 sec. 1.0 sec. 2.4 sec. 2.4 sec. 9.3 sec. 9.3 sec. Powerllel 5.3 sec. 1.1 sec. 1.9 sec. 8.3 sec. M Cab and Canopy N A G I H B J L D K E C F 444K Z-BAR AND HIGH-LIFT LOADERS WITH PIN-ON BUCKET Z-Bar High-Lift Dimensions with Bucket 1.9-m3 (2.5 cu. yd.
Dimensions and SpeciƟcations with Hi-Vis Coupler and Hook-On Bucket 444K Z-BAR / HIGH-LIFT / POWERLLEL M M Cab and Canopy N N A I G Cab and Canopy G J B H J B H L L D K A I F E C 444K Z-BAR AND HIGH-LIFT LOADERS WITH QUICK-COUPLER AND HOOK-ON BUCKET D K E C F 444K POWERLLEL LOADER WITH QUICK-COUPLER AND HOOK-ON BUCKET Z-Bar Z-Bar High-Lift High-Lift Powerllel Powerllel 1.5-m3 (2.0 cu. yd.) 1.9-m3 (2.5 cu. yd.) 1.5-m3 (2.0 cu. yd.) 1.9-m3 (2.5 cu. yd.) 1.5-m3 (2.0 cu. yd.) 1.
Dimensions and SpeciƟcations with Hi-Vis Coupler and Construction Forks 444K Z-BAR / HIGH-LIFT / POWERLLEL H H Cab and Canopy Cab and Canopy J O G L B K I L B K N D E C F Dimensions with Forks Height to Top of Cab and Canopy Hood Height Ground Clearance Length from Centerline to Front Axle Wheelbase Overall Length, Forks on Ground Height to Hinge Pin, Fully Raised H Reach, Fully Raised I Fork Height, Fully Raised Z-Bar 1.22-m (48 in.) tine length 3.17 m (10 ft. 5 in.) 2.19 m (7 ft. 2 in.
Adjustments to Operating Weights and Tipping Loads with Buckets 444K Z-BAR / HIGH-LIFT / POWERLLEL Adjustments to operating weights, tipping loads, and tires are based on Z-bar machine with pin-on 1.9-m3 (2.5 cu. yd.) general-purpose bucket with bolt-on cutting edge, ROPS cab, rear cast bumper/counterweight, transmission side-frame guards, bottom guards, standard tires, full fuel tank, and 79-kg (175 lb.) operator* Add (+) or deduct (–) kg (lb.
Bucket Selection Guides* (continued) 444K HIGH-LIFT / POWERLLEL 4.9 (6.
524K Engine Manufacturer and Model Non-Road Emission Standard Cylinders Valves Per Cylinder Displacement Net Peak Power (ISO 9249) Net Peak Torque (ISO 9249) Net Torque Rise Fuel System (electronically controlled) Lubrication Aspiration Air Cleaner Fan Drive Electrical System Batteries (2 – 12 volt) Transmission System Type Torque Converter Shift Control Operator Interface Shift Modes Maximum Travel Speeds (with 20.
Hydraulic System/Steering (continued) Hydraulic Cycle Times Raise Dump Lower (Ơoat down) Total Dimensions and SpeciƟcations with Pin-On Bucket 524K Z-BAR / HIGH-LIFT Z-Bar 6.1 sec. 1.4 sec. 3.0 sec. 10.5 sec. High-Lift 6.1 sec. 1.4 sec. 3.0 sec. 10.5 sec. M Cab and Canopy N A G I J H B L D K E C F 524K Z-BAR AND HIGH-LIFT LOADERS WITH PIN-ON BUCKET Z-Bar High-Lift Dimensions with Bucket 2.1-m3 (2.75 cu. yd.) general-purpose with bolt-on edge 2.1-m3 (2.75 cu. yd.
Dimensions and SpeciƟcations with Hi-Vis Coupler and Hook-On Bucket 524K Z-BAR / HIGH-LIFT M Cab and Canopy N A I G J B H L D K E C F 524K Z-BAR AND HIGH-LIFT LOADERS WITH QUICK-COUPLER AND HOOK-ON BUCKET Z-Bar Z-Bar High-Lift High-Lift 1.9-m3 (2.5 cu. yd.) general- 2.1-m3 (2.75 cu. yd.) general- 1.9-m3 (2.5 cu. yd.) general- 2.1-m3 (2.75 cu. yd.) generalpurpose with bolt-on edge purpose with bolt-on edge purpose with bolt-on edge purpose with bolt-on edge A Height to Top of Cab and Canopy 3.
Dimensions and SpeciƟcations with Hi-Vis Coupler and Construction Forks 524K Z-BAR / HIGH-LIFT H Cab and Canopy O J A G I L B K M N D F E C 524K Z-BAR AND HIGH-LIFT LOADERS WITH QUICK-COUPLER AND HOOK-ON CONSTRUCTION FORKS Z-Bar Z-Bar High-Lift High-Lift Dimensions with Forks 1.22-m (48 in.) tine length 1.52-m (60 in.) tine length 1.22-m (48 in.) tine length 1.52-m (60 in.) tine length A Height to Top of Cab and Canopy 3.25 m (10 ft. 8 in.) 3.25 m (10 ft. 8 in.) 3.25 m (10 ft. 8 in.) 3.
Adjustments to Operating Weights and Tipping Loads with Buckets 524K Z-BAR / HIGH-LIFT Adjustments to operating weights, tipping loads, and tires are based on Z-bar machine with pin-on 2.1-m3 (2.75 cu. yd.) general-purpose bucket with bolt-on cutting edge, ROPS cab, rear cast bumper/counterweight, transmission side-frame guards, bottom guards, standard tires, full fuel tank, and 79-kg (175 lb.) operator* Add (+) or deduct (–) kg (lb.
Bucket Selection Guides* (continued) 524K HIGH-LIFT 4.9 (6.5) LOOSE MATERIALS 4.6 (6.0) 4.2 (5.5) 3.4 (4.5) 3.0 (4.0) d L um L o oa 2.3 (3.0) al eL rm ti v No va 2.7 (3.5) x im ser Ma Con BUCKET SIZE m3 (cu. yd.) 3.8 (5.0) ad oa d Deere 2.1-m3 (2.75 cu. yd.) General-Purpose Bucket 1.9 (2.5) 1.5 (2.0) 1.1 (1.5) 0.8 (1.0) lb./cu. yd.
544K Engine Manufacturer and Model Non-Road Emission Standard Cylinders Valves Per Cylinder Displacement Net Peak Power (ISO 9249) Net Peak Torque (ISO 9249) Net Torque Rise Fuel System (electronically controlled) Lubrication Aspiration Air Cleaner Fan Drive Electrical System Batteries (2 – 12 volt) Transmission System Type Torque Converter Shift Control Operator Interface Shift Modes Maximum Travel Speeds (with 20.
Hydraulic System/Steering (continued) Hydraulic Cycle Times Raise Dump Lower (Ơoat down) Total Dimensions and SpeciƟcations with Pin-On Bucket 544K Z-BAR / HIGH-LIFT / POWERLLEL Z-Bar High-Lift 5.8 sec. 5.8 sec. 1.2 sec. 1.2 sec. 3.2 sec. 3.2 sec. 10.2 sec. 10.2 sec. Powerllel 5.8 sec. 1.2 sec. 2.5 sec. 9.5 sec. M Cab and Canopy N A G I J H B L D K E C F 544K Z-BAR AND HIGH-LIFT LOADERS WITH PIN-ON BUCKET Z-Bar Z-Bar High-Lift High-Lift Narrow 2.3-m3 (3.0 cu. yd.) Wide 2.3-m3 (3.0 cu. yd.
Dimensions and SpeciƟcations with Hi-Vis Coupler and Hook-On Bucket 544K Z-BAR / HIGH-LIFT / POWERLLEL M M Cab and Canopy Cab and Canopy N I G N A I G J B H A J B H L L D K E D C F 544K Z-BAR AND HIGH-LIFT LOADERS WITH QUICK-COUPLER AND HOOK-ON BUCKET K E C F 544K POWERLLEL LOADER WITH QUICK-COUPLER AND HOOK-ON BUCKET Z-Bar Z-Bar High-Lift High-Lift Powerllel Powerllel 1.9-m3 (2.5 cu. yd.) 2.3-m3 (3.0 cu. yd.) 1.9-m3 (2.5 cu. yd.) 2.3-m3 (3.0 cu. yd.) 1.9-m3 (2.5 cu. yd.) 2.
Dimensions and SpeciƟcations with Hi-Vis Coupler and Construction Forks 544K Z-BAR / HIGH-LIFT / POWERLLEL H H Cab and Canopy Cab and Canopy J O G L B K I L B K N D F E C M 544K Z-BAR AND HIGH-LIFT LOADERS WITH QUICK-COUPLER AND HOOK-ON CONSTRUCTION FORKS Dimensions with Forks A B C D E F A G I M J O A Height to Top of Cab and Canopy Hood Height Ground Clearance Length from Centerline to Front Axle Wheelbase Overall Length, Forks on Ground G Height to Hinge Pin, Fully Raised H Reac
Adjustments to Operating Weights and Tipping Loads with Buckets 544K Z-BAR / HIGH-LIFT / POWERLLEL Adjustments to operating weights, tipping loads, and tires are based on Z-bar machine with pin-on 2.3-m3 (3.0 cu. yd.) general-purpose bucket with bolt-on cutting edge, ROPS cab, rear cast bumper/counterweight, transmission side-frame guards, bottom guards, standard tires, full fuel tank, and 79-kg (175 lb.) operator* Add (+) or deduct (–) kg (lb.
Bucket Selection Guides* (continued) 544K HIGH-LIFT / POWERLLEL 4.9 (6.5) LOOSE MATERIALS 4.6 (6.0) 4.2 (5.5) 3.4 (4.5) ad Lo um d x im Loa Ma al rm ad No s er v at 3.0 (4.0) C on i ve Lo BUCKET SIZE m3 (cu. yd.) 3.8 (5.0) 2.7 (3.5) 2.3 (3.0) Deere 2.3-m3 (3.0 cu. yd.) General-Purpose Bucket 1.9 (2.5) 1.5 (2.0) 1.1 (1.5) 0.8 (1.0) lb./cu. yd.
624K Engine Manufacturer and Model Non-Road Emission Standard Cylinders Valves Per Cylinder Displacement Net Peak Power (ISO 9249) Net Peak Torque (ISO 9249) Net Torque Rise Fuel System (electronically controlled) Lubrication Aspiration Air Cleaner Fan Drive Electrical System Batteries (2 – 12 volt) Transmission System Type Torque Converter Shift Control Operator Interface Shift Modes Maximum Travel Speeds (with 20.
Hydraulic System/Steering (continued) Hydraulic Cycle Times Raise Dump Lower (Ơoat down) Total Dimensions and SpeciƟcations with Pin-On Bucket 624K Z-BAR / HIGH-LIFT / POWERLLEL / TOOL CARRIER Z-Bar High-Lift 5.9 sec. 5.9 sec. 1.3 sec. 1.3 sec. 2.7 sec. 2.7 sec. 9.9 sec. 9.9 sec. Powerllel 5.9 sec. 1.4 sec. 2.8 sec. 10.1 sec. Tool Carrier 5.6 sec. 3.0 sec. 2.7 sec. 11.3 sec.
Dimensions and SpeciƟcations with Hi-Vis Coupler and Hook-On Bucket 624K Z-BAR / HIGH-LIFT / POWERLLEL / TOOL CARRIER M M Cab and Canopy N B L D K E C F 624K Z-BAR AND HIGH-LIFT LOADERS WITH QUICK-COUPLER AND HOOK-ON BUCKET A I G J H N A I G Cab and Canopy J H B L K D E C F 624K POWERLLEL LOADER WITH QUICK-COUPLER AND HOOK-ON BUCKET M Cab and Canopy N A G I H J B L 38 39 D C E F K 624K TOOL CARRIER LOADER WITH QUICK-COUPLER AND HOOK-ON BUCKET Z-Bar High-Lift Powerllel To
Dimensions and SpeciƟcations with Hi-Vis Coupler and Construction Forks 624K Z-BAR / HIGH-LIFT / POWERLLEL / TOOL CARRIER H H Cab and Canopy Cab and Canopy J O G I L B K M J O A A G I L B K D C E F 624K Z-BAR AND HIGH-LIFT LOADERS WITH QUICK-COUPLER AND HOOK-ON CONSTRUCTION FORKS H N C E F 624K POWERLLEL LOADER WITH QUICK-COUPLER AND HOOK-ON CONSTRUCTION FORKS Cab and Canopy J O D N M G A I L K M Dimensions with Forks A B C D B N D F E C 624K TOOL CARRIER LOADER WITH QU
Adjustments to Operating Weights and Tipping Loads with Buckets 624K Z-BAR / HIGH-LIFT / POWERLLEL / TOOL CARRIER Adjustments to operating weights, tipping loads, and tires are based on Z-bar machine with pin-on 2.7-m3 (3.5 cu. yd.) general-purpose bucket with bolt-on cutting edge, ROPS cab, rear cast bumper/counterweight, transmission side-frame guards, bottom guards, standard tires, full fuel tank, and 79-kg (175 lb.) operator* Add (+) or deduct (–) kg (lb.
Bucket Selection Guides* (continued) 624K POWERLLEL / TOOL CARRIER 4.9 (6.5) LOOSE MATERIALS 4.2 (5.5) BUCKET SIZE m3 (cu. yd.) 3.8 (5.0) 3.4 (4.5) 3.0 (4.0) 2.7 (3.5) Deere 2.7-m3 (3.5 cu. yd.) General-Purpose Bucket 2.3 (3.0) Co 1.9 (2.5) nse r va No ti ve 1.5 (2.0) r ma Ma x im um l Lo Loa ad d L oa d 1.1 (1.5) 0.8 (1.0) lb./cu. yd.
644K Engine Manufacturer and Model Non-Road Emission Standard Cylinders Valves Per Cylinder Displacement Net Peak Power (ISO 9249) Net Peak Torque (ISO 9249) Net Torque Rise Fuel System (electronically controlled) Lubrication Aspiration Air Cleaner Fan Drive Electrical System Batteries (2 – 12 volt) Transmission System 644K Z-BAR / HIGH-LIFT / POWERLLEL™ John Deere PowerTech™ PSX John Deere PowerTech™ PVX 6068 6090 EPA Interim Tier 4/EU Stage EPA Interim Tier 4/ IIIB with Hybrid-Electric Drive EU Stage III
Hydraulic System/Steering Pump (loader and steering) Maximum Rated Flow at 6895 kPa (1,000 psi) and 2,350 rpm System Relief Pressure (loader and steering) Loader Controls 644K Z-BAR / HIGH-LIFT / POWERLLEL Variable-displacement, axial-piston pump; closed-center, pressure-compensating system 310 L/m (82 gpm) 25 166 kPa (3,650 psi) 2-function valve; joystick control or Ɵngertip controls; hydraulic-function enable/disable; optional 3rd- and 4th-function valve with auxiliary lever Steering (conforms to ISO 50
Dimensions and SpeciƟcations with Hi-Vis Coupler and Hook-On Bucket 644K Z-BAR / HIGH-LIFT / POWERLLEL M M Cab and Canopy Cab and Canopy N N A A I G I G J B H L D K E J H B L D C K E C F F 644K Z-BAR AND HIGH-LIFT LOADERS WITH QUICK-COUPLER AND HOOK-ON BUCKET 644K POWERLLEL LOADER WITH QUICK-COUPLER AND HOOK-ON BUCKET Z-Bar High-Lift Powerllel 3.1-m3 (4.0 cu. yd.) general-purpose 3.1-m3 (4.0 cu. yd.) general-purpose 3.1-m3 (4.0 cu. yd.
Dimensions and SpeciƟcations with Hi-Vis Coupler and Construction Forks 644K Z-BAR / HIGH-LIFT / POWERLLEL H H Cab and Canopy Cab and Canopy J O I L B K N M D F E A Height to Top of Cab and Canopy B Hood Height C Ground Clearance D Length from Centerline to Front Axle E Wheelbase F Overall Length, Forks on Ground G Height to Hinge Pin, Fully Raised H Reach, Fully Raised I Fork Height, Fully Raised J Maximum Reach, Fork Level K Fork Height, Maximum Reach L Reach, Ground Level M Depth Below
Adjustments to Operating Weights and Tipping Loads with Buckets 644K Z-BAR / HIGH-LIFT / POWERLLEL Adjustments to operating weights, tipping loads, and tires are based on Z-bar machine with pin-on 3.1-m3 (4.0 cu. yd.) general-purpose bucket with bolt-on cutting edge, ROPS cab, rear cast bumper/counterweight, transmission side-frame guards, bottom guards, standard tires, full fuel tank, and 79-kg (175 lb.) operator* Add (+) or deduct (–) kg (lb.
Additional equipment Key: l Standard s Optional or special 444 l l l l l l l l l l l l 524 l l l l l l l l l l l l 544 l l l l l l l l l l l l 624 l l l l l l l l l l l l s s s s s s 644 l s l l l l l l l l l l l s s s s s s s s s s s s s l l l l l l l l l l l l l l l l l l l l l l l l l l s s s l s s l s s l s s l s s l s s l s l s s l s l s s l s l l l l l l l l l l l l l l l l s s s l l l l l l l l l l l s s s l l l l l l l l l l l s s s l l l l l l l l l l l s s s
Additional equipment Key: l Standard s Optional or special 444 l s s s l l l 524 l s s s l l l 544 l s s s l l l 624 l s s s l l l 644 l l s s l l l s s s s s s s s s s l l l l l l l l l l l l s s l l l l l l s s s s s s s s l l s s l l l l l l s s s s s s s s l l s s l l l l l l s s s s s s s s l l s s l l l l l l s s s s s s s s l l s s l l l l l l s s s s s s s s l s s l s l s s l s s s l s s s s s s s s s s s s s s s s s s s s s s s s s s Operator’s Station C
Bucket Selection Guides* (continued) 644K HIGH-LIFT / POWERLLEL 6.8 (9.0) LOOSE MATERIALS 6.5 (8.5) 6.1 (8.0) 5.7 (7.5) BUCKET SIZE m3 (cu. yd.) 5.3 (7.0) 4.9 (6.5) 4.6 (6.0) 4.2 (5.5) 3.8 (5.0) 3.4 (4.5) Deere 3.2-m3 (4.25 cu. yd.) General-Purpose Bucket 3.0 (4.0) 2.7 (3.5) 2.3 (3.0) Co ns er va ti v No eL oa 1.9 (2.5) rm d al L Ma o ad x im um Loa d 1.1 (2.0) lb./cu. yd.
