Installation & Assembly

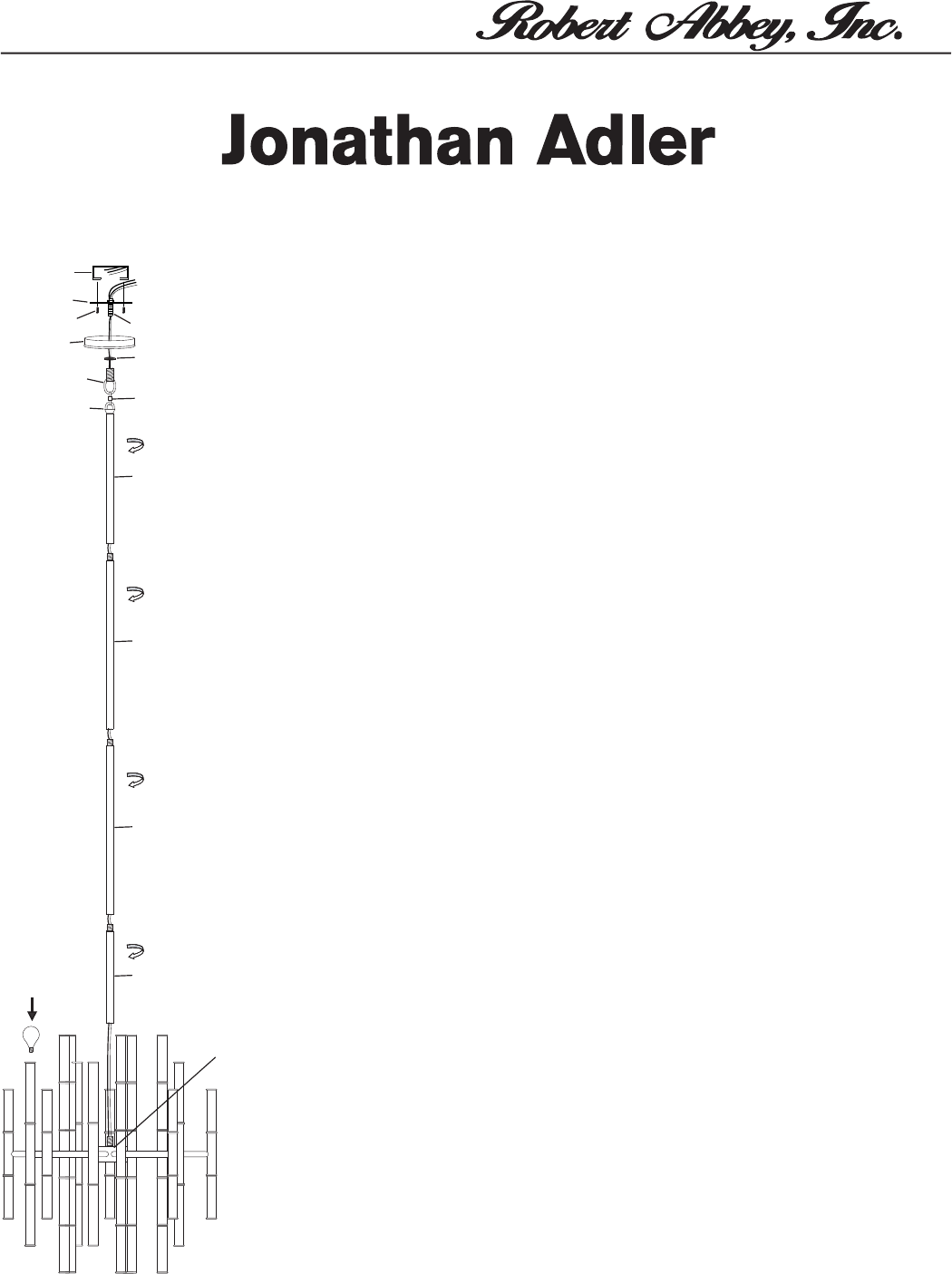

ASSEMBLY INSTRUCTIONS FOR YOUR
MEURICE 30 LIGHT CHANDELIER
654
"J BOX"
(A)
(B)
(C)
(D)
(E)
(F)
(G)
(H)
(I)
(I)
(I)
(J)
(I)
Assembly Instructions
SHUT OFF MAIN ELECTRICAL SUPPLY FROM THE MAIN FUSE BOX/
CIRCUIT BREAKER.
Caution: To clean, use a soft cloth only. Do not use any chemical or abrasive
cleaners.
1. Remove all parts carefully from the box.
2. Unthread nipple (C) from hang straight (F). Do not remove cross bar (A) from
threaded nipple (C).
3. Afx cross bar (A) to “J BOX” using screws (B) provided.
4. Measure desired drop for xture to hang from “J BOX.” Add/remove extension tubes
(I) accordingly. Once desired extension tube (I) length is reached, guide wiring from
housing (J) through extensions (I) being observant not to cut wiring. Thread bottom
extension tube (I) onto threaded nipple of housing (J). Wiring will protude out of the
top extenion tube (I).
5. If removed, guide wiring through center hole of loop (H) and thread loop (H) onto top
threading opening of extension tube (I). Thread collar (E) down hang straight (F) until
collar (E) rest on loop of hang straight (F). Place center hole of canopy (D) over hang
straight (F) and slide canopy (D) down hang straight (F) and let rest on collar (E).
6. Lift xture to “J BOX” and guide wiring through center hole of threaded nipple (C).
7. Make proper electrical connection. A licensed electrician is recommended.
8. Connect the grounding wire (silver) from the xture to the grounding wire in the outlet
box (copper, green, or silver). Connect the black wire of the xture (or smooth side of
the wire) to the black wire in the outlet box. Connect the white wire of the xture (or
rough side of the wire) to the white wire in the outlet box.
9. Thread hang straight (F) onto threaded nipple (C). Hold canopy (D) tightly against the
ceiling. Thread collar (E) up hang straight (F) to secure position of canopy (D).
10. Install thirty (30) Type B, maximum 25 watt bulbs into the sockets. Round candelabra
(Type B) bulbs are recommended.
Caution when using a wall dimmer: To avoid a risk of re do not exceed
the maximum wattage output of the dimmer. A dimmer rated at least 750 watts is
recommened for this xture when using 25 watt bulbs.
**********************************************************
Warning: If any special control devices are used with this xture,
follow the instructions carefully to assure full compliance with N.E.C.
requirements. If there are any questions, contact a qualied electrical
contractor.
**********************************************************
**IT IS RECOMMENDED THAT A CERTIFIED LICENSED
ELECTRICIAN INSTALL THIS FIXTURE**
