8 Configuration level
2013-04-01
100

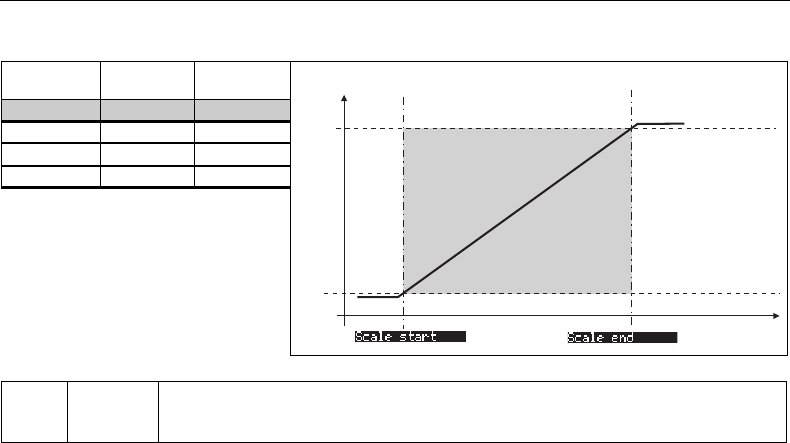

8.5.6 Behavior when leaving the scaling range
The standard signal range of the analog output is limited as follows according to the recommendation of Namur NE 43:
Signal type
Lower
limit
Upper
limit
0: 4to20mA 3.8 mA 20.5 mA
1: 0to20mA 0mA 20.5 mA
2: 2to10V 1.8 V 10.2 V
3: 0to10V 0V 10.2 V
k Factory setting
V
Caution The analog output is not part of the safety function.
Measured value
Standard signal
for analog output
4 mA
20 mA
3.8 mA
20.5 mA
