1

2

3

4

5

6

7

8

9

P5

3° INCLINATION

P13

Soft terminal

Hard terminal

A

A

B

B

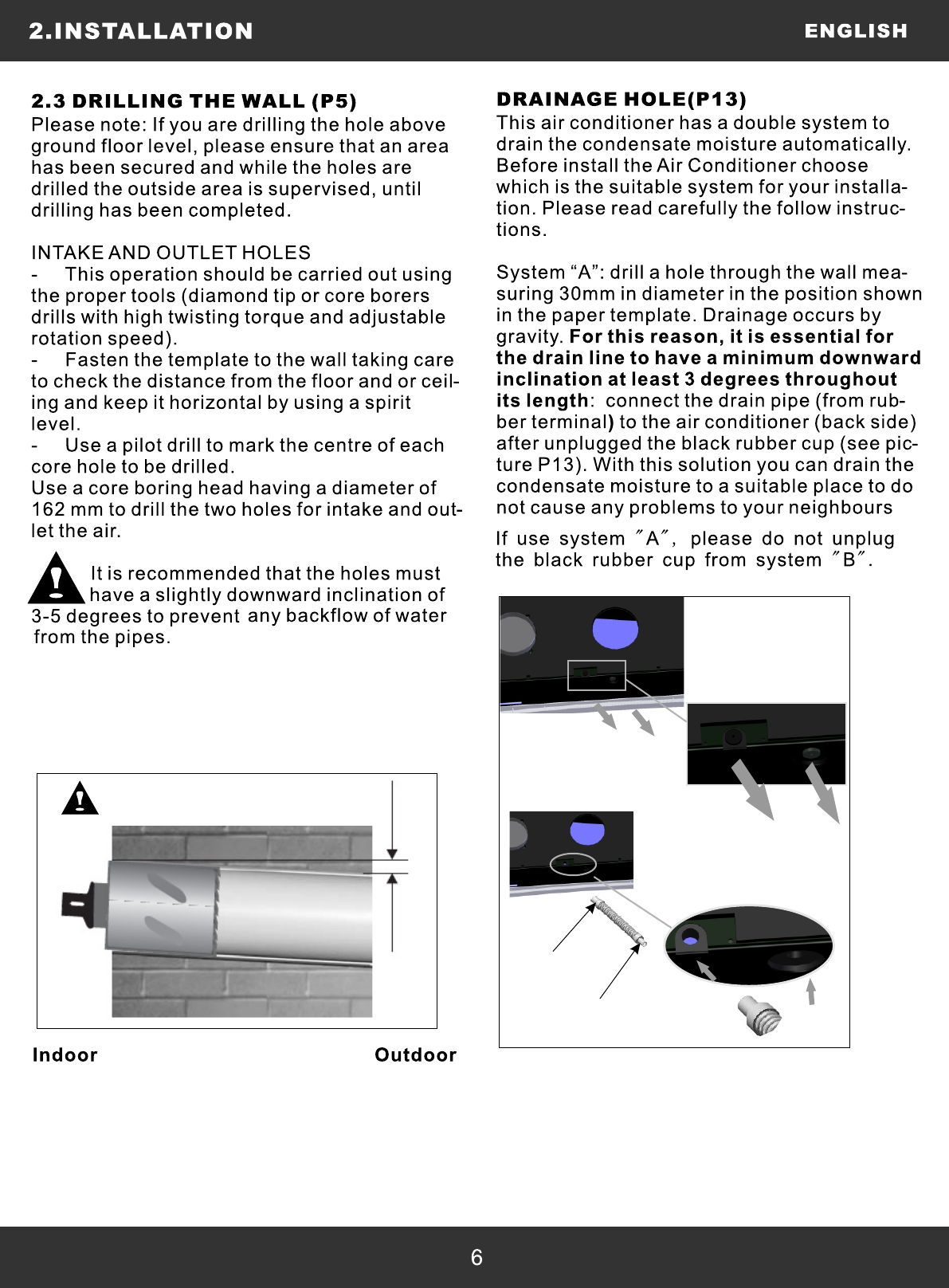

System "A" is more common use , and the

discharge pipe go outside where there is

no problem to connect or to discharge it ,

this solution is OK for hot country and

normal cold temperature out side .

FRESH AIR HOLE

- For the fresh air hole, the diameter would be

52mm. It is optional for the customer.
