2.INSTALLATION

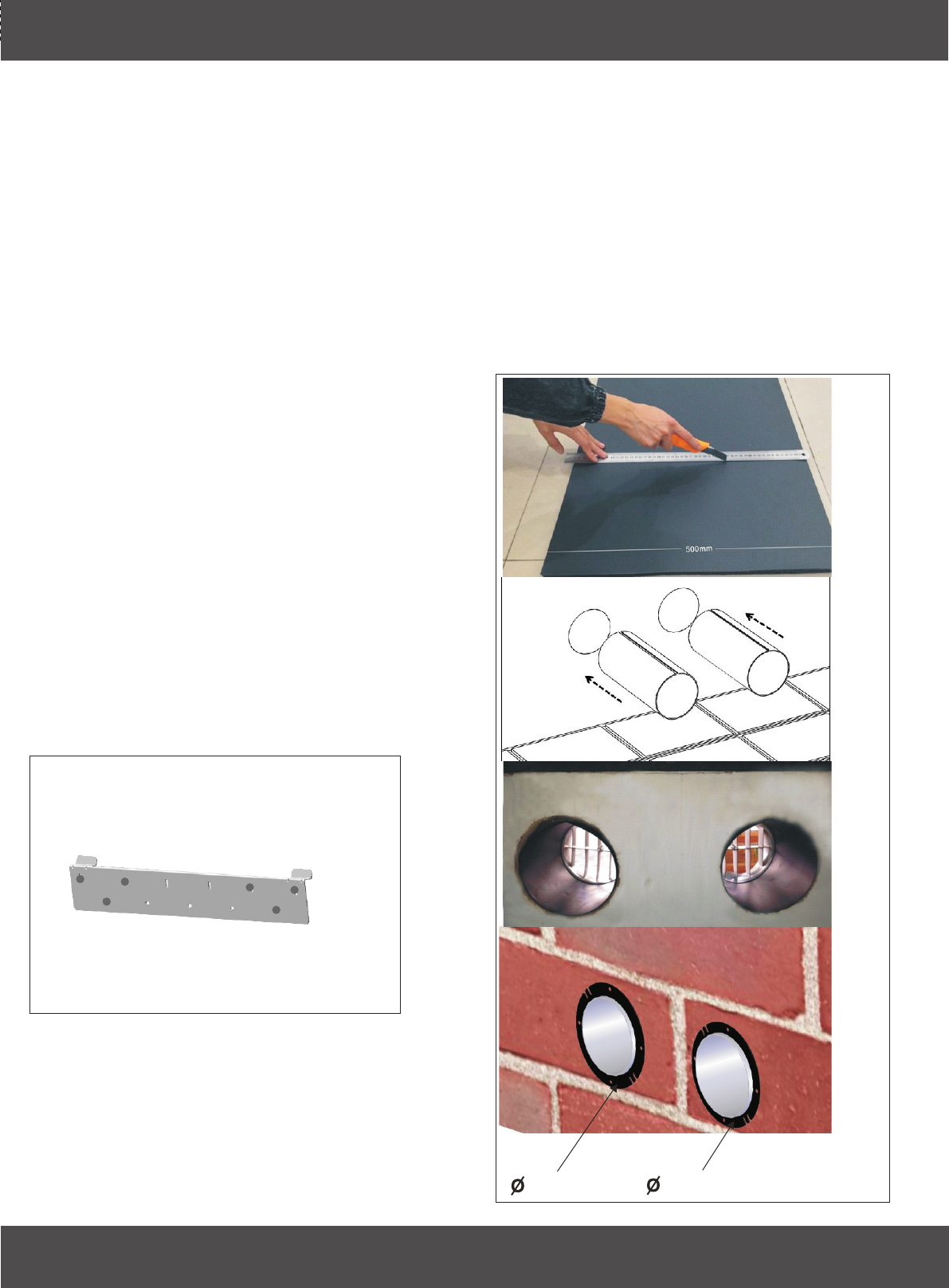

2.4 FASTENING THE BRACKET(P6)
Drill the holes for anchoring the fastening bracket
to the wall using preferably the 6 holes showed in
black on the paper template. If the wall is not
sturdy enough it is advisable to use extra anchor
bolts using the holes showed in grey on the paper
template.
The anchor bolts provided require a 8mm holes;
the wall should be inspected to determine if
provided bolts are useful or if it is necessary to
use a different anchorage. The manufacturer
is not liable in case of underestimation of the
structural consistency of the anchorage made
at the time of installation.
2.5 INSTALLATION OF THE PIPES
(P20)
After drilling the holes, the plastic sheet supplied
with the air conditioner need to be fitted through
them.
Measure the depth of the wall and cut supplied
plastic sheet.
Roll the sheet and insert it into the hole, paying
attention to the joint line, which must be always
upper position. Remember that the sheet must
0
have the same inclination of the holes(min 3 ).
Insert the rings into the holes.
7
System “B”: in case of impossibility to install the
drainage pipa as showed on “A” system, please
use system “B” to drain the condensate moisture
to a suitable place.
If use system “B”, please do not unplug the black
rubber cup from system “A”.
Usually “B” hole is used in the installation when
the outside temperature is very low, and in this
way we prevent no ice in the discharge water
pipe. This solution is used also to be more easy
for the installer to connect the internal drainage
pipe when he don’t want to see the pipe from
outside.
P6
P20
150mm ring
160mm ring
