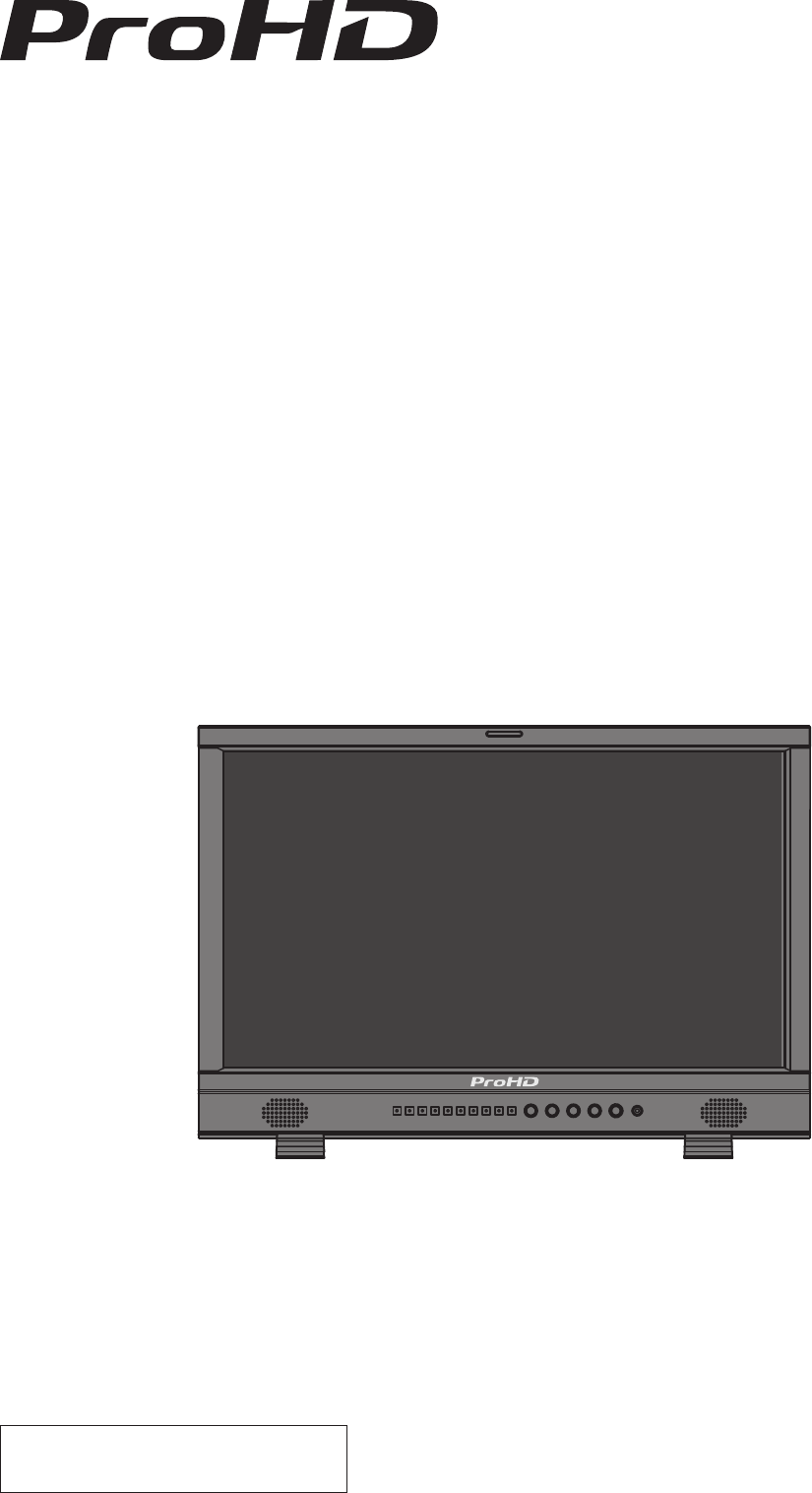

MULTI FORMAT LCD MONITOR DT-N24F INSTRUCTIONS For Customer Use: Please read the Instruction Manual carefully and retain this information for future reference. Version: V1.0.
Safety Precautions The lightning flash with arrowhead symbol, within an equilateral triangle is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.
Safety Precautions (cont.) Do not attempt to service this product yourself, as opening or removing covers may expose you to dangerous voltages and other hazards. Refer all service to qualified service personnel. Do not use the product for a long time if the sound is distorted. • When the product is left unattended and unused for a long period of time, unplug it from the wall outlet and disconnect the cable system. • Do not overload wall outlets, extension cords, or convenience or electric shock.
Safety Precautions (cont.) IMPORTANT SAFETY INSTRUCTIONS 1) 2) 3) 4) 5) 6) 7) 8) 9) 10) 11) 12) 13) 14) 15) 16) 17) Read these instructions. Keep these instructions. Heed all warnings. Follow all instructions. Do not use this apparatus near water. Clean only with dry cloth. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.
Table of Contents Safety Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 IMPORTANT SAFEGUARDS 2 Operating Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 Caution for use of the product in the high temperature Maintenance 4 4 Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation Do not rest your arm on the monitor or lean against the monitor. Do not touch the LCD panel when installing the monitor. Be sure to install the monitor securely to prevent the monitor from falling over, which may cause damage to the monitor or injury. To install the monitor on a shelf or any other suitable surface using screws 1 Lay the monitor on a cloth with the LCD panel facing down to prevent the LCD panel from being damaged.
Index of Parts and Functionos Rear panel IN 1 Y RS-485 2 OUT Pb Pr GPI OUT IN CVBS 1 RS-232C VGA-IN OUT IN HDMI OUT1 IN1 OUT2 IN2 3 4 5 6 3G/HD/SD-SDI 9 R L 10 AUDIO-IN 7 Firmware upgrade USB 8 1 REMOTE terminal Terminal for controlling the monitor by an external control ( “External Control” on page 17 ). 2 Y / Pb / Pr (IN) terminals (BNC) 3 CVBS terminals (BNC) Input (IN) and output (OUT) terminals for the composite signals.
Index of Parts and Functionos (cont.) Front panel Tally lamp This lamp is controlled by the tally function of the Make contact terminal. ( External Control on Page 17.) • You can select the color of the tally lamp from "Green", "Red", or "Yellow". 4 SDI1 1 1 SDI2 HDMI ANALOG F1 F2 2 F3 3 F4 WFM 6 DISP MENU/ENTER 5 8 BRIGHT CONTRAST SATURATION POWER 7 PHONE 9 Speaker: For SDI/HDMI embedded audio and analog audio monitoring.
Showing Input Signals Volume Adjustment 1 When no menu screen is not displayed, revolve the “VOLUNE MENU/PUSH”button 2 Clockwise revolve “VOLUME MENU/PUSH” knob to volume up, and anticlockwise revolve to volume down. The volume value range is 0-31. 3 The “Volume” screen disappears automatically if no operations are made for 3 seconds. Volume 15 On the Information Display (1) (2) TC：00:15:13:07 CAMERA 1 1 Time code (SDI) (3) Under SDI input, it can display Time code.
The Operation Procedure 1 2 Press the MENU button to display the Main Menu 3 Revolve “VOLUME MENU/PUSH” to select the item which needed to adjust, press “VOLUME MENU/PUSH”, the selected item and its parameters will be highlighted in yellow. 4 5 Revolve “VOLUME MENU/PUSH” to change the selected item’s parameter, press “VOLUME MENU/PUSH” to apply and save the settings.
Main Menu Picture Function Setting for the picture quality. Item Exit Contrast Brightness Saturation Sharpness Hue Backlight To do Return Main Menu Adjusts the contrast of the display. Adjusts the brightness of the display. Adjusts the saturation of the display. Adjusts the sharpness of the display. Adjusts the hue of the display. Adjusts the backlight of the display.
UMD Setting UMD control parameters (TSL UMD Protocol V3.1/4.0, provided by Television System LTD.
Audio Setting Setting for the audio meters and channel selection Item Exit Audio Bar To do Return Main Menu Display setting Setting value On、 Bar Frame : Off Bar Frame : On Bar Frame*1 Display setting On: Displayed, Red -09 On、 Yellow -20 M U T E Green MMM UUU TT T EEE -48 1 2 3 4 5 6 7 8 1 2 3 4 5 6 7 8 L -04DB R -06DB Bar Position Top Right、Bottom Left、 Bottom Right、Top Left Bar Position setting Bar Blending setting Bar Blending Low、 Low: Set the background of the bar display gray Hi
Vector Setting for Vector scope and Histogram patterns Item Exit To do Return Main Menu Display setting Vector Vector Position Setting value 、On Bottom Right、Center、Top Left、 Top Right、Bottom Left Vector Position setting Vector Blending setting Vector Blending Vector Color Histogram Low: Set the background of the vector display gray High: Set the background of the vector display transparent.
Display Item Exit Waveform Audio Bar Vector Zebra Focus Assist Time Code Histogram False Color AFD H/V Delay R/G/B/Mono Color Bar Marker UMD Setting value To do Return Main Menu Display setting 、On Display setting 、On Display setting 、On Display setting 、On Focus Assist setting Display setting 、Blue、Red 、On Display setting 、On Display setting 、On Display setting 、On Display setting 、On R/G/B/Mono setting Display setting 、Blue Only、Red Only、Green Only、Mono 、On Display setting 、On Disp
*4, *5 Update Driver/ Kernel Operation steps: 2. Press “MENU/ENTER”, enter “Main Menu” - “System”, and select “Update Driver” or “Update Kernel”. 3. Set “Yes”, the monitor will upgrade automatically.
External Control Using the GPI control About the external control This monitor has three external control terminals. RS-485 terminal (RJ-45): Controls the monitor with the RS-485 system. The terminal is to connect with TallyMan system of UMD application. RS-232C terminal (D-sub 9-pin): Controls the monitor with the RS-232C system (TallyMan) The terminal is to connect with TallyMan system of UMD application.
Troubleshooting Solutions to common problems related to the monitor are described here. If none of the solutions presented here solve the problem, unplug the monitor and consult an authorized dealer or service center. Symptom No power supply. Probable cause and corrective action press ”POWER” button Firmly insert the AC power plug. Select the correct input using the INPUT SELECT buttons. No picture with the power on. No sound. Turn on the power of the connected component and set the output correctly.
General Model name Type Screen size Aspect ratio DT-N24F Multi format LCD monitor Type 23.8 wide format 16:9 Horizontal/vertical frequency (computer signal) Compliant video signal format Format H: 64 kHz – 83 kHz V: 50 Hz – 75 Hz * Some signals within this frequency range may not be displayed “Available signals” on page 21 3G SDI: SMPTE-425M-A/B HD SDI: BTA S-004C, SMPTE292M, SMPTE-425M-A/B, SMPTE-274M, SMPTE-RP211, SMPTE-296M SD SDI: SMPTE-125M, ITU-R BT.
Dimensions Unit: mm (inch) DT-N24F 86 (3 3/8) 383.7 (15 1/8) 429.4 (16 7/8) 20 14(9/16) 135(5 5/16) 85.8 74.2 (3 3/8) (2 15/16) 405.4 (15 15/16) 34(1 5/16) 214.9 (8 7/16) 386.9 (15 3/16) 527 (20 3/4) 100 (3 15/16) VESA mounting holes (Size: M4, depth: 10 mm) 100 575.
Available signals The following signals are available for this monitor. Video signals No. Signal name Signal format shown in the status display Input terminal CVBS YPbPr VGA SDI HDMI 1 NTSC NTSC √ — — — — 2 NTSC 4.43 NTSC √ — — — — 3 PAL-M PAL √ — — — — 4 PAL PAL √ — — — — 5 PAL-N PAL — — — — — 6 SECAM SECAM √ — — — — 7 480/60i 480i — √ — √ √ 8 480/59.
Specifications (cont.) Computer signals (preset) Analog RGB input (COMP./RGB terminals) and DVI input (HDMI terminal): No. Signal name 1 2 3 4 5 6 7 8 VGA60 SVGA60 XGA60 WXGA(1280) WXGA+60*1 SXGA60*1 1080/60p*1 WXGA(1360) Resolution Horizontal Vertical 640 480 800 600 1024 768 1280 768 1440 900 1600 1200 1920 1080 1360 768 Frequency Horizontal (kHz) Vertical (Hz) 31.5 59.9 37.9 60.3 48.4 60.0 47.8 60.0 55.9 60.0 75.0 60.0 67.5 60.0 47.7 60.
MEMO 23
MULTI FORMAT LCD MONITOR DT-N24F This model is manufactured, warranted and supported by SWIT Electronics Co., Ltd. / SWIT Electronics USA, LLC, and distributed in North America by JVCKENWOOD USA Corporation. To obtain service or for further information, please contact: SWIT Electronics USA, LLC. Address: 3350 Scott Blvd. 61-02, Santa Clara, CA 95054 Toll free: 1 866 986-SWIT (7948) • Tel: 408 260-8258 • Fax: 408 228-8438 Email: info@swit.us • Website: www.swit.us SWIT Electronics Co., Ltd.
