Quick Setup Connections
Step 2 – Connecting Your Devices
Used to make video
connections with S-Video
VCRs, Camcorders and DVD
players.
S-Video Cable
Used to connect audio/video
devices like VCRs, DVD
players, stereo amplifiers,
game consoles, etc.
Component Cables
Composite Cables
Audio Cables
To make these connections, you will use plugs like the ones illustrated below.
Notes:
• These connections are examples.
• After you are finished connecting your devices, plug the power cord into the nearest power
outlet and turn on the TV.
• If you follow these diagrams and the television does not work properly, contact your local
cable operator.
• To connect a DVD player, see VCR Connection. A DVD player is optional
• If you have a satellite television system, refer to the satellite TV manual.

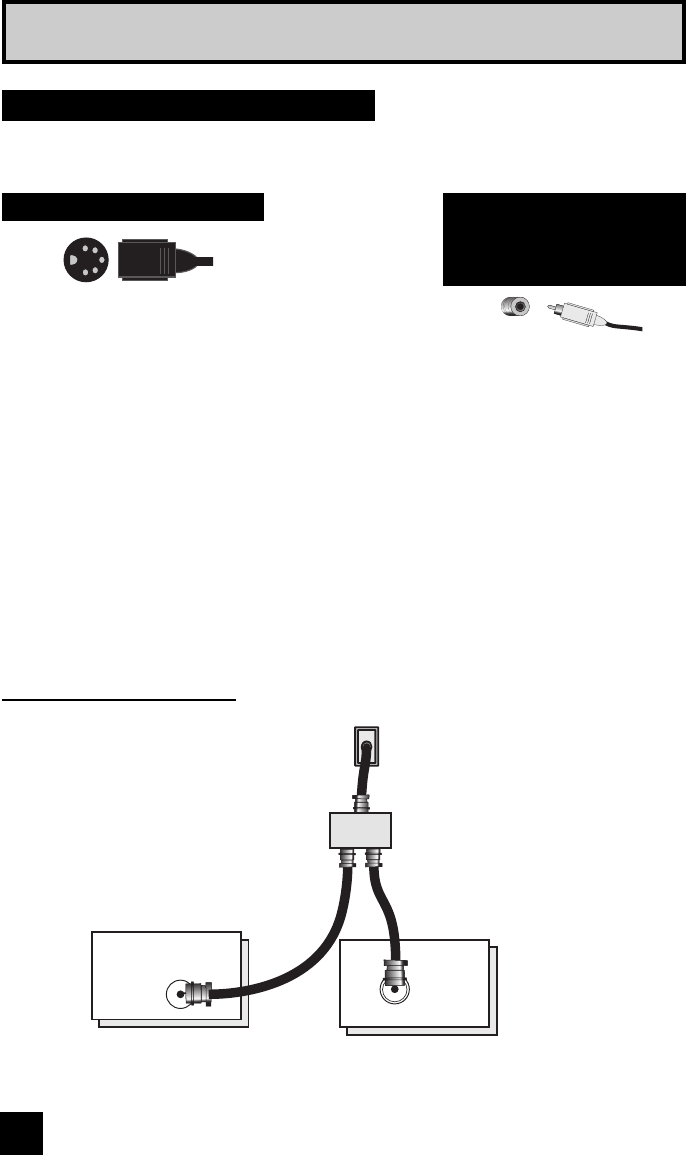

No VCR Connection
TV Rear Panel
ATSC
/DIGITAL CABLE IN
Coaxial Cable (Attachment)
Cable or Antenna
Output
Two-way Splitter
(Attachment)
75Ω
(VHF/UHF)
IN
OUT OUT
