Connections
• Connect VIDEO OUT/COMPONENT directly to the video
input of your TV. Connecting VIDEO OUT/COMPONENT
to a TV via a VCR may interfere with your viewing when
playing back a copy-protected disc. Your viewing may be
interfered when connecting VIDEO OUT/COMPONENT
to an integrated TV/VCR system.
Do not connect the AC power cord until all other
connections have been made.
Supplied accessories
Check to be sure that you have all the following items.
• FM antenna (x1)
• AM loop antenna (x1)
• Composite video cord (x1)
• Remote control (x1)
• Batteries (x2)
• AC plug adapter (x1) (Except for the Middle East)
If any item is missing, consult your dealer immediately.

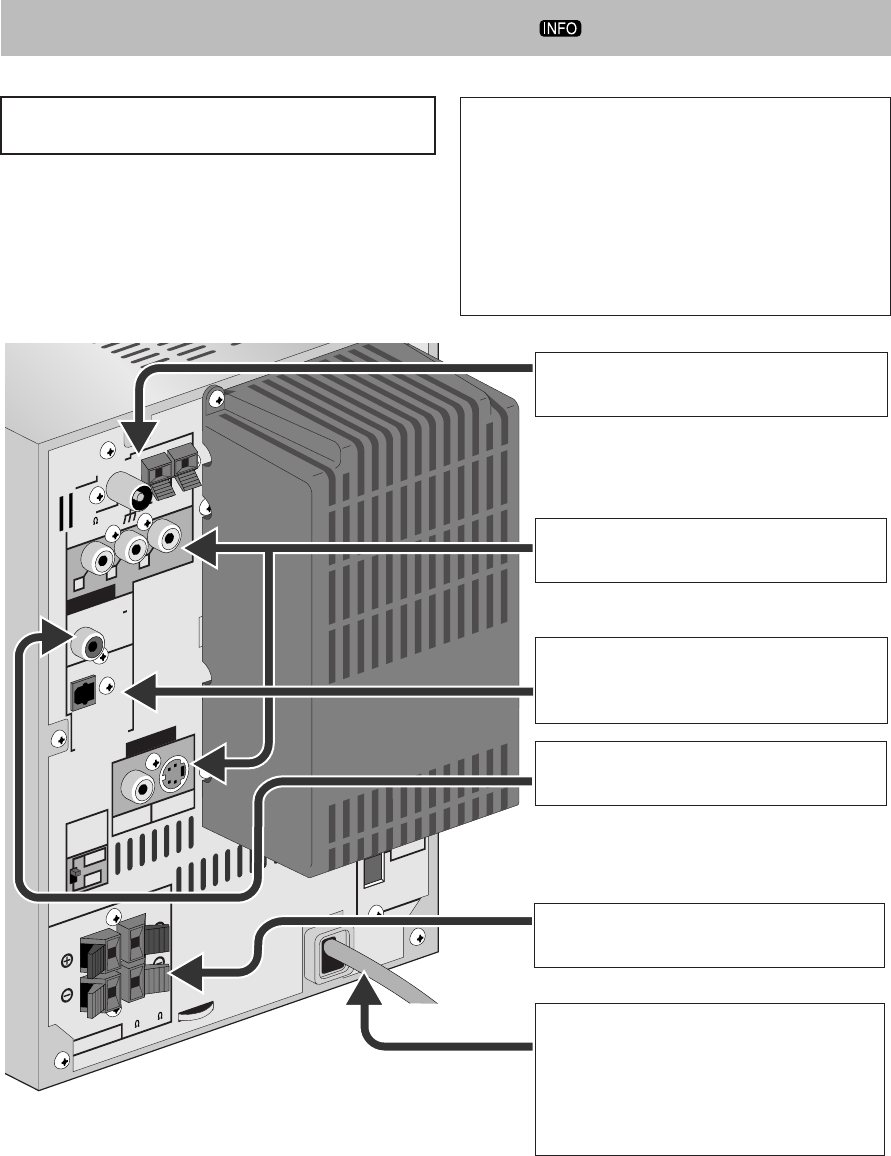

ANTENNA
SUB
WOOFER
OUT
DVD OPTICAL
DIGITAL OUT
SPEAKERS
COMPONENT
VIDEO OUT
FM
(
75
)
COAXIAL
AM
LOOP
Y
RIGHT
SPEAKER
IMPEDANCE
6
–
16
LEFT
P
B
P
R
AM
EXT
PCM
/
STREAM
NTSC
VIDEO
OUT
SELECT
PAL
220V-
230V
VIDEO
S-VIDEO
127V
~ From AM/FM antenna
See page 4.
! From the digital input of digital audio
component such as CD recorder
See page 5.
Ÿ From the input of TV/monitor
See page 4.
@ From the speakers
See page 5.
⁄ From the powered subwoofer
See page 5.
¤ From a wall outlet
Plug the AC power cord only after all
connections are complete.
• If the wall outlet does not match the AC
plug, use the supplied AC plug adapter
(except for the Middle East).
