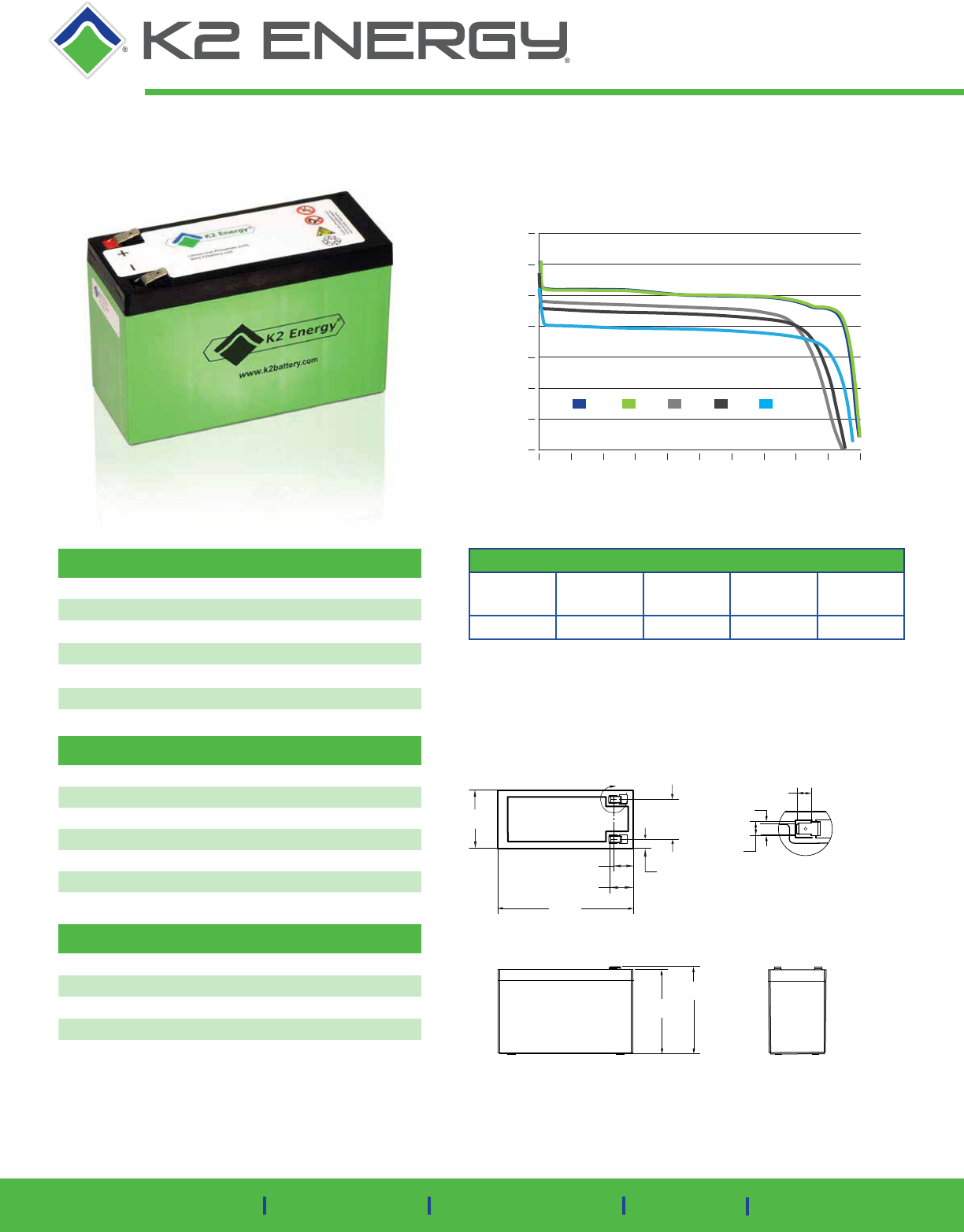

Data Sheet

K2B12V10 Constant Current Time Profile @ 25°C
C/20
(0.48 A)
C/2
(4.8 A)
1C
(9.6 A)
2C
(19.2 A)
2.6C
(25 A)
20 hrs 2 hrs 60 min 29 min 24 min
Volts (V)
Capacity (Ah)
K2B12V10EB Discharge Rates
DIMENSIONS:
64.3
A
DETAIL A
0.8 THICK BLADE
COMPATIBLE WITH FASTON
.250” CONNECTORS
44.5
10
21.5
26.2
151
6.40
7.62
8
97.3
94
*Cell balancing, low voltage cutoff, high voltage cutoff,
& short circuit protection
14
15
13
12
11
10
8
0.0 1.0 2.0 3.0 4.0 5.0 6.0 7.0 8.0 9.0 10.0
9
0.48A 4.8A 9.6A 19.2A 25A
K2 ENERGY SOLUTIONS INC 7461 EASTGATE RD HENDERSON NV 89011 702.478.3590 www.k2battery.com
SPECIFICATIONS
RECOMMENDED OPERATING CONDITIONS
MAXIMUM OPERATING CONDITIONS
Nominal Capacity @ C/5 (Ah) 9.6
Average Operating Voltage@ C/5 (V) 12.8
Weight (kg/lbs) 1.3 /2.87
Height (mm/in) 97.3 / 3.83
Width (mm/in) 64.3 / 2.53
Length (mm/in) 151 / 5.94
Protection Control Module*
Continuous Discharge (A) ≤ 9.6
Pulse Discharge (A) 30 Seconds 25
Charge Current (A) ≤ 4.8
Charge Voltage Cutoff (V) 14.6
Discharge Voltage Cutoff (V) 10.0
High Operating Temp (ºC) 60
Low Operating Temp (ºC) -20
Continuous Discharge (A) ≤ 25
Pulse Discharge (A) ≤2 seconds 40
Charge Current (A) ≤ 9.6
Max Modules in Series 4
Performance may vary depending on application.
All specifications and operation conditions are subject to change without
notice. This data is for evaluation purposes only. No guarantee is intended
or implied by this data. MDS. P0006 REV- E 2019
UNDOT 38.3 Tested | RoHS Compliant
HIGH CAPACITY K2B12V10EB ENERGY BATTERY DATA
PN K2B12V10EB
