Data Sheet

Executing Engineering Excellence

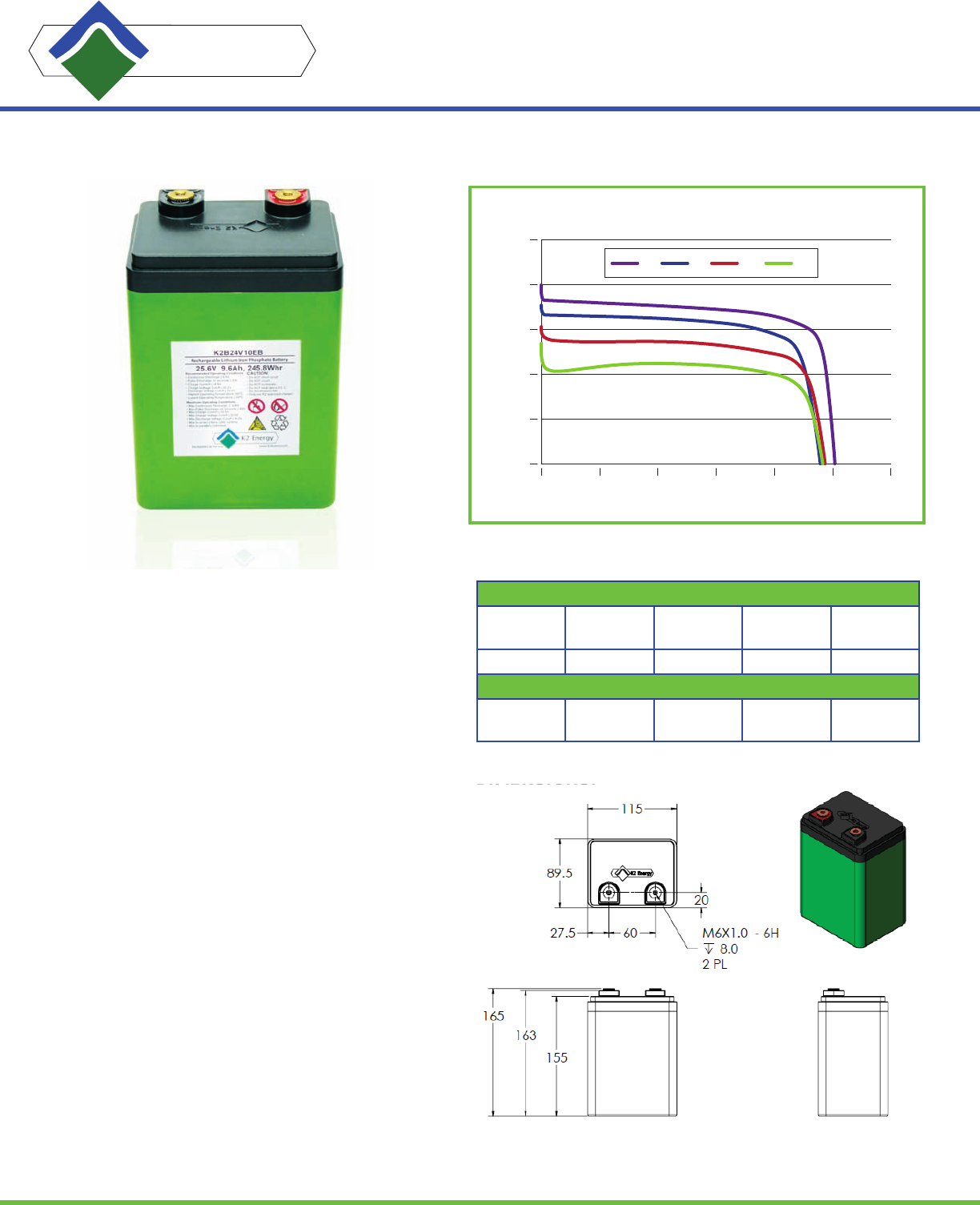

HIGH CAPACITY K2B24V10EB ENERGY MODULE DATA
DIMENSIONS:
SPECIFICATIONS:
Nominal Capacity @ C/5 (Ahr) ............................. 9.6
Average Operating Voltage @ C/5 ..................... 25.6
Weight (kg) ........................................................... 2.5
Height (mm) ......................................................165.0
Width (mm) ........................................................ 89.5
Length (mm) .....................................................115.0
RECOMMENDED OPERATING CONDITIONS:
Continuous Discharge (A) ................................. ≤9.6
Pulse Discharge (A) 30 seconds ........................... 25
Charge Current (A) ............................................. ≤4.8
Charge Voltage Cutoff (V) ................................... 29.2
Discharge Voltage Cutoff (V) ............................. 20.0
High Temp Operating Temp (°C) ............................ 60
Low Temp Operating Temp (°C) ........................... -20
MAXIMUM OPERATING CONDITIONS:
Continuous Discharge (A) ................................... ≤24
Pulse Discharge (A) ≤2 seconds .......................... 40
Charge Current (A) ............................................. ≤9.6
Charge Voltage Cutoff (V) .................................. 32.8
Discharge Voltage Cutoff (V) ............................. 16.0
Max Module In Series .............................................. 1
Performance may vary depending on application. All specifications and operation conditions
are subject to change without notice. This data is for evaluation purposes only. No guarantee
is intended or implied by this data.
1125 American Pacific Drive, Suite C • Henderson, NV 89074 • 702.478.3590 • www.K2battery.com
K2 Energy
®
K2B24V10 Constant Current Time Profile @ 25°C
C/20
(0.48 A)
C/2
(4.8 A)
1C
(9.6 A)
2C
(19.2 A)
2.6C
(25 A)
20 hrs 2 hrs 60 min 29 min 24 min
ADVANCED FEATURES
Short Circuit
Protection
High Voltage
Cut Off
Low Voltage
Cut Off
Cell
Balancing
Compatible With
Most 24V Lead
Acid Chargers
Volts (V)
Capacity (mAh)
K2B24V10 Discharge Curves at Different Rates
2000
19
21
23
25
27
29
1A
4000 6000 8000 10000 12000
5A 15A 25A
DIMENSIONS:
