KPS-525 Power Supply

Installation Guide

Page 1 of 2 P/N: 01510-001 Rev. A

Section 1 – Wiring and Layout Diagram

Section 2 – Specifications and Cable Requirements

Section 3 – Keri Contact Information

NOTE: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this

device may not cause harmful interference, and (2) this device must accept any interference received, including

interference that may cause undesired operation.

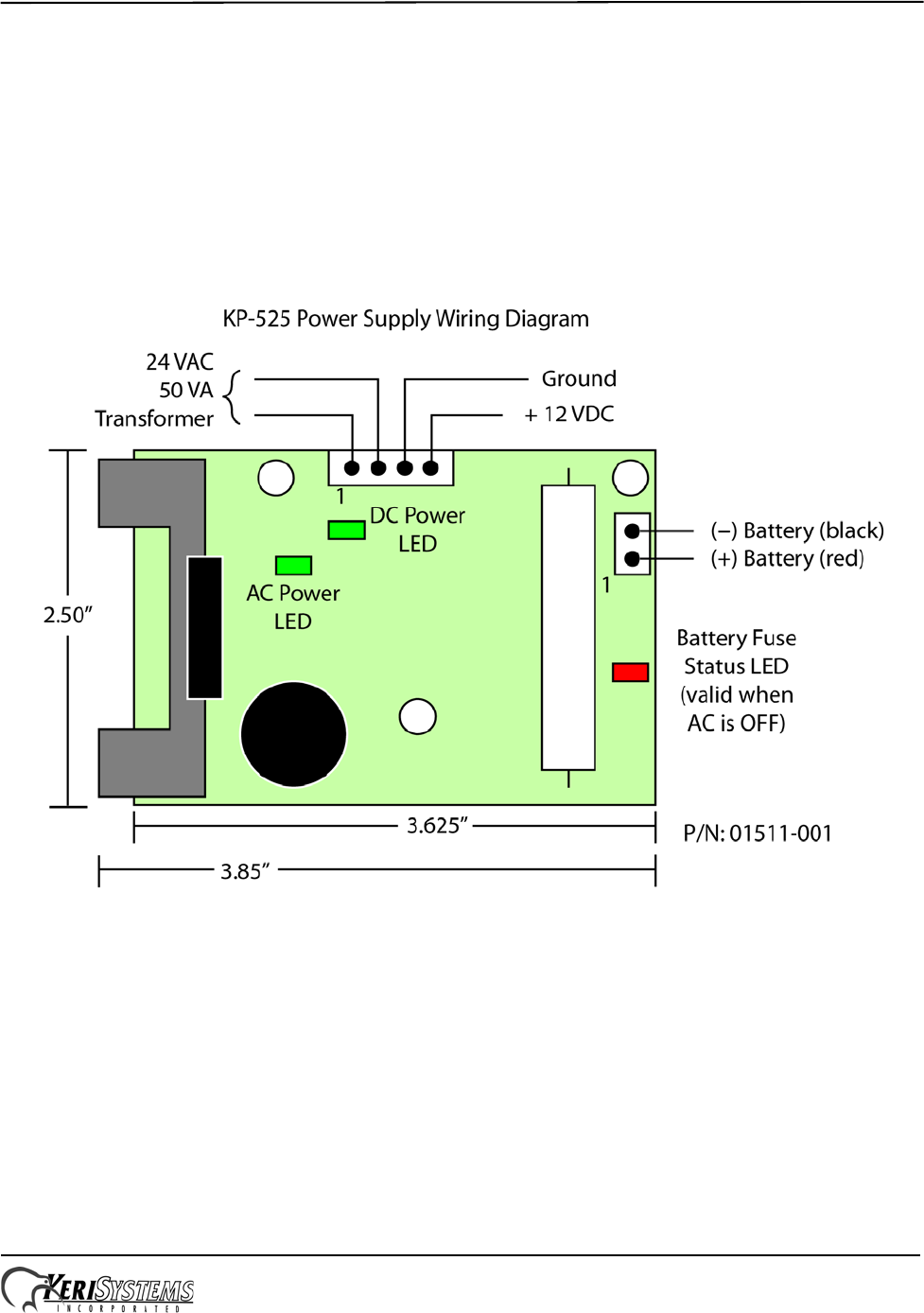

1.0 Wiring and Layout Diagram

1.1 KPS-525

2.0 Specifications

2.1 Dimensions

•PCB

- 2.50” inches tall by 3.85” inches wide (including heat sink) by 1.6” inches deep (including heat sink, but not

including wiring connectors)

- 6.4 cm by 9.8 cm by 4.1 cm

•Enclosure

- 8.00 inches tall by 7.00 inches wide by 2.75 inches deep

- 20.32 cm by 17.78 cm by 6.98 cm

PAGE 1
KPS-525 Power Supply Installation Guide Section 1 – Wiring and Layout Diagram Section 2 – Specifications and Cable Requirements Section 3 – Keri Contact Information NOTE: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. 1.0 Wiring and Layout Diagram 1.1 KPS-525 2.
PAGE 2
KPS-525 Power Supply Installation Guide 2.2 • Power Requirements 24 VAC 50 VA Class 2 Transformer 2.3 • • • Output 13.8 VDC @ 2.5 A (typical) 13.8 VDC @ .50 A (battery float charge) 14.2 VDC @ 2.0 A (DC output to NXT) 2.4 • Operating Conditions 32°F to 150°F (0°C to 60°C) – 0% to 90% Relative Humidity, non-condensing 2.
