Chapter 2: Installaon
16
DVR User’s Manual

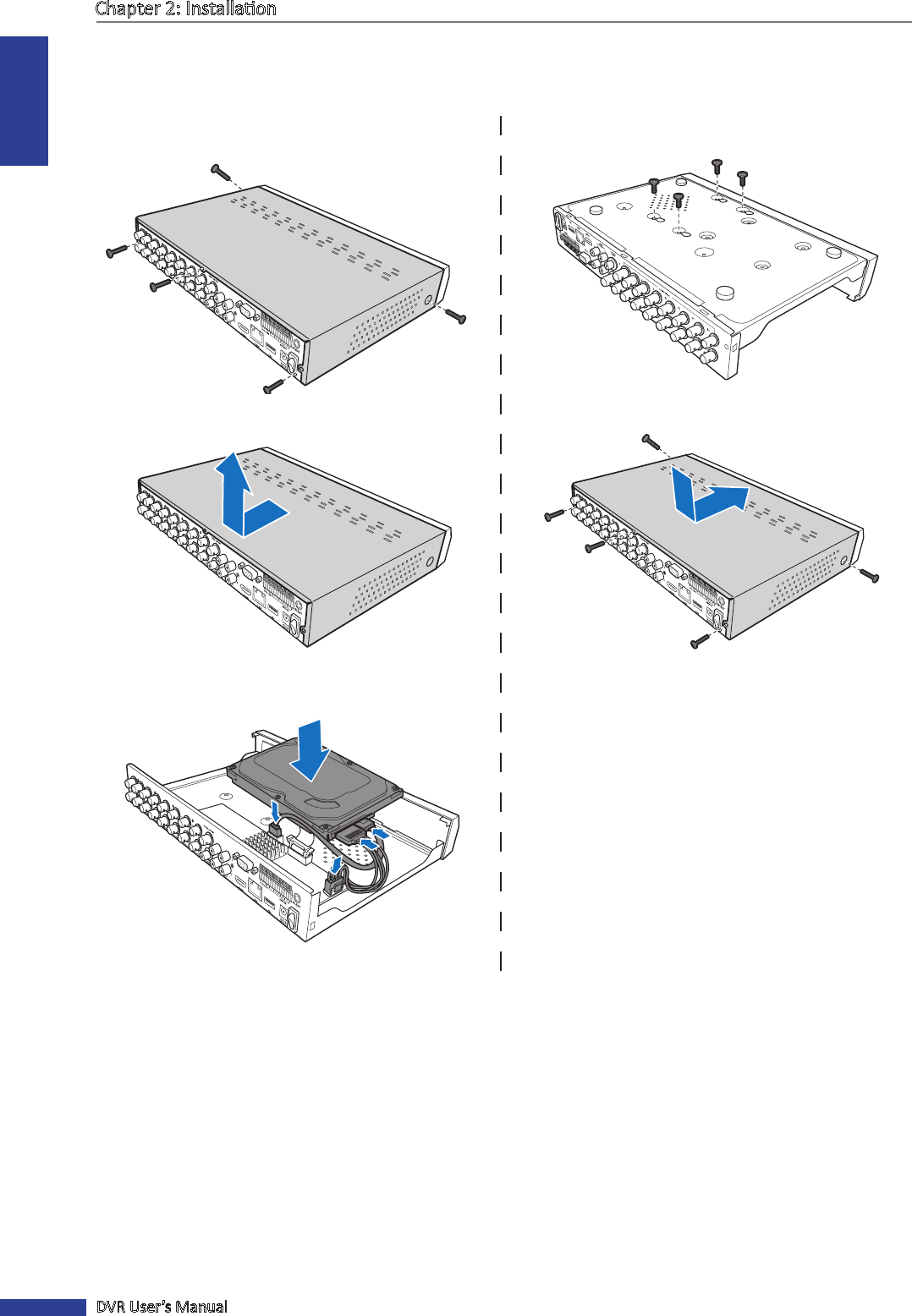

2.1.2 Installing HDD on 16-Channel DVR
The 16-channel DVR supports supports one 3.5” SATA hard disk drive. To install the HDD, follow the steps below.
4 Align the HDD to the holes on the DVR case and
secure the HDD using the four (4) supplied screws.
5 Aach the cover and the screws back in place.
1 Loosen the screws on the le, right, and rear sides as
shown.
2 Push back then li up the cover to remove it.
3 Connect the data and power cables to the hard disk
drive (HDD) and place the HDD on the DVR case.
