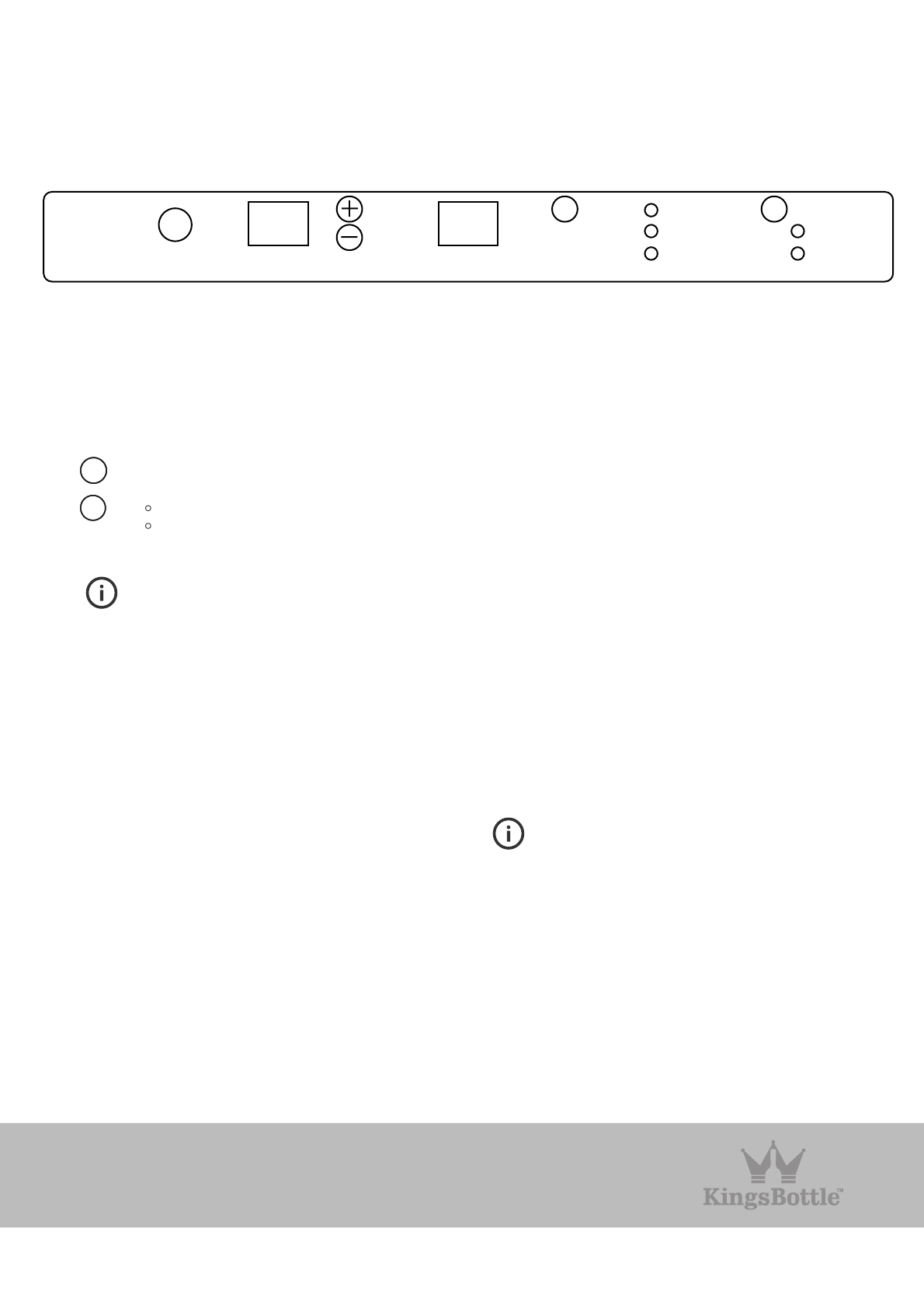

Each wine cellar includes an operating panel on the front of the unit.
This operating panel includes several features to operate and control
the temperature of both the upper and lower zones of the wine cellar.
The operating panel includes the following features:
ON/OFF: Turns the wine cellar power on or off.
TEMP. SET UPPER ZONE: Adjusts and displays, via LED, the desired
temperature and the actual temperature of the upper zone.
TEMP. SET LOWER ZONE: Adjusts and displays, via LED, the
desired temperature and the actual temperature of the lower zone.
TEMP.SET
TEMP.SET
UPPER LOWER
ON/OFF
LOCK
RED
WHITE
SPARKLE
LIGHT
SELECT
UPPER
LOWER
LIGHT: Turns the interior wine cellar light on or off.
TEMP.SET
TEMP.SET
UPPER LOWER
ON/OFF
LOCK
RED
WHITE
SPARKLE
LIGHT
SELECT
UPPER
LOWER
SELECT: Allows user to select to control the
UPPER or LOWER zone.
CAUTION:
BEFORE YOU START: The wine cellar should be placed in a location
where the ambient temperature is between 32 - 100 degree
Fahrenheit. If the ambient temperature is above or below this range,
the performance of the unit may be affected. For example, placing your
unit in extreme cold or hot conditions may cause interior temperatures
to fluctuate.
SETTING THE TEMPERATURE CONTROL
IMPORTANT: IN ORDER FOR THIS UNIT TO FUNCTION AT OPTIMUM
LEVEL, THE LOWER COMPARTMENT SHOULD BE SET AT LEAST
4-DEGREES (F) HIGHER THAN THE UPPER COMPARTMENT.
1. Make sure power cord is connected to a properly grounded
outlet.
2. Turn Power ON.
3. Press the “SELECT” button to choose the “UPPER” or “LOWER”
zone. Each zone is independently controlled.
•
Upper Zone: The temperature setting can be adjusted
between 41°F to 60°F
•
Lower Zone: The temperature setting can be adjusted
between 45°F to 64°F
4. Set the temperature of the Upper Zone or Lower Zone as you
desire by pushing the UP (+) or DOWN (-) button. When you push
the two buttons for the first time, the LED readout will show the
original temperature set at previous time. (NOTE: The
temperature preset at the factory is 41°F for Upper Zone and
45°F for Lower Zone.)
5. The temperature that you desire to set will increase 1°F if you
push the UP(+) button once, and alternatively will decrease 1°F if
you push the DOWN (-) button once.
6. Once you have set the desired temperature, wait 5 seconds. The
temperature shown in the both Upper and Lower zone display
panels will automatically switch to show the actual temperature
inside the unit. The actual temperature will always be shown until
the next time you press the UP (+) or DOWN (-) button to change
the temperature settings.
7. NOTE: The desired temperatures may fluctuate depending on
whether the interior light is ON or OFF and depending on the
orientation of the bottles.
PART V!
TEMPERATURE SETTINGS FOR WINE SERVICE
1. Different varietals of wine require different temperature settings.
The recommended temperature ranges for serving different
varietals of wine are listed below. Your wine cellar will indicate
when you have set the upper/lower zones to the below
temperature ranges.
•
Red Wines: 52-64°F
•
White Wines: 44-51°F
•
Sparkle Wines: 41-43°F
2. If you set the upper or lower zone between 52-64°F, the LED light
next to “RED” will light up, indicating that you are within the
recommended range for serving Red Wines.
3. If you set the upper or lower zone between 44-51°F, the LED light
next to “WHITE” will light up, indicating that you are within the
recommended range for serving White Wines.
4. If you set the upper or lower zone between 41-43°F, the LED light
next to “SPARKLE” will light up, indicating that you are within the
recommended range for serving Sparkle Wines
CAUTION:
1. In the event of a power interruption, all previous temperature
settings will be automatically saved and each compartment will
return to the previous temperature setting.
2. If the unit is unplugged, loses power, or is turned off, you must
wait over 6 minutes before restarting. Within this 6 minutes,
compressor protect itself and will not start even power ON again
3. When you use the wine cellar. for the first time or restart the wine
cellar after having been shut off for a long time, there will be a few
degrees variance between the temperature you select and the
one indicated on the LED readout for the first few hours of
operation. After a few hours of operation, the temperature will
normalize to the displayed temperature.
