2.4GHz Digital AV Sender Manual V1.

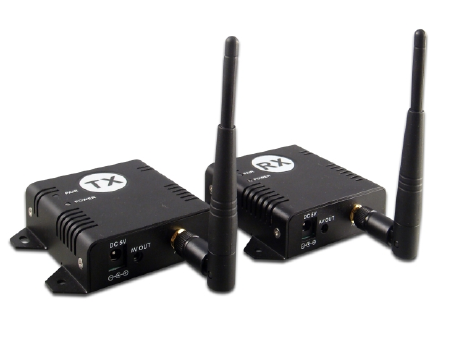

A.What is inside the Box? H.Specifications Please check the following items inside the box for 2.4Ghz Digital AV sender, and contact your dealer if anything is missing: Transmitter: Operating Frequency Band 2403MHz~2478MHz Maximum Transmit Power 100mW Modulation 16QAM/QPSK/BPSK Video Input Level 1V p-p ＠ 75 ohm Audio Input Level 1V p-p ＠ 600 ohm (STEREO) Antenna Omni-directional Power consumption 1.9W Power supply 5V/1.2A Dimension 76mm*73mm*24mm Weight 82g 1.
F.Use Notics B.Introduction 1.Be sure the transmitter and the receiver were connected to the equipment correctly (e.g. Connect the transmitter to the camera, and the receiver to the TV or DVR). 2.When DC plug is pulled out from transmitter or receiver, it needs to wait for a few seconds to insert it again. 3.Adjust antenna to decrease interference. (vertical or horizontal) 4.In most situations, one pair has a better distance up to 150 meter(open site).
D.Transmitter and Receiver Wire Connection E.Pairing the transmitter and receiver Before shipment of these products, they have been matching by ID code, you can immediately instantly use. If wants to re-pair them, you have to follow the instructions as below: 1.Power on the transmitter and receiver by inserting the power adaptor jack. 2.Press the pair button of transmitter or receiver and not release until the power LED begin to flash, then release the pair button. 3.
