User's Manual

A.What is inside the Box?
Please check the following items inside the box for 2.4Ghz Digital AV sender,
and contact your dealer if anything is missing:
1. Products body
2. Accessory: for receiver or transmitter

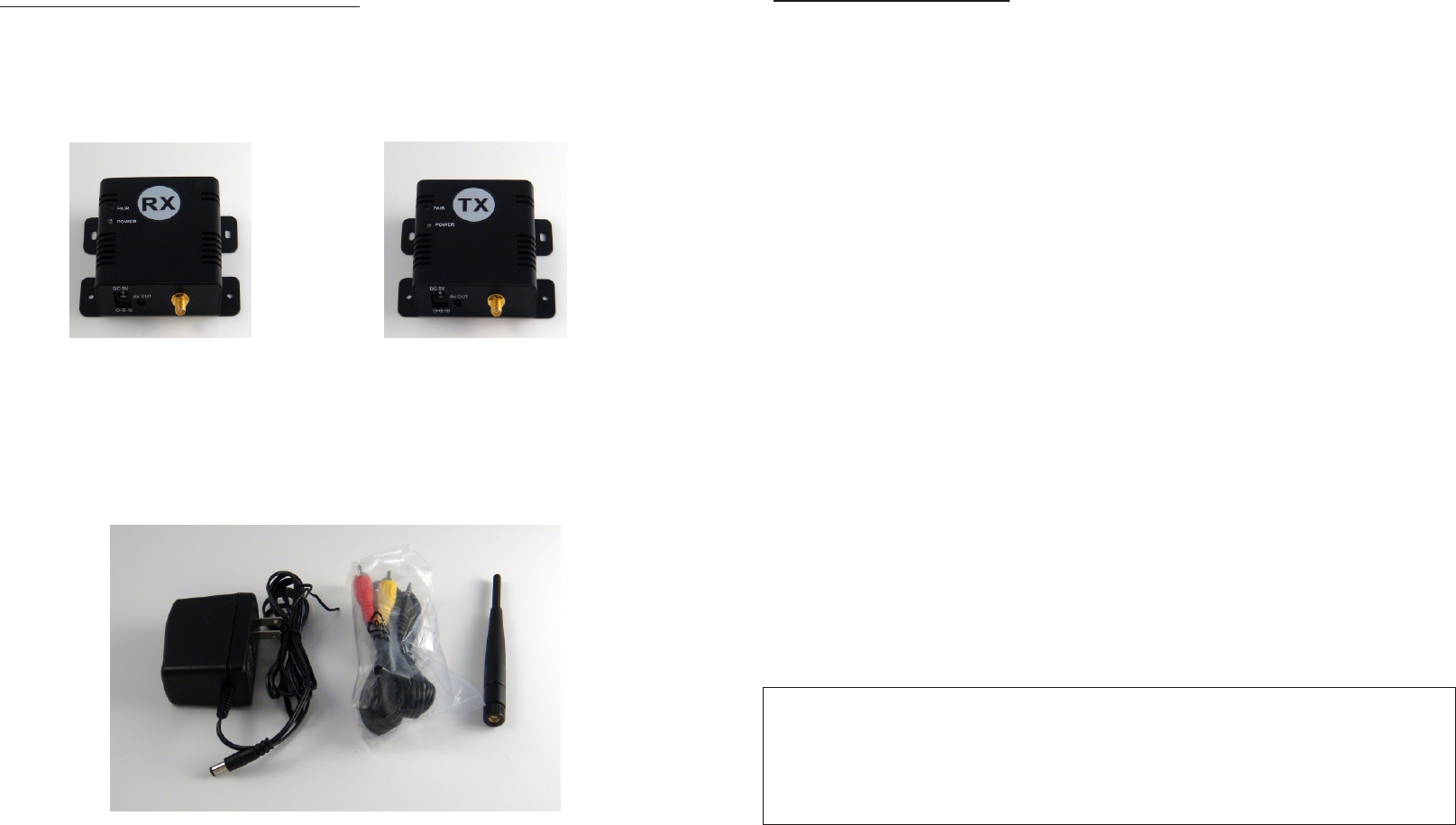

Refer to the following photo, from left to right:
Antennas x 2
AV cables x 2(3RCA plug to 3RCA plug)
Power Adaptor x 2(100V ~ 240V AC, DC 5V/1.2V in Jack)
This user manual
or
Receiver x 1 Transmitter x 1
5V Adaptor AV Cables ANT
-2-
Transmitter:
Operating Frequency Band 2403MHz~2478MHz
Maximum Transmit Power 100mW
Modulation 16QAM/QPSK/BPSK
Video Input Level 1V p-p ＠ 75 ohm
Audio Input Level 1V p-p ＠ 600 ohm (STEREO)
Antenna Omni-directional
Power consumption 1.9W
Power supply 5V/1.2A
Dimension 76mm*73mm*24mm
Weight 82g
Receiver:
Operating Frequency Band 2403MHz~2478MHz
Receiver Sensitivity -85dBm
Video Output Level 1±0.2V p-p ＠ 75 ohm
Audio Output Level 1±0.2V p-p ＠ 600 ohm (STEREO)
Antenna Omni-directional
Power consumption 1.9W
Power supply 5V/1.2A
Dimension 76mm*73mm*24mm
Weight 82g
System:
Transmission channels 26 channels auto selection
Video bit rate up to 12 Mbps
Random ID code up to 4 million sets
Video resolution 720 x 480 @ 30 fps (NTSC) or 768 x 576 @25 fps (PAL)
Operational range up to 150 meters (line of sight)
Remote control range up to 150 meters (line of sight)
▪ All specification subject to change without notice
H.Specifications
-7-
Notice : The changes or modifications not expressly approved by the party responsible
for compliance could void the user' s authority to operate the equipment.
IMPORTANT NOTE: To comply with the FCC RF exposure compliance requirements,
no change to the antenna or the device is permitted. Any change to the
antenna or the device could result in the device exceeding the RF exposure
requirements and void user' s authority to operate the device.
